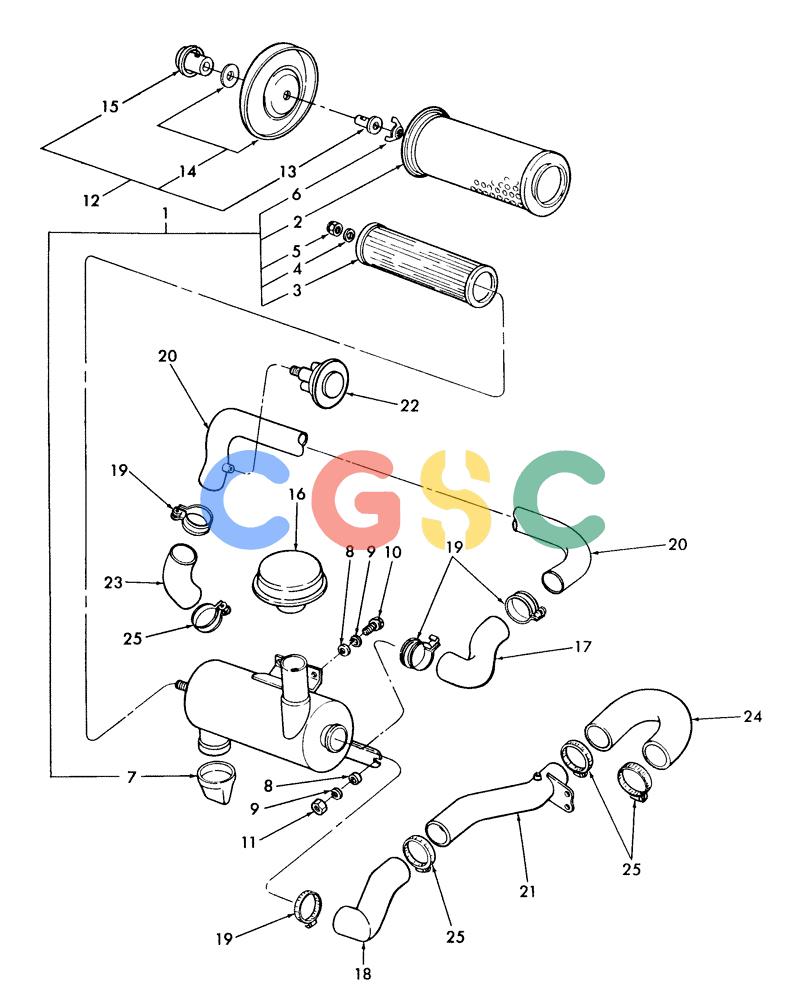

纽荷兰零件查询(BSD442) - FORD 4 CYL ENGINE (1/81-) (04S01) - AIR CLEANER ASSEMBLY New Holland Constructuion

作者：广数供应链运营团队

浏览数：

时间：2025-01-21 15:54:59

工程机械零件图册查询

Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

Pos.	Part No	Qty	Parts name	Comments
1.	E0NN9600LA12M	[1]	AIR CLEANER	BASAssy., BSD 442, Start Year: 01-JAN-81
1.	E0NN9600VB12M	[1]	AIR CLEANER	BASAssy., BSD 444,444T, Start Year: 01-JAN-81
1.	E0NN9600BD12M	[1]	AIR CLEANER	BASAssy., BSD 442, Start Year: 01-JAN-81 Superseded by part number: 83929105
1.	E0NN9600EF12M	[1]	AIR CLEANER	BASAssy., BSD 444, Start Year: 01-JAN-81 Superseded by part number: 82981249
1.	E1NN9600CB12M	[1]	AIR CLEANER	BASAssy., BSD 444T, Includes: Ref. 2 thru 7, Start Year: 01-JAN-81 Superseded by part number: 81870822
2.	D6NN9601B	[1]	AIR FILTER	BASElement Assy., Outer, BSD 442, Start Year: 01-JAN-81 Superseded by part number: E9NN9B618AA
2.	E9NN9B618AA	[1]	AIR FILTER	Element Assy., Outer, BSD 442, Start Year: 01-JAN-81
2.	81866927	[1]	AIR FILTER	BASElement Assy., Outer, BSD 444, 444T, Start Year: 01-JAN-81
3.	D6NN9R500B	[1]	AIR FILTER	FORElement Assy., Inner, BSD 442, Start Year: 01-JAN-81 Superseded by part number: 86525008
3.	D1NN9R500A	[1]	AIR FILTER	BASElement Assy., Inner, BSD 444,444T, Start Year: 01-JAN-81 Superseded by part number: 84493218
4.	81825838	[1]	SEALING WASHER	BAS, Start Year: 01-JAN-81
5.	280980	[1]	NUT,7/16"-14, GC	NHNut, Lock, GC, 7/16"-14, Start Year: 01-JAN-81
6.	33898S8	[1]	WING NUT	BASNut, Wing, 7/16"-14, Start Year: 01-JAN-81
7.	81870839	[1]	DUST VALVE	BASCollector, Dust, Start Year: 01-JAN-81 Superseded by part number: 383734R2
8.	83904166	[2]	WASHER,10.5mm ID x 30mm OD x 4mm Thk	BASM10.5 x 30 x 4 Thk, HDN, Start Year: 01-JAN-81
9.	140028	[2]	WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk	NHWASHER, LOCK, M10, Start Year: 01-JAN-81
10.	43140	[2]	BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8	NH, Start Year: 01-JAN-81
11.	100016	[2]	NUT,M10 x 1.5, Cl 8	NH, Start Year: 01-JAN-81
12.	D8NN9661AA	[1]	COVER	FORAssy., Includes: Ref. 13 thru 15, Start Year: 01-JAN-81 Superseded by part number: D8NN9R517AA, D8NN9R516AA, D8NN9643BA11Z, 44737S36
13.	D8NN9R516AA	[1]	SHAFT	BAS, Start Year: 01-JAN-81
14.	44735S36	[1]	WASHER	BAS1/2", Start Year: 01-JAN-81 Superseded by part number: 87613260
15.	D8NN9R517AA	[1]	KNOB	BASAssy., Start Year: 01-JAN-81
16.	81806312	[1]	AIR PRE-CLEANER ASSY	FORPre-Cleaner, 2-1/4", BSD 442, Start Year: 01-JAN-81
16.	C5NN9A660AGV	[1]	AIR PRE-CLEANER ASSY	MKTPre-Cleaner Assy, 2-1/4"
16.	F2NN9B646AA12M	[1]	COVER	FORPre-Cleaner, 3", BSD 444,444T, Start Year: 01-JAN-81 Superseded by part number: 87667137
. .	87836S36	[1]	PLUG	BASSH, 1/8"-27 x .28", Start Year: 01-JAN-81 Superseded by part number: 81825520
17.	E0NN9B639BA	[1]	INTAKE AIR HOSE,105.70 mm, SAE J200F, SAE J20	BASOutlet, BSD 442 105.70 mm, SAE J200F, SAE J20, Years: 01-JAN-81-31-JAN-83 Superseded by part number: 83925985
17.	82003736	[1]	INTAKE AIR HOSE,57.90 mm ID, 69.60 mm ID x 124.00 mm, SAE J20R4 CLASS D-1	BAS57.90 mm ID, 69.60 mm ID X 124.00 mm, SAE J22M2, SAE J20R4 CLASS D-1, Outlet, BSD 442, Start Year: 01-FEB-83
17.	E0NN9B639AA	[1]	INTAKE AIR HOSE,70.61 mm ID, 76.96 mm ID x 118.11 mm, SAE J200F, SAE J20	BASOutlet, BSD 444 70.61 mm ID, 76.96 mm ID x 118.11 mm, SAE J200F, SAE J20, Start Year: 01-JAN-81 Superseded by part number: 83925989
18.	83946677	[1]	INTAKE AIR HOSE,77.50 mm ID x 68.60 mm, SAE J200	FOR- Outlet, BSD 444T (Replaces E3NN9B639AA) 77.50 mm ID x 68.60 mm, SAE J200, Start Year: 01-JAN-81
19.	82012732	[1]	COLLAR	NHClamp Assy., Start Year: 01-JAN-81 Superseded by part number: 82036459
20.	86531343	[1]	TUBE,16.88", 5.82" L	BASAssy., Outlet, BSD 442, Years: 01-JAN-81-31-JAN-83
20.	86533730	[1]	AIR INTAKE TUBE,16.56", 9.2" L	BASTube Assy., Outlet, BSD 444, Years: 01-JAN-81-31-JUL-87
20.	82012560	[1]	TUBE	BASAssy., Outlet, BSD 442,444, Start Year: 01-AUG-87
21.	D5NN9C602A	[1]	TUBE	FORAssy., Outlet, BSD 444T, Start Year: 01-JAN-81
22.	82003527	[1]	RESTRICTION SWITCH	NHAir Cleaner Restrictor, Start Year: 01-JAN-81
23.	D3NN9B640B	[1]	HOSE,52.30 mm ID, 57.90 mm ID x 96.50 mm, SAE 10R4 or SAE J200f	BASRADIATOR HOSE, , Outlet Tube, BSD 442, 2" x 2.25 52.30 mm ID, 57.90 mm ID x 96.50 mm, SAE 10R4 or SAE J200f, Years: 01-JAN-81-31-JAN-83
23.	D9NN9B640AA	[1]	INTAKE AIR HOSE,52.32 mm ID, 70.61 mm ID x 80.30 mm, SAE J200	BASOutlet Tube, BSD 444, 2" x 2.75 52.32 mm ID, 70.61 mm ID x 80.30 mm, SAE J200, Years: 01-JAN-81-31-JUL-87 Superseded by part number: 83919171
23.	E6NN9B640AA	[1]	HOSE,77.00 mm	BASRADIATOR HOSE , Outlet Tube, BSD 442,444 77.00 mm, Start Year: 01-AUG-87 Superseded by part number: 83959450
24.	83919765	[1]	INTAKE AIR HOSE,61.20 mm ID, 77.50 mm ID x 168.40 mm, SAE J200	FOR- Outlet Tube, BSD 444T (Replaces D9NN9C622AA) 61.20 mm ID, 77.50 mm ID x 168.40 mm, SAE J200, Start Year: 01-JAN-81
25.	82012730	[1]	HOSE CLAMP,68mm - 85mm, Worm Gear	NHClamp, Hose, M68-85, Extension Inlet, Start Year: 01-JAN-81
