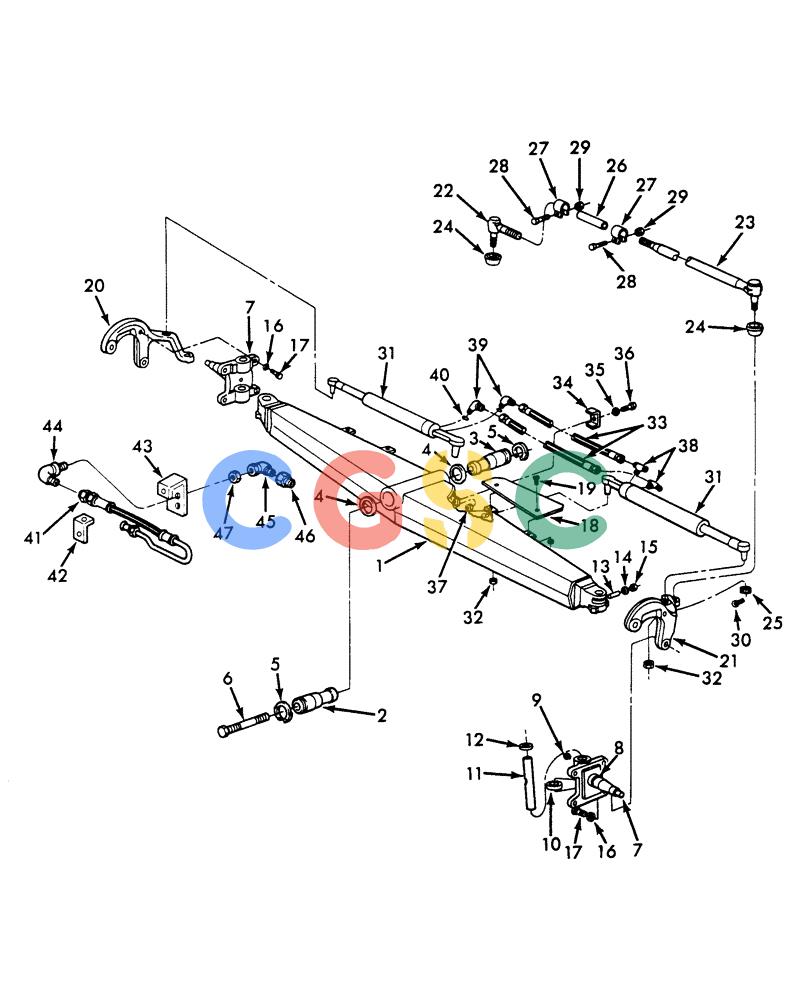

Pos.	Part No	Qty	Parts name	Comments
1.	E1NN3B012AB12Z	[1]	FRONT AXLE	BASAxle Assy., Start Year: 01-JAN-85 Superseded by part number: E4NN3B012AA12Z
1.	E4NN3B012AA12Z	[1]	FRONT AXLE	BASAxle Assy., Start Year: 01-JAN-85
2.	E0NN3A161AA	[1]	AXLE PIN,47.65mm OD x 146.1mm L	BASPin, Front, Start Year: 01-JAN-85
3.	E0NN3A162AA	[1]	PIN,47.65mm OD x 184.2mm L	BASRear, Start Year: 01-JAN-85
4.	C5NN3A070B	[2]	WASHER	FOR, Start Year: 01-JAN-85
5.	97714S36	[2]	SNAP RING	FORRing, Snap, Ext, 1.875", Start Year: 01-JAN-85
6.	88945	[1]	BOLT,Hex, 3/4" - 10 x 8", Gr 5	PAHex, G5, 3/4"-10 x 8", Start Year: 01-JAN-85
7.	86602834	[2]	SPINDLE	BASAssy. Includes: Ref. 8, Start Year: 01-JAN-85
8.	C3TA3110A	[2]	DRIVE BUSHING,31.08mm ID x 35.09mm OD x 38.61mm L	FORBushing, Start Year: 01-JAN-85
9.	87414	[4]	LUBE NIPPLE,1/4" - 28	NHNipple, Lube, Straight, 1/4"-28, Start Year: 01-JAN-85
10.	E3NN3123AA	[4]	BEARING ASSY,31.9mm ID x 55.82mm OD x 16.13mm W	BASBearing, 1.25 I.D., Start Year: 01-JAN-85
11.	C3TA3115A	[2]	PIN	FOR, Start Year: 01-JAN-85 Superseded by part number: E3NN3115AA
12.	TDBA3125A	[4]	SEAL,7.62mm Thk x 15.75mm ID	FOR, Start Year: 01-JAN-85
13.	C3TA3122A	[2]	PIN	FOR, Start Year: 01-JAN-85 Superseded by part number: E4HT3122AA
14.	81547	[2]	BEARING WASHER,7/16"	NHWASHER, LOCK, 7/16", Start Year: 01-JAN-85
15.	50456	[2]	NUT,7/16"-20, G5	NHNUT, G5, 7/16"-20, Start Year: 01-JAN-85
16.	280248	[3]	LOCK WASHER,9/16"	NHWasher, Lock, 9/16", Start Year: 01-JAN-85 Superseded by part number: 80280248
17.	376934S36	[3]	BOLT	FOR9/16"-12" X 2.12, Start Year: 01-JAN-85
18.	D4NN3C567A29Z	[2]	SHIELD	BAS, Start Year: 01-JAN-85 Superseded by part number: 83932902
19.	88206	[4]	BOLT,Hex, 3/8" - 16 x 1", Gr 5	NH, Start Year: 01-JAN-85
20.	D4NN3130A	[1]	ARM	BASR.H., Start Year: 01-JAN-85 Superseded by part number: 83900194
21.	D4NN3131A	[1]	ARM	BASL.H., Start Year: 01-JAN-85
22.	D9NN3289AA	[1]	TRACK ROD END ASSY	BASEnd Assy., R.H., Start Year: 01-JAN-85 Superseded by part number: E6NN3280AA
23.	D9NN3290AA	[1]	TRACK ROD END ASSY	BASEnd Assy., L.H., Start Year: 01-JAN-85 Superseded by part number: E6NN3280AA
24.	83902584	[2]	COVER	A, Start Year: 01-JAN-85 Superseded by part number: 86526973
25.	D5NN3C739A	[2]	NUT	BAS, Start Year: 01-JAN-85 Superseded by part number: 86529396
26.	D9NN3N102AA	[1]	BRACKET	BASClamp Assy., Start Year: 01-JAN-85 Superseded by part number: E6NN3280AA
27.	E0NN3A452AA	[2]	CLAMP	BASBolt, 1/2", Start Year: 01-JAN-85 Superseded by part number: E6NN3280AA
28.	NSS	[2]	NOT SERVICED SEPARATELY	CONBolt, Start Year: 01-JAN-85
30.	72052S8	[2]	COTTER PIN	GIPin, Split Cotter, 3/32" x 1-1/4", Start Year: 01-JAN-85
32.	359553S36	[4]	NUT	FORHex, 5/8-18", Start Year: 01-JAN-85
33.	D4NN3R553A	[2]	FLEXIBLE HOSE,9.32mm ID x 508mm L	BASHose Assy., L/FWD, Start Year: 01-JAN-85
33.	E2NN3R553AB	[2]	HOSE	BASAssy., W/FWD, Start Year: 01-JAN-85 Superseded by part number: E2NN3R553AC
34.	D4NN3C750A	[1]	CLAMP	BAS, Start Year: 01-JAN-85 Superseded by part number: 83900213
34.	D4NN94420A24A	[2]	SPACER	BAS, Start Year: 01-JAN-85 Superseded by part number: 83901398
35.	80682	[1]	BEARING WASHER,1/4"	PAWasher, Lock, 1/4", Start Year: 01-JAN-85
36.	88146	[1]	BOLT,Hex, 1/4" - 20 x 1", Gr 5	PA, Start Year: 01-JAN-85 Superseded by part number: 86505867
37.	7770	[1]	NUT,Hex, 1/4 - 20, Cl 5	NH1/4"-20, G5, Start Year: 01-JAN-85
38.	163335	[2]	TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC	BEL3/8" x 9/16-18", Start Year: 01-JAN-85
39.	76344	[2]	90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB	NH90°, Male 37° FL - Male, W/O-Ring, 3/8" Tube, Start Year: 01-JAN-85
40.	86482S36	[4]	Seal, .468 I.D. x .078, Start Year: 01-JAN-85
41.	E0NN3R762AA	[2]	HYD. TUBE,0.375" OD	BASHose & Tube Assy., L/FWD, Start Year: 01-JAN-85 Superseded by part number: E0NN3R762AB
41.	E2NN3R762AA	[2]	HOSE,0.375" OD	BAS& Tube Assy., W/FWD, Start Year: 01-JAN-85 Superseded by part number: E2NN3R762AB
42.	E2NN3C510AA29Z	[1]	BRACKET	BASW/FWD, Start Year: 01-JAN-85 Superseded by part number: 83953134
43.	E0NN3N936AA12Z	[1]	BRACKET	BASL/FWD, Start Year: 01-JAN-85
43.	E2NN3N936AC29Z	[2]	BRACKET	BASW/FWD, Start Year: 01-JAN-85
44.	E0NN3N955AA	[2]	ELBOW	BAS, Start Year: 01-JAN-85
. .	82039	[1]	HEX SOC SCREW,3/8" - 16 x 1 1/4"	WIN3/8"-16 x 1-1/2", W/FWD, Start Year: 01-JAN-85
45.	86247S36	[2]	ELBOW	FOR5-/16 -1/2 X 20 -90 degree Swivel, Start Year: 01-JAN-85 Superseded by part number: 86513593
46.	D9NN3A538AA	[2]	ADAPTER	BAS, Start Year: 01-JAN-85
47.	87309	[2]	JAM NUT,Jam, 1/2"-20, G2	NHJam, G2, 1/2"-20, Start Year: 01-JAN-85
