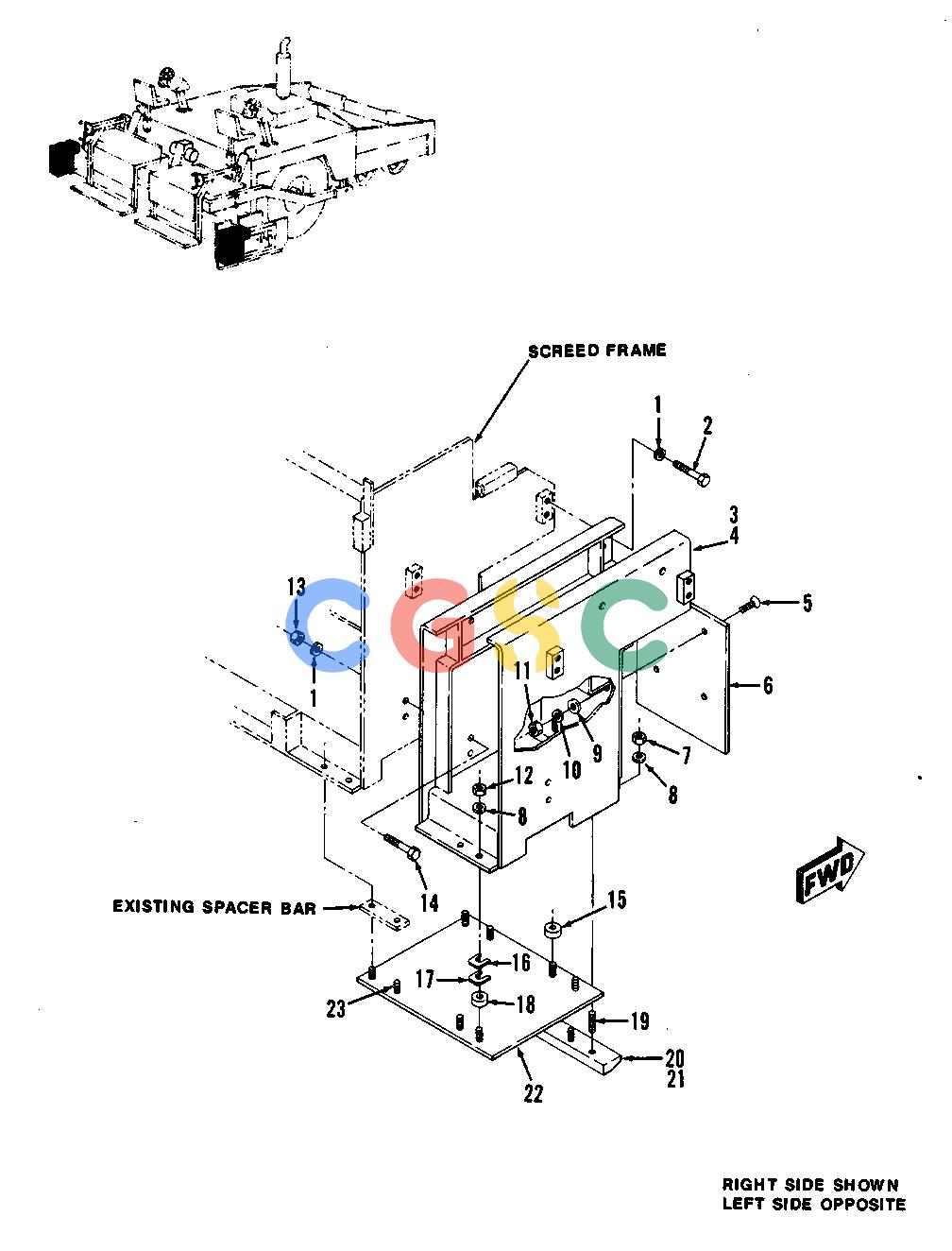

| | | [1] | SCREED EXTENSION, R.H., 1FT. (SHOWN) |
| | | [1] | SCREED EXTENSION, L.H., 1FT. (OPPOSITE) |
| 1. | 3B-4508 | [12] | LOCKWASHER, 1/2IN. | |
| 2. | 0S-1595 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/4IN. | |
| 3. | | [1] | EXTENSION, SCREED, R.H. (SHOWN) |
| 4. | | [1] | EXTENSION, SCREED, L.H. (OPPOSITE) |
| 5. | 067-7897 | [8] | CAPSCREW, CSK. HD., 3/8IN.-16 N.C. X 1 1/4IN. | |
| 6. | | [2] | WEAR PLATE |
| 7. | | [8] | LOCKNUT, 1/2IN.-13 N.C. |
| 8. | | [24] | FLATWASHER, HARDENED, 1/2IN. |
| 9. | 4B-4278 | [8] | FLATWASHER, 3/8IN. | |
| 10. | 3B-4506 | [8] | LOCKWASHER, 3/8IN. | |
| 11. | 1D-4717 | [8] | NUT, HEX. HD., 3/8IN. | |
| 12. | | [16] | LOCKNUT, 1/2IN.-20 N.F. |
| 13. | 1D-4719 | [4] | NUT, HEX., 1/2IN.-13 N.C. | |
| 14. | 9S-1366 | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 2 1/2IN. | |
| 15. | | [4] | SPACER |
| 16. | B | | SHIM, 24 GA. |
| 17. | B | | SHIM, 16 GA. |
| 18. | | [4] | SPACER |
| 19. | | [8] | STUD, 1/2IN.-13 N.C. X 2 3/8IN. |
| 20. | | [1] | BAR, NOSE, R.H. (SHOWN) |
| 21. | | [1] | BAR, NOSE, L.H. (OPPOSITE) |
| 22. | | [2] | WEAR PLATE |
| 23. | | [16] | STUD, 1/2IN.-13 N.C. X 1/2IN.-20 N.F. X 2 3/4IN. |
| | B | | USE AS REQUIRED |
