| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

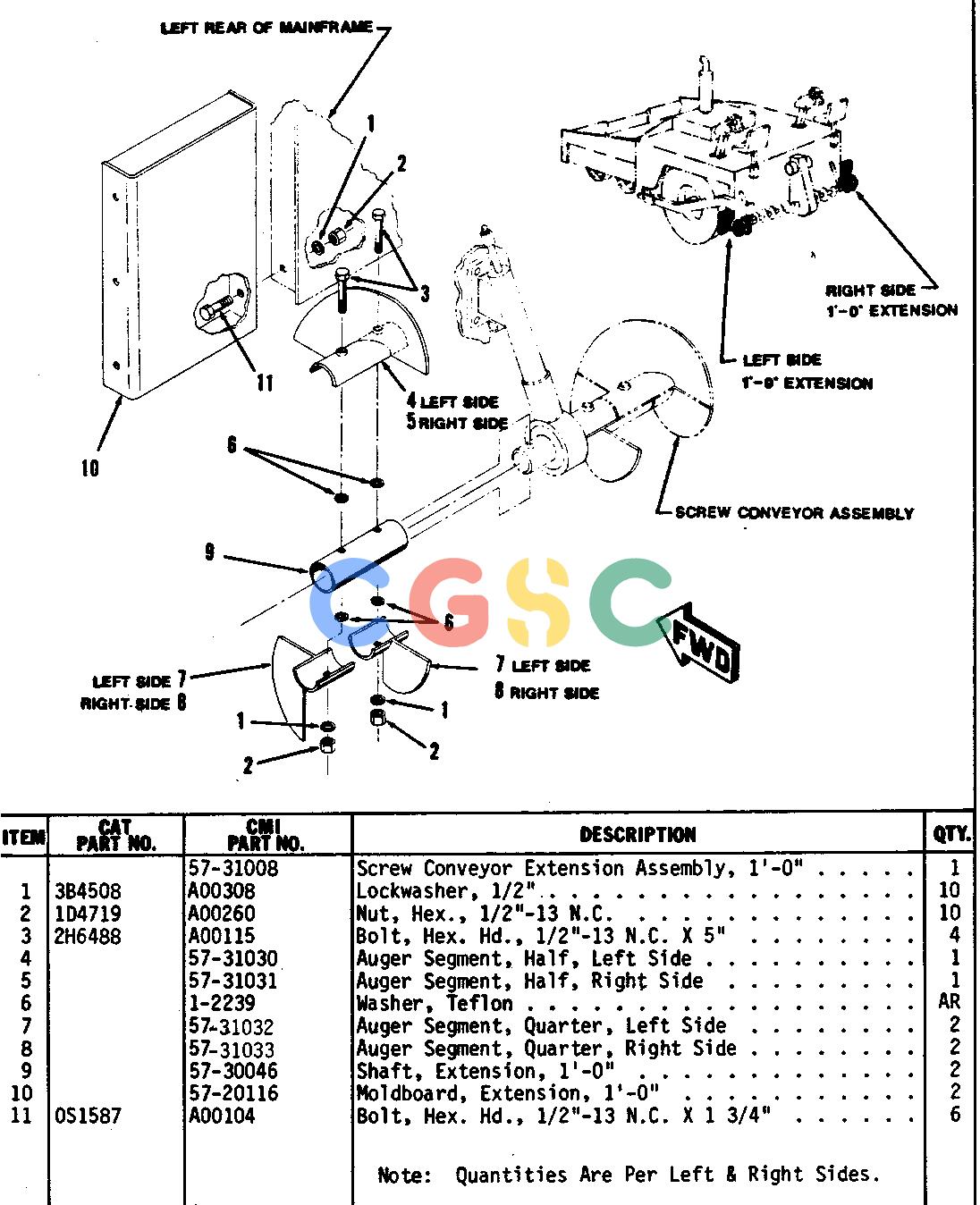

| [1] | SCREW CONVEYOR EXTENSION ASSEMBLY, 1FT.-0IN. | |||
| 1. | 3B-4508 | [10] | LOCKWASHER, 1/2IN. | |
| 2. | 1D-4719 | [10] | NUT, HEX., 1/2IN.-13 N.C. | |
| 3. | 2H-6488 | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 5IN. | |
| 4. | [1] | AUGER SEGMENT, HALF, LEFT SIDE | ||
| 5. | [1] | AUGER SEGMENT, HALF, RIGHT SIDE | ||
| 6. | B | WASHER, TEFLON | ||
| 7. | [2] | AUGER SEGMENT, QUARTER, LEFT SIDE | ||
| 8. | [2] | AUGER SEGMENT, QUARTER, RIGHT SIDE | ||
| 9. | [2] | SHAFT, EXTENSION, 1FT.-0IN. | ||
| 10. | [2] | MOLDBOARD, EXTENSION, 1FT.-0IN. | ||
| 11. | 0S-1587 | [6] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 3/4IN. | |
| B | USE AS REQUIRED | |||
