Pos.	Part No	Qty	Parts name
1.	154-4890M	[5]	BOLT-STACKING(M8X1.25X33-MM)
2.	6W-6005	[1]	HOLD-DOWN-BATTERY
3.	9G-2758	[1]	LOCKOUT-SWITCH(BATTERY DISCONNECT)
4.	9X-6932	[1]	BOOT-TERMINAL
5.	102-8703	[10]	PLATE-COVER
6.	111-7758	[1]	ROD
7.	128-0314	[1]	CABLE AS
	159-8049E		CABLE(00-GA, RED)(29-CM)
	9G-0002	[1]	COVER AS-TERMINAL(RED)
	9G-0005	[1]	COVER AS-TERMINAL(BLACK)
			(EACH COVER AS INCLUDES)
	8L-8413	[1]	STRAP-CABLE(WHITE)
	8C-5918	[1]	TERMINAL AS-BATTERY(NEGATIVE)
	8T-9756	[1]	TERMINAL AS-BATTERY(POSITIVE)
			(EACH TERMINAL AS INCLUDES)
	1M-6119	[1]	BOLT(5/16-18X1.375-IN)
	1M-6120	[1]	NUT(5/16-18-THD)
8.	128-8886	[1]	STRAP AS-GROUND
9.	134-3355	[1]	STRAP AS
10.	206-0452	[5]	PLATE
11.	235-1845	[1]	FUSE(100-AMPERE)(ALTERNATOR)
12.	238-8542	[1]	BRACKET AS
	102-8704	[1]	PLATE
13.	267-2701	[2]	FUSE(60-AMPERE)(UNSWITCHED BATTERY)
14.	267-2744	[1]	HOLDER AS-FUSE
	267-2746	[1]	COVER AS
15.	274-9872	[2]	FUSE(30-AMPERE)(GLOW PLUGS)
16.	274-9877	[2]	FUSE(50-AMPERE)(ENGINE ECM)
17.	275-0553	[1]	BAR-BUS
18.	278-6377	[2]	FUSE(40-AMPERE)(SWITCHED POWER)
19.	303-1256Y	[1]	RELAY GP(24-VDC)(MAIN POWER)
19A.	303-1256Y	[1]	RELAY GP(24-VDC)(ENGINE TEMPERATURE)
20.	329-3992	[1]	CABLE AS
	3L-6513	[1]	TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW)
	8C-3056E		CABLE(2-GA, RED)(42-CM)
	278-1439	[1]	TERMINAL AS-RING
	125-7876E		TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM)
	278-1438	[1]	TERMINAL-RING
21.	352-6571	[1]	BAR-BUS
22.	421-5575	[1]	LAMP GP-INDICATOR(24-VOLT)
	5P-5677BD		WIRE(18-GA, BLACK)
	6V-2689D		TUBE-HEAT SHRINK(6.35-MM DIA)(0.1-M)
	102-8802	[1]	KIT-RECEPTACLE(2-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	8T-8729	[2]	PIN-CONNECTOR(16-GA TO 18-GA)
	9X-1386E		SLEEVE(29-CM)
23.	437-9756	[1]	CABLE AS
	7T-9988	[1]	COVER AS-TERMINAL(BLACK)
	8L-8413	[1]	STRAP-CABLE(WHITE)
	9G-8909	[1]	COVER-TERMINAL(BLACK)
	3S-6050	[1]	TERMINAL AS-BATTERY(NEGATIVE)
	1M-6119	[1]	BOLT(5/16-18X1.375-IN)
	1M-6120	[1]	NUT(5/16-18-THD)
	159-8050E		CABLE(00-GA, BLACK)(194-CM)
	1S-7251	[1]	TERMINAL-CABLE(00-GA, 1/2-IN SCREW)
	351-9309E		TUBE-HEAT SHRINK(32-MM DIA)(4-CM)
24.	437-9849	[1]	CABLE AS
	159-8050E		CABLE(00-GA, BLACK)(243-CM)
	1S-7251	[1]	TERMINAL-CABLE(00-GA, 1/2-IN SCREW)
	351-9309E		TUBE-HEAT SHRINK(32-MM DIA)(4-CM)
25.	437-9896	[1]	CABLE AS
	8C-0596E		CABLE(2-GA)(25-CM)
	030-1712	[1]	TERMINAL-RING(2-GA, 1/4-IN SCREW)
	125-7876E		TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM)
	278-1438	[1]	TERMINAL-RING
26.	442-8773	[1]	BRACKET AS
	6V-9632M	[4]	NUT-WELD(M6X1-THD)
	7T-1099	[1]	LINK
	102-8704	[1]	PLATE
	130-5300	[1]	CLIP
	178-8505	[1]	PLATE-WELD
27.	452-6892Y	[1]	SWITCH GP-DISCONNECT(BATTERY)
28.	455-3158	[1]	BRACKET AS
	102-8704	[1]	PLATE
29.	482-7119	[1]	CABLE AS
	8T-2225E		TUBE-HEAT SHRINK(25.4-MM DIA)(12-CM)
	329-9933G		HOSE(9.5-IN)
	6T-5598	[2]	TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW)
	8C-3056E		CABLE(2-GA, RED)(290-CM)
	308-8161	[1]	COVER-TERMINAL
30.	460-7861	[1]	CABLE AS
	7T-9987	[1]	COVER AS-TERMINAL(RED)
	8L-8413	[1]	STRAP-CABLE(WHITE)
	8N-0869	[1]	COVER-TERMINAL(RED)
	3S-6049	[1]	TERMINAL AS-BATTERY(POSITIVE)
	1M-6119	[1]	BOLT(5/16-18X1.375-IN)
	1M-6120	[1]	NUT(5/16-18-THD)
	159-8049E		CABLE(00-GA, RED)(343-CM)
	299-6082	[1]	COVER-TERMINAL(RED)
	1S-7251	[1]	TERMINAL-CABLE(00-GA, 1/2-IN SCREW)
	351-9309E		TUBE-HEAT SHRINK(32-MM DIA)(4-CM)
	135-5009E		TUBE-HEAT SHRINK(32-MM DIA)(5-CM)
	274-9183	[1]	TERMINAL-RING(00-GA, 1/2-IN SCREW)
31.	099-3649M	[1]	BOLT(M8X1.25X40-MM)
32.	9X-3404	[2]	BATTERY GP(12-VOLT, MAINTENANCE FREE, WET)
			-OR-
	115-2422	[2]	BATTERY GP(12-VOLT, MAINTENANCE FREE, WET)
33.	156-5306	[12]	CLAMP-HALF
34.	177-2215	[6]	STRAP-DUAL CLAMP
35.	197-4103	[16]	CLAMP-HALF
36.	344-5674M	[1]	NUT(M8X1.25-THD)
37.	4B-4280	[7]	WASHER(13.5X27X2.5-MM THK)
38.	4P-7581	[1]	CLIP(LADDER)
39.	5C-7261M	[4]	NUT(M8X1.25-THD)
40.	5P-7177	[1]	RETAINER
41.	6V-7687M	[1]	LOCKNUT(M12X1.75-THD)
42.	7K-1181	[1]	STRAP-CABLE
43.	7P-1695	[1]	WASHER(10.5X19X3-MM THK)
44.	7X-2534M	[2]	BOLT(M6X1X50-MM)
45.	7X-2537M	[7]	BOLT(M8X1.25X35-MM)
46.	7X-2550M	[2]	BOLT(M12X1.75X110-MM)
47.	7X-7729	[1]	WASHER(11X25X3-MM THK)
48.	8F-7242	[4]	WASHER(8.7X15.9X1.6-MM THK)
49.	8T-0389M	[1]	LOCKNUT(M10X1.5-THD)
50.	8T-4121	[2]	WASHER-HARD(11X21X2.5-MM THK)
51.	8T-4123	[1]	WASHER(22X35X3.5-MM THK)
52.	8T-4136M	[1]	BOLT(M10X1.5X25-MM)
53.	8T-4137M	[1]	BOLT(M10X1.5X20-MM)
54.	8T-4138M	[2]	BOLT(M6X1X20-MM)
55.	8T-4179M	[3]	BOLT(M12X1.75X20-MM)
56.	8T-4191M	[2]	BOLT(M10X1.5X16-MM)
57.	8T-4222	[1]	WASHER-PLATED(11X32X2.5-MM THK)
58.	8T-4224	[3]	WASHER-HARD(8.8X16X2-MM THK)
59.	8T-4244M	[1]	NUT(M12X1.75-THD)
60.	8T-6912M	[1]	BOLT(M8X1.25X50-MM)
61.	264-3617	[4]	LOCKWASHER
62.	9X-8256	[4]	WASHER(6.6X12X2-MM THK)
63.	103-2543E		SEAL(2.5-CM EACH)
64.	8T-4171M	[2]	BOLT(M6X1X12-MM)
65.	9X-2038	[2]	WASHER(7X19X2-MM THK)
66.	479-5536	[1]	COVER-BATTERY
	B		USE AS REQUIRED
	D		ORDER BY THE METER
	E		ORDER BY THE CENTIMETER
	G		ORDER BY THE INCH
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

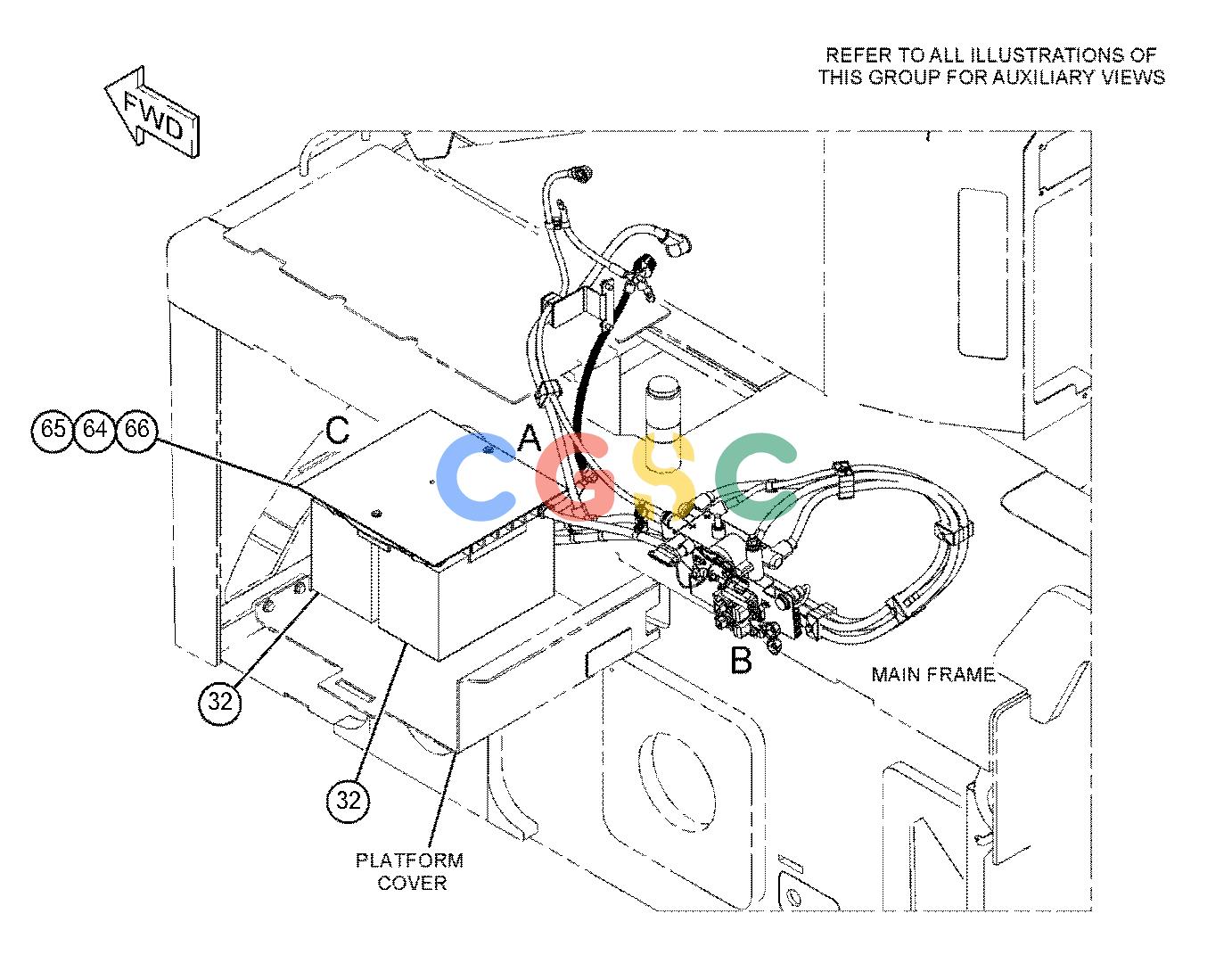

卡特零件查询（AP655F） 424-9117: BATTERY & WIRING GP
