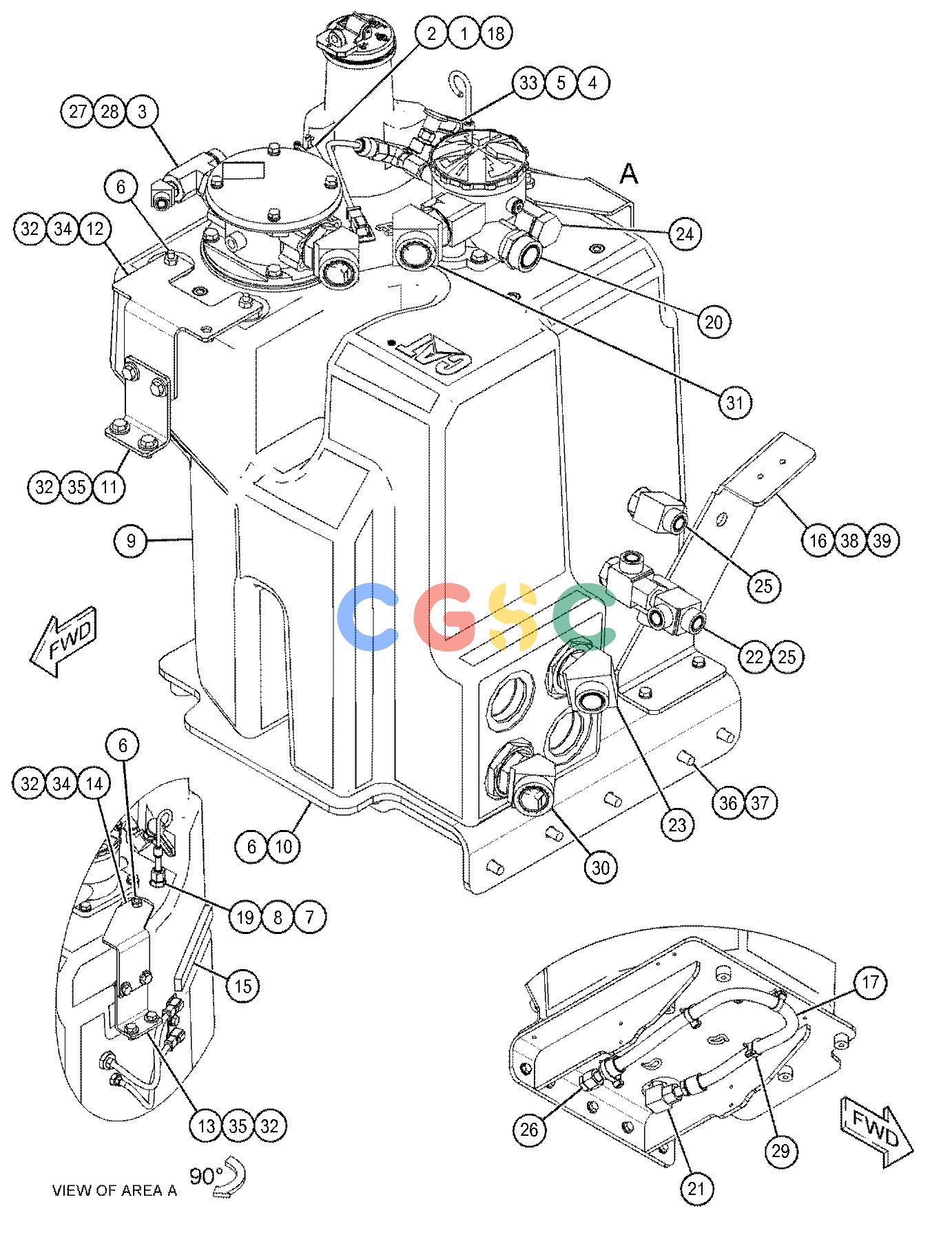

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3B-6552 | [1] | ELBOW-PIPE | |
| 2. | 3T-3727 | [1] | SWITCH AS-PRESSURE(LOW WATER) | |
| 3. | 164-5596 | [1] | TEE AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 8C-6515 | [1] | TEE | ||
| 4. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 5. | 241-6215 | [1] | ELBOW AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8076 | [1] | ELBOW | ||
| 6. | 298-7788 | [5] | BUMPER | |
| 7. | 330-4508 | [1] | GAUGE-OIL LEVEL (DIPSTICK)(HYDRAULIC TANK) | |
| 8. | 332-2624 | [1] | TUBE AS | |
| 9. | 447-9837Y | [1] | TANK GP-HYDRAULIC | |
| 10. | 458-9359 | [1] | BRACKET AS | |
| 7T-1099 | [7] | LINK | ||
| 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | ||
| 361-5420 | [1] | CLIP | ||
| 11. | 462-7954 | [1] | BRACKET | |
| 12. | 462-7955 | [1] | BRACKET AS | |
| 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | ||
| 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | ||
| 13. | 462-7956 | [1] | BRACKET AS | |
| 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | ||
| 14. | 462-7957 | [1] | BRACKET AS | |
| 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | ||
| 15. | 462-8303 | [1] | FOAM | |
| 16. | 467-5652 | [1] | BRACKET | |
| 17. | 467-5653I | [1] | HOSE AS | |
| 18. | 002-0639 | [1] | ADAPTER-PIPE | |
| 19. | 148-8318 | [1] | CONNECTOR AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8634 | [1] | CONNECTOR | ||
| 20. | 148-8333 | [1] | CONNECTOR AS | |
| 6V-8400 | [1] | SEAL-O-RING | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 8T-7927 | [1] | CONNECTOR | ||
| 21. | 148-8347 | [1] | ELBOW AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-9007 | [1] | ELBOW | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 22. | 148-8449 | [1] | TEE AS-SWIVEL | |
| 6V-9746 | [2] | SEAL-O-RING | ||
| 6V-9839 | [1] | TEE-SWIVEL | ||
| 23. | 153-6238 | [1] | ELBOW AS | |
| 2S-4078 | [1] | SEAL-O-RING | ||
| 6V-8400 | [1] | SEAL-O-RING | ||
| 6V-9006 | [1] | ELBOW | ||
| 24. | 164-4180 | [1] | PLUG AS | |
| 7M-8485 | [1] | SEAL-O-RING | ||
| 9S-4181 | [1] | PLUG(1-5/16-12-THD) | ||
| 25. | 164-5574 | [3] | TEE AS | |
| (EACH INCLUDES) | ||||
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-8784 | [1] | TEE-FACE SEAL | ||
| 6V-9746 | [2] | SEAL-O-RING | ||
| 26. | 164-5581 | [1] | PLUG AS | |
| 6V-9511 | [1] | PLUG(1-3/16-12-THD) | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 27. | 164-5624 | [1] | ELBOW AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 9X-2085 | [1] | ELBOW | ||
| 28. | 176-0391 | [1] | ADAPTER AS | |
| 6K-6307 | [1] | SEAL-O-RING | ||
| 8V-7764 | [1] | ADAPTER-O-RING | ||
| 29. | 204-2281 | [4] | STRAP-CABLE | |
| 30. | 204-9379 | [1] | ELBOW AS | |
| 6K-6307 | [1] | SEAL-O-RING | ||
| 8T-0315 | [1] | SEAL-O-RING | ||
| 204-9378 | [1] | ELBOW | ||
| 31. | 205-0993 | [1] | ELBOW AS | |
| 2S-4078 | [1] | SEAL-O-RING | ||
| 8T-0315 | [1] | SEAL-O-RING | ||
| 32. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 33. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 34. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 36. | 8T-4139M | [5] | BOLT(M12X1.75X30-MM) | |
| 37. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 38. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 39. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
