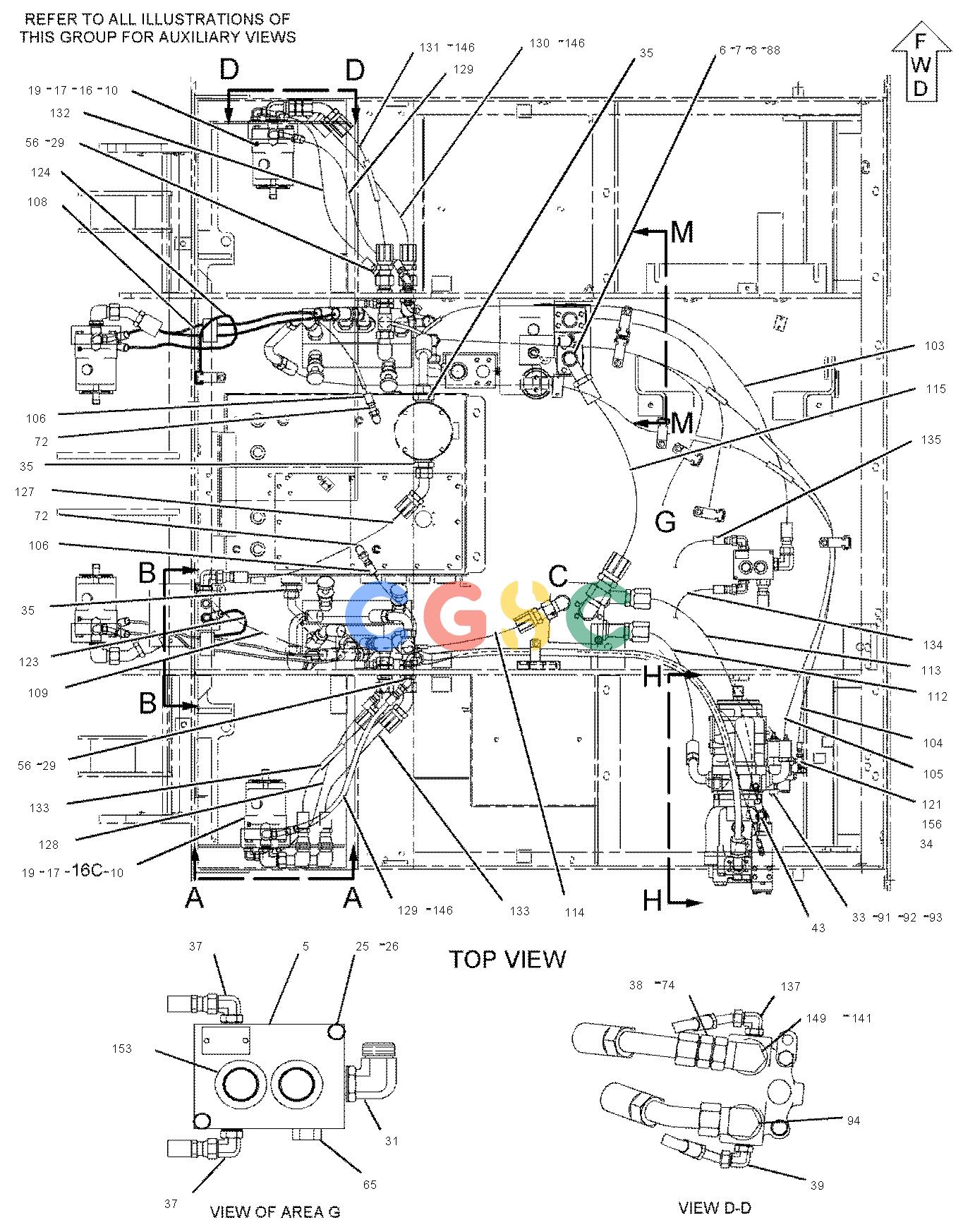

卡特零件查询（BG-225C） 228-5755: LINES GP-CONVEYOR

作者：广数供应链运营团队
浏览数：
时间：2025-01-25 08:10:40
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos.Part NoQtyParts nameComments
1. 216-7961Y[2]VALVE GP-CONTROL(DRAG CONVEYOR, AUGER CONVEYOR)
2. 177-0264Y[1]FILTER GP-OIL
3. 107-0099 [1]MANIFOLD
4. 107-0002Y[1]MANIFOLD GP-SUCTION
5. 107-0003 [2]MANIFOLD
6. 1P-4579 [12]FLANGE-HALF
7. 0S-1587 [32]BOLT(1/2-13X1.75-IN)
8. 5P-8245 [32]WASHER-HARD(13.5X25.5X3-MM THK)
9. 5C-6565 [4]BOLT(1/2-13X1.125-IN)
10. 8T-4223 [20]WASHER-HARD(13.5X25.5X3-MM THK)
11. 5S-7379 [11]BOLT(3/8-16X0.875-IN)
12. 8T-4896 [19]WASHER-HARD(10.2X18.5X2.5-MM THK)
13. 185-3508Y[1]PUMP GP-PISTON(CONVEYOR, LH)
14. 185-3509Y[1]PUMP GP-PISTON(CONVEYOR, RH)
15. 8V-5719 [2]BOLT(5/16-18X2-IN)(5/16-18X2.5 INCHES)
16. 223-0581Y[1]MOTOR GP-PISTON(DRAG CONVEYOR, LH)
16A. 223-0581Y[1]MOTOR GP-PISTON(AUGER CONVEYOR, LH)
16B. 223-0581Y[1]MOTOR GP-PISTON(AUGER CONVEYOR, RH)
16C. 223-0581Y[1]MOTOR GP-PISTON(DRAG CONVEYOR, RH)
17. 6V-1320 [4]SEAL-O-RING
18. 118-7845I[2]HOSE AS
19. 5P-2566 [16]BOLT(1/2-13X1.5-IN)
20. 7X-0293 [2]BOLT(3/8-16X4.75-IN)
21. 6V-8801 [5]NUT(3/8-16-THD)
22. 8I-0960 [1]COUPLING
23. 4L-6454 [9]BOLT(3/8-16X1-IN)
24. 6V-8185 [2]NUT(1/4-20-THD)
25. 8T-4205 [4]WASHER-HARD(7.2X14.5X2-MM THK)
26. 7X-0268 [2]BOLT(1/4-20X3.5-IN)
27. 113-3353 [1]ELBOW
28. 204-9815 [2]ELBOW AS
(EACH INCLUDES)
6K-6307 [1]SEAL-O-RING
8T-0315 [1]SEAL-O-RING
8T-1682 [1]ELBOW
29. 148-8375 [2]ELBOW AS
(EACH INCLUDES)
6V-8398 [2]SEAL-O-RING
6V-8981 [1]ELBOW
30. 8T-0315 [1]SEAL-O-RING
31. 148-8356 [3]ELBOW AS
(EACH INCLUDES)
2S-4078 [1]SEAL-O-RING
6V-8400 [1]SEAL-O-RING
6V-9009 [1]ELBOW
32. 8S-0948 [2]CLIP
33. 4J-0520 [2]SEAL-O-RING
34. 148-8423 [1]TEE AS
3J-1907 [1]SEAL-O-RING
4J-5477 [1]SEAL-O-RING
8T-3311 [1]TEE
35. 219-9654 [3]CONNECTOR AS
(EACH INCLUDES)
6K-6307 [1]SEAL-O-RING
6V-8400 [1]SEAL-O-RING
109-3657 [1]CONNECTOR
36. 148-8357 [2]ELBOW AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-9008 [1]ELBOW
7M-8485 [1]SEAL-O-RING
37. 148-8364 [3]ELBOW AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8625 [1]ELBOW
38. 120-0571 [2]VALVE GP-CHECK(CONVEYOR)
39. 148-8372 [6]ELBOW AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8721 [1]ELBOW
40. 5E-8915 [2]ADAPTER
41. 2P-1279 [2]LOCKNUT(9/16-18-THD)
42. 148-8355 [4]ELBOW AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-9005 [1]ELBOW
7M-8485 [1]SEAL-O-RING
43. 148-8354 [2]ELBOW AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-9002 [1]ELBOW
44. 164-5616 [2]PLUG AS
(EACH INCLUDES)
2S-4078 [1]SEAL-O-RING
9S-6130 [1]PLUG
45. 148-8391 [2]ELBOW AS
(EACH INCLUDES)
2S-4078 [1]SEAL-O-RING
5K-9090 [1]SEAL-O-RING
8T-8987 [1]ELBOW
46. 148-8352 [8]ELBOW AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-9854 [1]ELBOW(SWIVEL)
47. 155-2026 [4]UNION AS
(EACH INCLUDES)
5K-9090 [2]SEAL-O-RING
6V-8998 [1]UNION
48. 148-8429 [2]TEE AS
(EACH INCLUDES)
5K-9090 [2]SEAL-O-RING
6V-9840 [1]TEE-SWIVEL
49. 5P-3501 [1]ADAPTER
50. 4J-5477 [4]SEAL-O-RING
51. 3J-1907 [1]SEAL-O-RING
52. 148-8368 [2]ELBOW AS
(EACH INCLUDES)
3J-1907 [1]SEAL-O-RING
4J-5477 [1]SEAL-O-RING
6V-8627 [1]ELBOW
53. 2D-7325 [1]TEE-PIPE
54. 148-8340 [1]CONNECTOR AS
3K-0360 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8639 [1]CONNECTOR
55. 6V-3966 [1]FITTING AS
56. 6V-9169 [2]NUT(13/16-16-THD)
57. 8C-6427 [1]ADAPTER
58. 8C-3793 [2]BOLT(1/4-20X3.75-IN)
59. 164-5590 [1]VALVE GP-FLUID SAMPLING(HYDRAULIC OIL)
3J-7354 [1]SEAL-O-RING
8C-3446 [1]VALVE-SAMPLING(HYDRAULIC OIL)
60. 148-8361 [2]ELBOW AS(90-DEG)
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-9200 [1]ELBOW
61. 132-2453 [2]UNION
62. 5V-6152 [2]CLAMP
63. 7R-7951 [1]PLATE
64. 7X-0264 [2]BOLT(1/4-20X2.5-IN)
65. 148-8411 [4]PLUG AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
9S-4185 [1]PLUG(3/4-16-THD)
66. 7J-6285 [1]SEAL-O-RING
67. 148-8424 [1]TEE AS
6V-8397 [1]SEAL-O-RING
8T-8902 [1]ADAPTER-TEE
68. 5P-1075 [8]WASHER-HARD(10.2X22.5X3-MM THK)
69. 7X-0294 [2]BOLT(3/8-16X5-IN)
70. 148-8318 [2]CONNECTOR AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8634 [1]CONNECTOR
71. 6V-9172 [4]NUT(1-7/16-12-THD)
72. 148-8378 [2]ELBOW AS
(EACH INCLUDES)
3J-1907 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8724 [1]ELBOW
73. 148-8374 [2]ELBOW AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8723 [1]ELBOW
74. 5K-9090 [2]SEAL-O-RING
75. 150-4049 [4]ELBOW AS
(EACH INCLUDES)
6V-9746 [1]SEAL-O-RING
7M-8485 [1]SEAL-O-RING
8T-4149 [1]ELBOW
76. 4V-0612 [2]PLATE
77. 5P-2937 [2]ADAPTER-O-RING
78. 8V-5718 [4]CLAMP
79. 1P-4582 [4]FLANGE-HALF
80. 4J-0527 [2]SEAL-O-RING
81. 8T-9043 [3]BOLT(5/16-18X0.875-IN)
82. 5P-4116 [3]WASHER-HARD(8.8X20.5X2-MM THK)
83. 153-6248 [2]ADAPTER AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
8T-6663 [1]ADAPTER-PORT
84. 6R-3493I[1]HOSE AS
85. 129-4570I[1]HOSE AS
86. 077-8184 [2]CLAMP
87. 7X-0440 [2]BOLT(5/16-18X1.75-IN)
88. 4J-0524 [6]SEAL-O-RING
89. 7X-5315 [6]FITTING AS(QUICK DISCONNECT)
90. 7R-7964 [2]PLATE
91. 1P-4577 [4]FLANGE-HALF
92. 3B-1915 [8]BOLT(3/8-16X1.375-IN)
93. 5M-2894 [8]WASHER-HARD(10.2X18.5X2.5-MM THK)
94. 148-8362 [2]ELBOW AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
5K-9090 [1]SEAL-O-RING
8T-6684 [1]ELBOW
95. 127-5435Y[1]MANIFOLD GP-COOLING
96. 124-8824 [1]PLATE
97. 6V-8986 [2]ELBOW
98. 117-8333 [1]PLATE
99. 122-1239 [2]PLATE
100. 1G-8560 [2]PLATE AS
101. 124-9074 [1]TUBE AS
102. 124-9075 [1]TUBE AS
103. 129-5123I[1]HOSE AS
104. 161-9050I[1]HOSE AS
105. 164-2155I[1]HOSE AS
106. 129-5126I[2]HOSE AS
107. 6R-7841I[1]HOSE AS
108. 118-0387I[1]HOSE AS
109. 187-2063I[1]HOSE AS
110. 177-2215 [4]STRAP-DUAL CLAMP
111. 129-5129I[1]HOSE AS
112. 129-5130I[1]HOSE AS
113. 129-5131I[1]HOSE AS
114. 129-5132I[1]HOSE AS
115. 129-5133I[1]HOSE AS
116. 129-5134I[1]HOSE AS
117. 105-5877I[1]HOSE AS
118. 232-1761I[1]HOSE AS
119. 164-2152I[1]HOSE AS
120. 7I-4604I[1]HOSE AS
121. 6V-0852 [16]CAP-DUST
122. 129-5138I[1]HOSE AS
123. 141-7685I[1]HOSE AS
124. 145-6131I[1]HOSE AS
125. 129-5141I[2]HOSE AS
126. 129-5142I[1]HOSE AS
127. 111-4647I[1]HOSE AS
128. 112-8570I[1]HOSE AS
129. 129-5144I[2]HOSE AS
130. 129-5145I[1]HOSE AS
131. 129-5146I[1]HOSE AS
132. 177-9083I[1]HOSE AS
133. 129-5148I[2]HOSE AS
134. 4E-3451I[1]HOSE AS
135. 111-4450I[1]HOSE AS
136. 132-2078I[1]HOSE AS
137. 205-3692 [2]ELBOW AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
9X-2134 [1]ELBOW
138. 150-4047 [1]ADAPTER AS
3J-7354 [1]SEAL-O-RING
8T-2353 [1]ADAPTER
139. 155-3624 [3]PLUG AS
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
9S-4182 [1]PLUG(7/16-20-THD)
140. 031-4847 [3]SPACER(0.38X0.625X0.25-IN)
141. 153-6236 [2]REDUCER AS
(EACH INCLUDES)
6V-8946 [1]REDUCER
6V-9746 [1]SEAL-O-RING
142. 7X-8180 [2]REGULATOR-FLOW(CONVEYOR)
143. 127-5437 [1]PLATE
144. 9X-7371 [1]SEAL-O-RING
145. 8C-1020 [5]CLAMP-TUBE
146. 178-3620 [6]STRAP-DUAL CLAMP
147. 9M-8406 [1]CLIP(LOOP)
148. 7D-7233 [2]CLIP
149. 171-6725 [2]ELBOW AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
8T-6451 [1]ELBOW
150. 5E-0114 [3]CLAMP
151. 3J-7354 [7]SEAL-O-RING
152. 148-8337 [2]CONNECTOR AS
(EACH INCLUDES)
4J-5477 [1]SEAL-O-RING
8C-6866 [1]CONNECTOR
153. 148-8409 [3]PLUG AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
9S-8008 [1]PLUG(1-1/16-12-THD)
154. 164-4180 [2]PLUG AS
(EACH INCLUDES)
7M-8485 [1]SEAL-O-RING
9S-4181 [1]PLUG(1-5/16-12-THD)
155. 101-7938 [4]CLAMP-HALF
156. 164-5567 [8]COUPLER AS-QUICK DISCONNECT(MALE)
(EACH INCLUDES)
3J-1907 [1]SEAL-O-RING
6V-3965 [1]FITTING(QUICK DISCONNECT)
157. 148-8347 [4]ELBOW AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
6V-9746 [1]SEAL-O-RING
6V-9007 [1]ELBOW
158. 148-8413 [1]REDUCER AS
4J-5477 [1]SEAL-O-RING
6V-8934 [1]ADAPTER
159. 148-8353 [1]ELBOW AS
3J-1907 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-9001 [1]ELBOW
I REFER TO HYDRAULIC INFORMATION SYSTEM
R REMANUFACTURED PART MAY BE AVAILABLE
Y SEPARATE ILLUSTRATION
