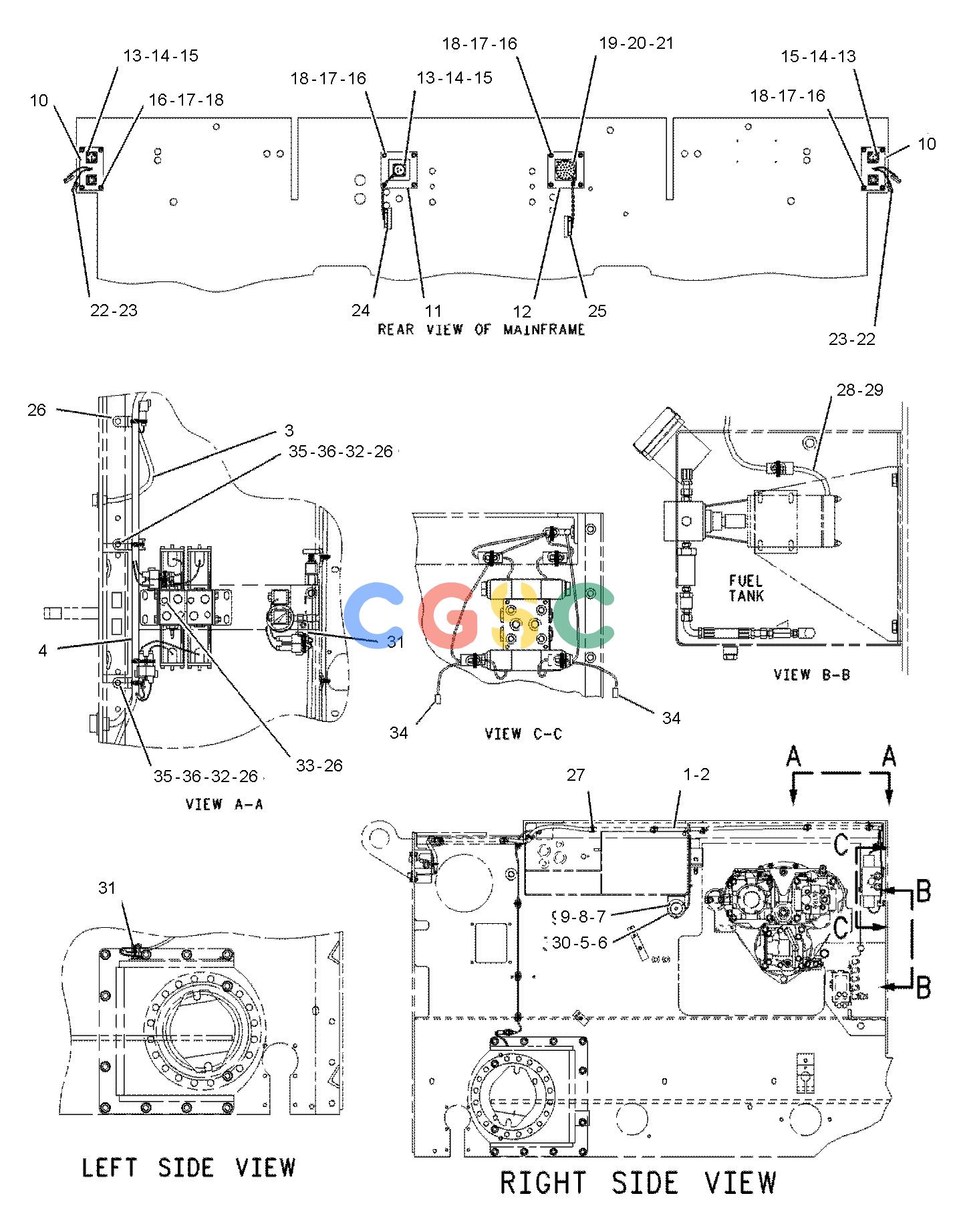

| 1. | 154-9608 | [1] | HARNESS AS | |
| 2. | 154-9612 | [1] | HARNESS AS | |
| 3. | 110-4939 | [1] | HARNESS AS-SCREED(POWER) | |
| 4. | 148-0664 | [1] | HARNESS AS-SCREED(CONTROL) | |
| 5. | 112-3101 | [2] | PLATE-FACE | |
| 6. | 9G-0011 | [2] | SWITCH AS-TOGGLE(RH/LH TOWPOINT JOG) | |
| | | | (EACH INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 7. | 4B-2047 | [6] | NUT(10-24-THD) | |
| 8. | 8T-1688 | [6] | SCREW-MACHINE(10-24X12.7-MM) | |
| 9. | 4B-4274 | [6] | WASHER(5.5X13X1.2-MM THK) | |
| 10. | 112-8231 | [2] | PLATE | |
| 11. | 111-8774 | [1] | PLATE | |
| 12. | 111-8554 | [1] | PLATE | |
| 13. | 6V-2480 | [22] | SCREW(4-40X0.5-IN) | |
| 14. | 6B-4540 | [22] | NUT(4-40-THD) | |
| 15. | 9B-1117 | [22] | LOCKWASHER | |
| 16. | 8T-8908 | [16] | BOLT(1/4-20X1-IN) | |
| 17. | 8T-4205 | [16] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 18. | 6V-8185 | [16] | NUT(1/4-20-THD) | |
| 19. | 9X-8486 | [4] | SCREW-MACHINE(8-32X0.75-IN) | |
| 20. | 4B-2043 | [4] | NUT(8-32-THD) | |
| 21. | 3B-4501 | [4] | LOCKWASHER | |
| 22. | 112-5929 | [2] | CAP-DUST | |
| 23. | 8D-9537 | [2] | CAP-DUST | |
| 24. | 7R-3027 | [1] | CAP-DUST | |
| 25. | 105-9161 | [1] | CAP-DUST | |
| 26. | 4P-7581 | [4] | CLIP(LADDER) | |
| 27. | 7K-1181 | [63] | STRAP-CABLE | |
| 28. | 113-8226 | [1] | HARNESS AS-PUMP(SPRAY DOWN) | |
| 29. | 9D-8508 | [1] | GROMMET | |
| 30. | 116-4855 | [1] | PLATE | |
| 31. | 4P-8134 | [2] | CLIP(LADDER) | |
| 32. | 6V-8801 | [3] | NUT(3/8-16-THD) | |
| 33. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 34. | 106-8704 | [4] | SUPPRESSOR AS-ARC | |
| 35. | 8T-2502 | [3] | BOLT(3/8-16X1.125-IN) | |
| 36. | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
