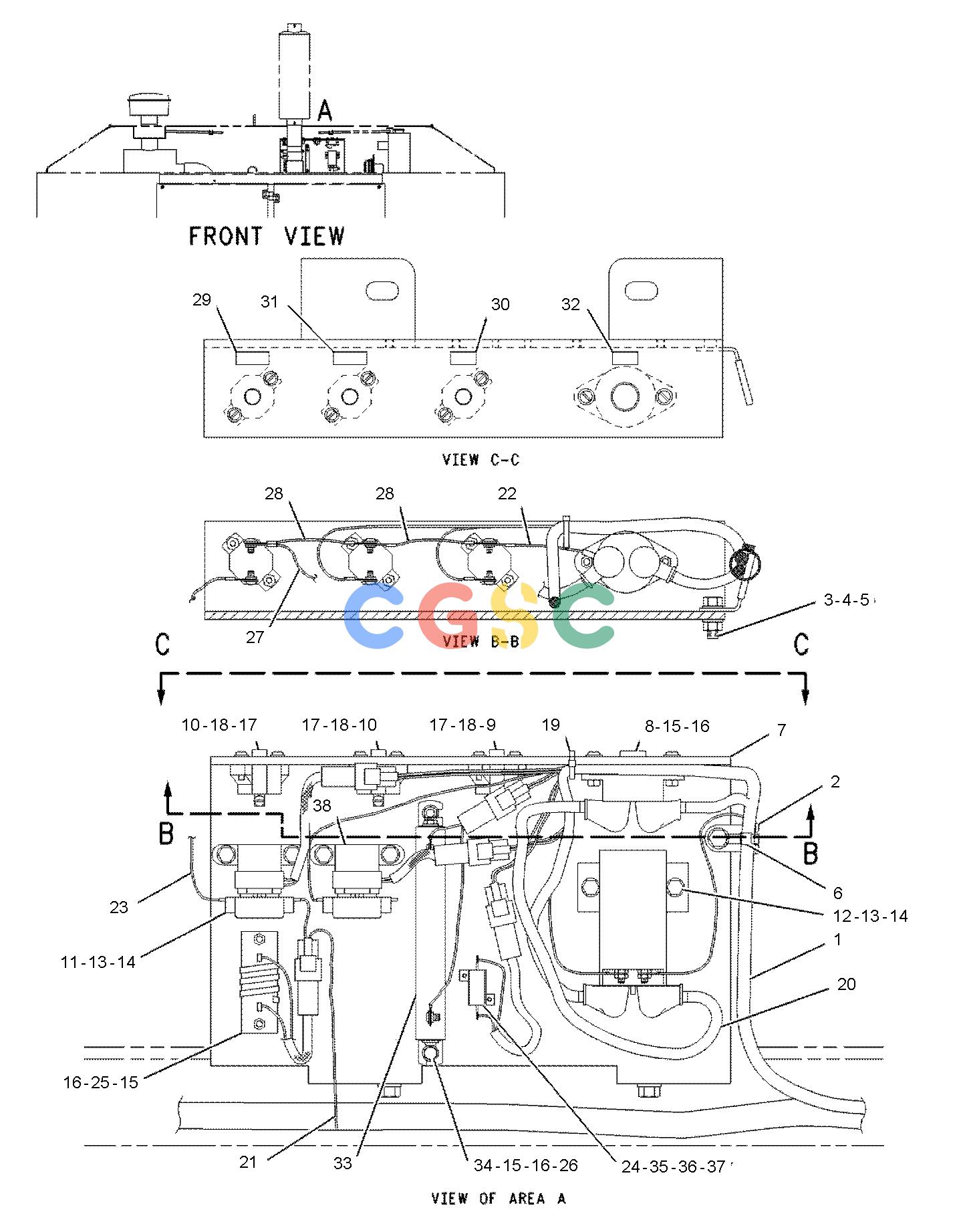

| 1. | 148-4428 | [1] | HARNESS AS-ENGINE | |
| 2. | 4P-8134 | [1] | CLIP(LADDER) | |
| | 5L-2855 | [1] | BRACKET AS-MOUNTING | |
| 3. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 4. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 5. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 6. | 7K-1181 | [1] | STRAP-CABLE | |
| 7. | 148-4429 | [1] | PLATE | |
| 8. | 9S-0174 | [1] | CIRCUIT BREAKER AS(60-AMPERE) | |
| | 1H-3244 | [2] | LOCKWASHER | |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 9. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 10. | 6T-3643 | [2] | CIRCUIT BREAKER AS(15-AMPERE) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 11. | 118-3534 | [1] | SWITCH GP-MAGNETIC(24-VOLT)(HEAT RELAY) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5C-2890M | [2] | NUT(M6X1-THD) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1386 | [16] | SLEEVE | |
| 12. | 3T-0376 | [1] | SWITCH AS-MAGNETIC(MAIN RELAY) | |
| | 4F-2294 | [2] | NUT-JAM(5/16-24-THD) | |
| | 6V-8186 | [2] | NUT-FULL(5/16-24-THD) | |
| | 6V-8378 | [2] | NUT(10-32-THD) | |
| 13. | 5S-7349 | [6] | BOLT(1/4-20X0.5-IN) | |
| 14. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 15. | 6V-7978 | [6] | SCREW-MACHINE(10-32X0.375-IN) | |
| 16. | 4B-4274 | [6] | WASHER(5.5X13X1.2-MM THK) | |
| 17. | 9X-8486 | [6] | SCREW-MACHINE(8-32X0.75-IN) | |
| 18. | 4B-4863 | [6] | WASHER(4.7X11X1.2-MM THK) | |
| 19. | 3S-2093 | [4] | STRAP-CABLE | |
| 20. | 131-2402 | [1] | WIRE AS | |
| 21. | 145-7368 | [1] | WIRE AS | |
| 22. | 148-5257 | [1] | WIRE AS | |
| 23. | 145-7371 | [1] | WIRE AS | |
| 24. | 140-2238 | [1] | RESISTOR AS | |
| 25. | 119-1038 | [1] | RESISTOR AS | |
| 26. | 129-8658Y | [1] | RESISTOR GP-FUEL SOLENOID | |
| 27. | 146-3296 | [1] | WIRE AS | |
| 28. | 148-5256 | [2] | WIRE AS | |
| 29. | 148-4525 | [1] | FILM-INFORMATION(HEAT) | |
| 30. | 147-3775 | [1] | FILM-INFORMATION(BURNER, CIRCUIT BREAKER) | |
| 31. | 110-1335 | [1] | FILM-INFORMATION(ENGINE, CIRCUIT BREAKER) | |
| 32. | 110-1334 | [1] | FILM-INFORMATION(MAIN, CIRCUIT BREAKER) | |
| 34. | 4L-1250 | [2] | LOCKNUT(10-32-THD) | |
| 35. | 4B-9762 | [2] | SCREW-MACHINE | |
| 36. | 4B-5324 | [2] | WASHER(3.9X9.6X1.2-MM THK) | |
| 37. | 4B-2041 | [2] | NUT(6-32-THD) | |
| 38. | 118-3534 | [1] | SWITCH GP-MAGNETIC(24-VOLT)(FUEL RELAY) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5C-2890M | [2] | NUT(M6X1-THD) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1386BE | | SLEEVE | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
