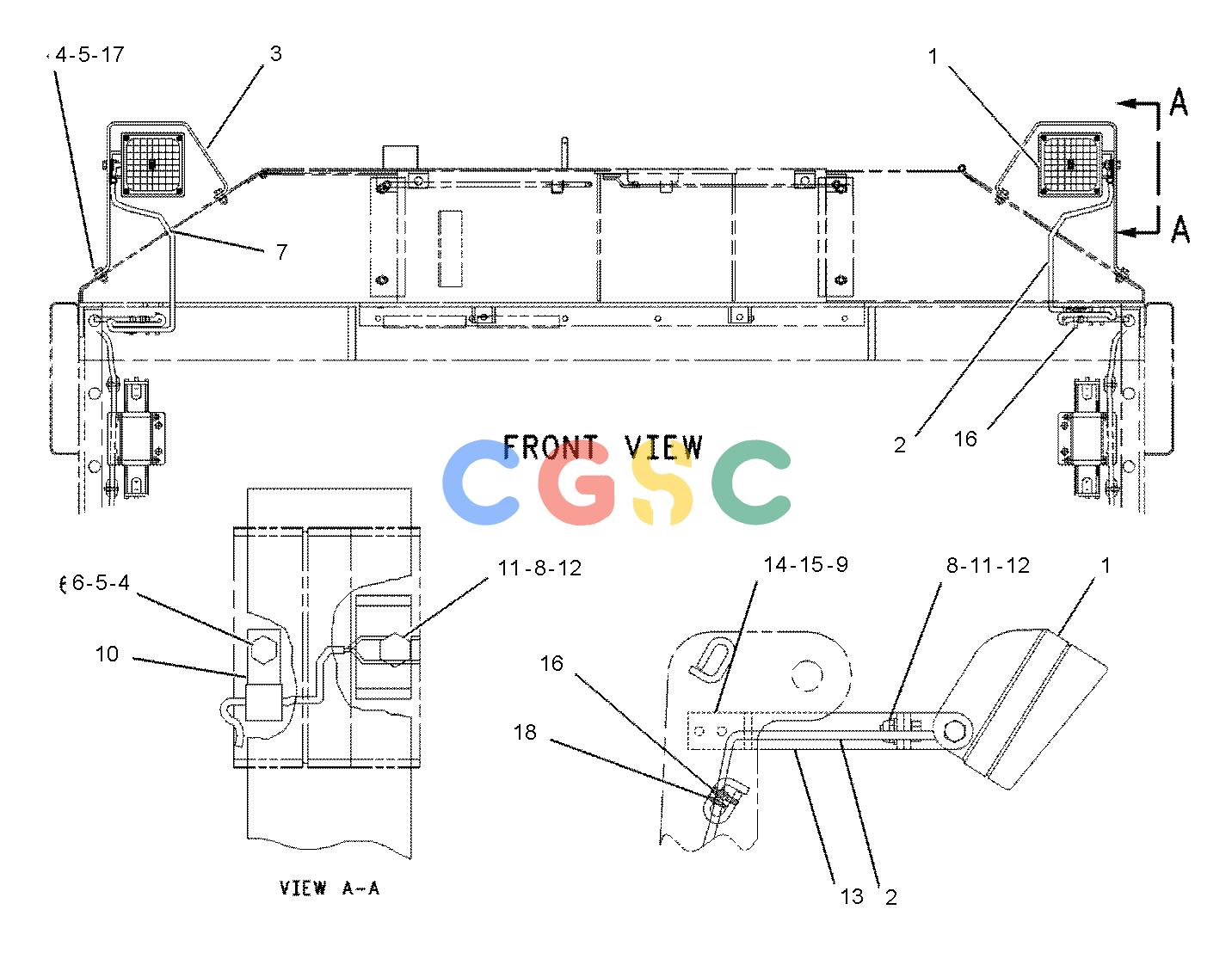

| 1. | 9X-1439Y | [4] | LAMP GP-FLOOD(24-VOLT) | |
| 2. | 108-5699 | [4] | HARNESS AS-LIGHTING(FLOODLIGHTS) | |
| | | | (EACH INCLUDES) |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 2L-8076 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | |
| 3. | 109-0329 | [2] | PLATE | |
| 4. | 4L-6454 | [6] | BOLT(3/8-16X1-IN) | |
| 5. | 6V-8801 | [6] | NUT(3/8-16-THD) | |
| 6. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 7. | 5H-9743 | [2] | GROMMET | |
| 8. | 8T-5360 | [4] | WASHER(12X22.5X2.5-MM THK) | |
| 9. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 4D-8123 | [2] | CLIP | |
| 11. | 8T-9380 | [4] | BOLT(7/16-14X1-IN) | |
| 12. | 7X-0447 | [4] | NUT(7/16-14-THD) | |
| 13. | 118-4317 | [2] | PLATE | |
| 14. | 5P-2675 | [4] | BOLT(1/4-20X1.75-IN) | |
| 15. | 6V-8185 | [4] | NUT(1/4-20-THD) | |
| 16. | 7K-1181 | [15] | STRAP-CABLE | |
| 17. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 18. | 3S-2093 | [8] | STRAP-CABLE | |
| | Y | | SEPARATE ILLUSTRATION |
