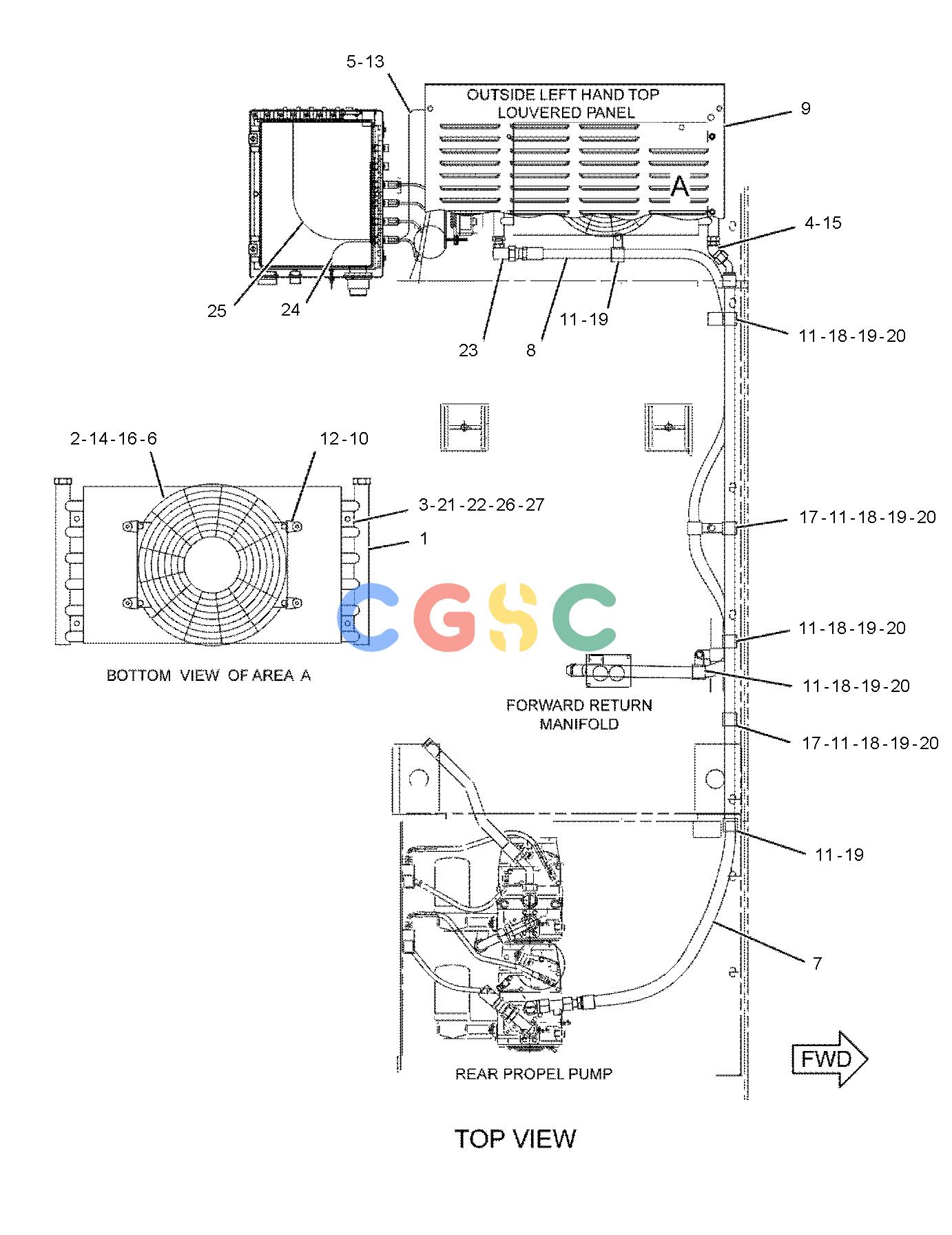

| 1. | 141-7572 | [1] | COOLER AS-HYDRAULIC OIL | |
| 2. | 141-7574 | [1] | FAN AS | |
| 3. | 138-8069 | [2] | MOUNTING GP-HYD OIL COOLER | |
| 4. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 106-8704 | [1] | SUPPRESSOR AS-ARC | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 9X-1386BE | | SLEEVE | |
| 7. | 162-0454I | [1] | HOSE AS | |
| 8. | 162-0455I | [1] | HOSE AS | |
| 9. | 162-3310 | [1] | PANEL | |
| 10. | 142-2659 | [1] | KIT-FAN MOUNTING | |
| 11. | 6V-1889 | [12] | CLIP(LOOP) | |
| 12. | 142-5049 | [1] | BRACKET-MOUNTING | |
| 13. | 162-0457 | [1] | HARNESS AS(FAN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 14. | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 15. | 5S-7379 | [1] | BOLT(3/8-16X0.875-IN) | |
| 16. | 9W-0844 | [2] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| 17. | 2S-8753 | [2] | CLIP | |
| 18. | 4L-6454 | [6] | BOLT(3/8-16X1-IN) | |
| 19. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 20. | 8T-4896 | [12] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 21. | 8T-8911 | [4] | BOLT(5/16-18X2-IN) | |
| 22. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 24. | 161-9727 | [1] | WIRE AS | |
| 25. | 161-9726 | [1] | WIRE AS | |
| 26. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 27. | 155-2261 | [1] | WEDGE-PLUG LOCK(2-PIN) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
