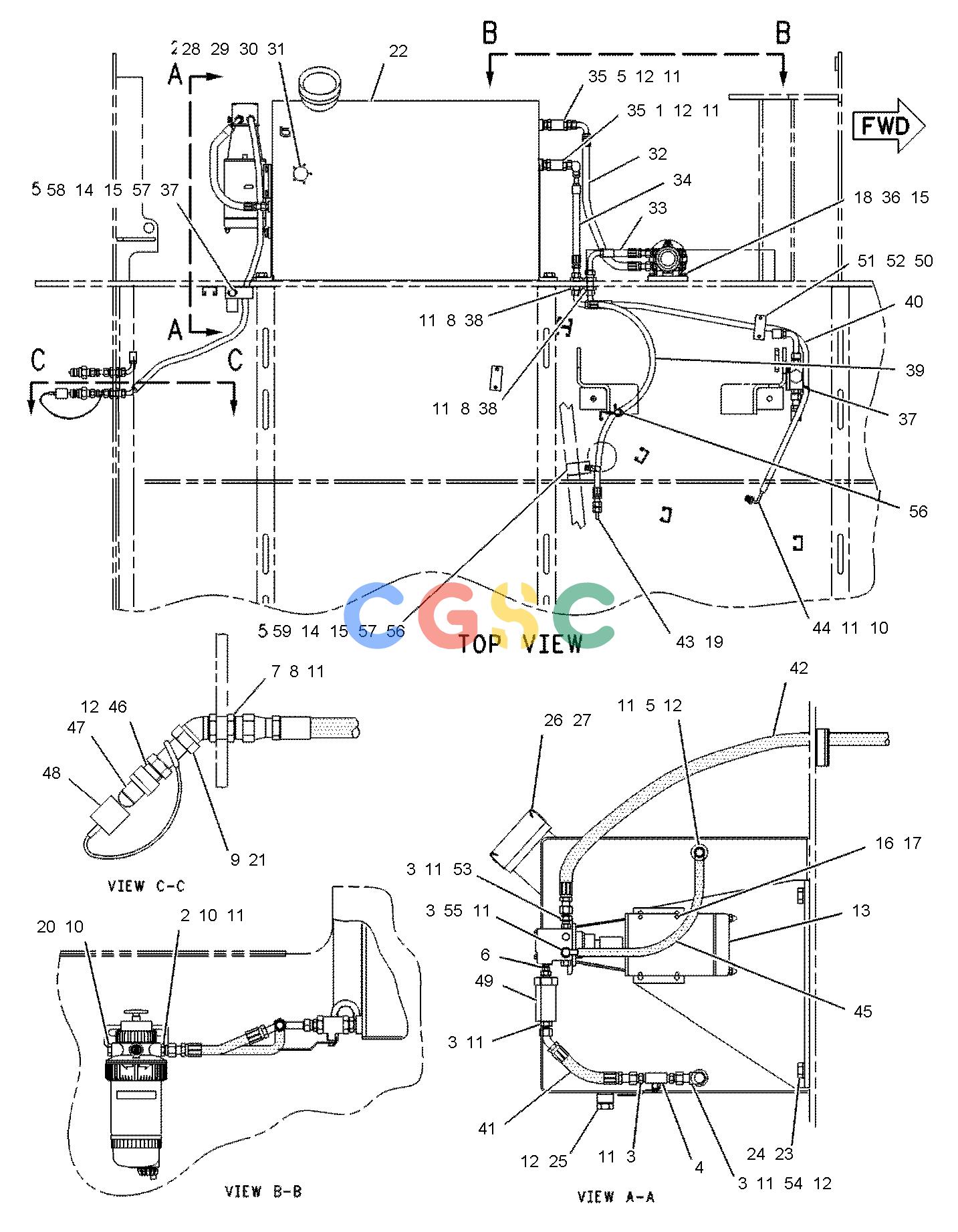

| 1. | 6V-8723 | [1] | ELBOW | |
| 2. | 8T-5043 | [2] | ADAPTER | |
| 3. | 8C-6868 | [5] | CONNECTOR | |
| 4. | 129-3078 | [1] | VALVE AS-SHUTOFF | |
| 5. | 6V-8634 | [2] | CONNECTOR | |
| 6. | 5P-8998 | [1] | FITTING | |
| 7. | 6V-8987 | [1] | ELBOW | |
| 8. | 6V-9168 | [3] | NUT(11/16-16-THD) | |
| 9. | 3J-1907 | [1] | SEAL-O-RING | |
| 10. | 1J-9671 | [5] | SEAL-O-RING | |
| 11. | 6V-8397 | [18] | SEAL-O-RING | |
| 12. | 3K-0360 | [8] | SEAL-O-RING | |
| 13. | 149-5380Y | [1] | PUMP GP-FUEL TRANSFER | |
| 14. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 15. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 16. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 17. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 18. | 127-6449Y | [1] | PUMP GP-FUEL PRM & WATER SEP | |
| 19. | 4J-5477 | [1] | SEAL-O-RING | |
| 20. | 3K-8460 | [2] | PLUG(1/2-20-THD) | |
| 21. | 5E-8837 | [1] | ADAPTER | |
| 22. | 117-1835 | [1] | TANK AS-FUEL | |
| | 7T-1099 | [5] | LINK | |
| | 9X-2206 | [1] | ADAPTER AS-FUEL | |
| 23. | 7X-0343 | [4] | BOLT(5/8-11X1.25-IN) | |
| 24. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 25. | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 26. | 7X-7700 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 9X-2205 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES FILTER AS., SCREWS, GASKETS & VALVE) |
| | 9X-8600 | [1] | SEAL-O-RING | |
| 27. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 28. | 7R-9920 | [1] | SENDER AS-FUEL LEVEL | |
| | 9X-8491 | [1] | NUT(10-32-THD) | |
| | 9X-8862 | [1] | LOCKWASHER | |
| 29. | 8C-7974 | [1] | GASKET | |
| 30. | 8L-6521 | [5] | BOLT(10-32X0.5-IN) | |
| 31. | 4B-4274 | [5] | WASHER(5.5X13X1.2-MM THK) | |
| 32. | 087-0334I | [1] | HOSE AS | |
| 33. | 125-0970I | [1] | HOSE AS | |
| 34. | 6Y-4045I | [1] | HOSE AS | |
| 35. | 8T-0081 | [2] | VALVE-BALL | |
| 36. | 9B-7237 | [2] | BOLT(3/8-16X1.25-IN) | |
| 37. | 8M-2773 | [1] | CLIP(LOOP) | |
| 38. | 6V-8994 | [2] | UNION(STRAIGHT) | |
| 39. | 147-8859I | [1] | HOSE AS | |
| 40. | 108-9651I | [1] | HOSE AS | |
| 41. | 149-8103I | [1] | HOSE AS | |
| 42. | 4E-5409I | [1] | HOSE AS | |
| 43. | 106-4771 | [1] | TUBE AS | |
| 44. | 7X-0901 | [1] | ELBOW | |
| 45. | 087-0892I | [1] | HOSE AS | |
| 46. | 8T-9925 | [1] | BUSHING-TERMINAL(9/16-18 STR-THD) | |
| 47. | 5R-6306 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 48. | 5R-6302 | [1] | CAP-DUST | |
| 49. | 119-0072 | [1] | FILTER GP-FUEL | |
| 50. | 7V-5626 | [2] | CLAMP | |
| 51. | 7V-5628 | [1] | PLATE | |
| 52. | 4M-5282 | [2] | BOLT(1/4-20X1.5-IN) | |
| 53. | 5H-8936 | [1] | ADAPTER | |
| 54. | 9X-2091 | [1] | ELBOW(SWIVEL) | |
| 55. | 8C-8988 | [1] | ELBOW | |
| 56. | 8M-2770 | [2] | CLIP(LOOP) | |
| 57. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 58. | 1S-0994 | [1] | CLIP(LOOP) | |
| 59. | 5P-7854 | [1] | CLIP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
