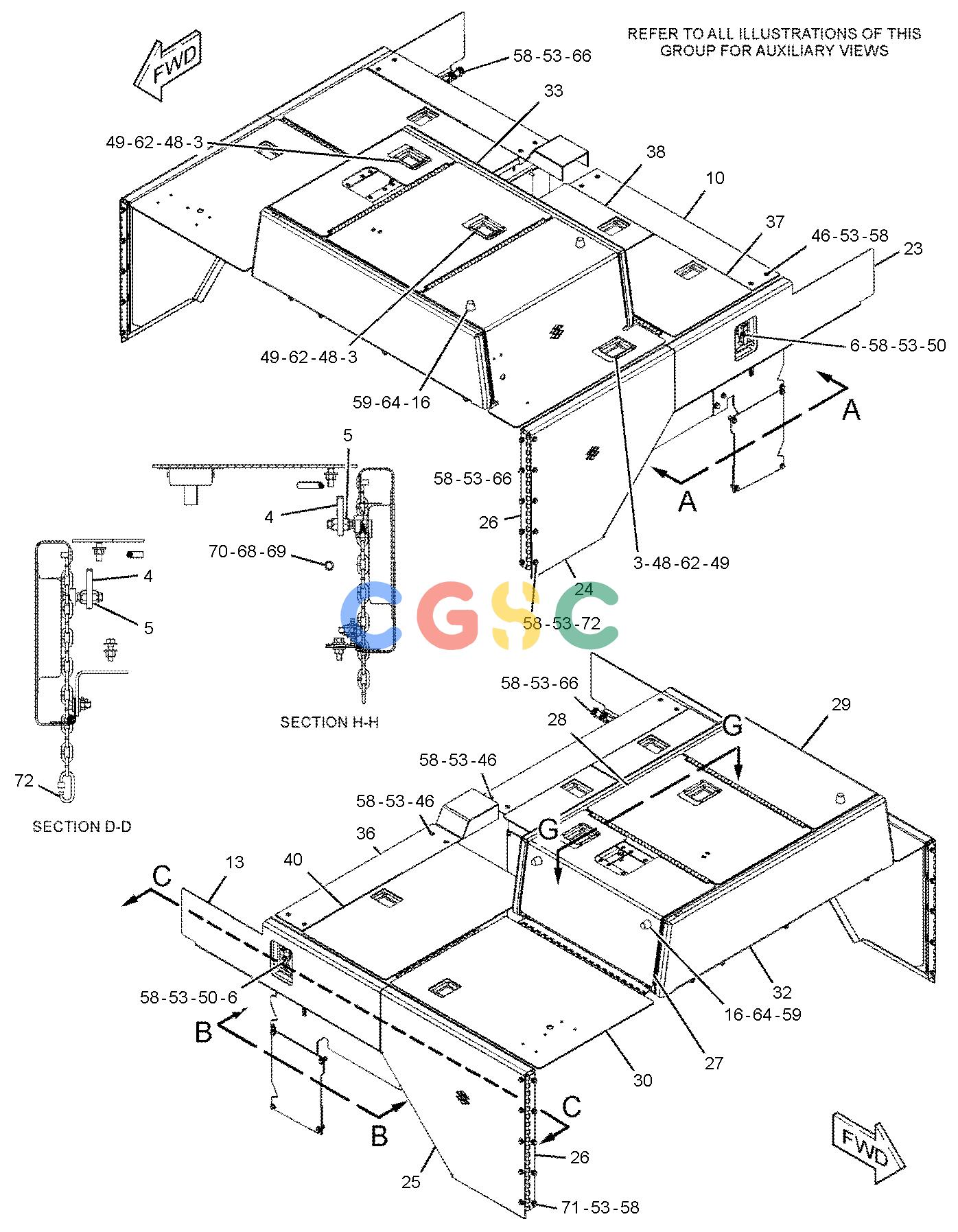

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3B-4618 | [5] | PIN-COTTER | |
| 2. | 7R-9612 | [1] | ROD | |
| 3. | 7X-2484 | [3] | LATCH-HANDLE | |
| 4. | 8T-1579 | [2] | PLATE | |
| 5. | 8T-9496 | [4] | LOCKNUT(9/16-18-THD) | |
| 6. | 8Y-4000J | [2] | LATCH AS(T-BAR, COMPARTMENT) | |
| 7. | 9G-9154 | [1] | CLIP | |
| 8. | 104-2231 | [2] | NUT-SPRING | |
| 9. | 108-7756 | [4] | ROD | |
| 10. | 108-7849 | [1] | PLATE | |
| 11. | 111-1777 | [12] | BUMPER-RUBBER | |
| 12. | 111-1778 | [4] | BUMPER-RUBBER | |
| 13. | 117-1137 | [1] | PANEL AS-SIDE(RH) | |
| 9W-8940 | [1] | PLATE | ||
| 195-7944 | [2] | HINGE | ||
| 14. | 117-1251 | [1] | PLATE | |
| 15. | 121-2942 | [1] | ANGLE | |
| 16. | 138-7125 | [4] | BUMPER | |
| 17. | 139-8425 | [1] | PLATE | |
| 18. | 139-8426 | [1] | COVER | |
| 19. | 139-8427 | [1] | COVER | |
| 20. | 139-8428 | [2] | PLATE | |
| 21. | 140-2244 | [1] | PLATE | |
| 22. | 152-1061 | [2] | BAR | |
| 23. | 163-0308 | [1] | PLATE AS(LH) | |
| 24. | 170-8559 | [1] | PANEL AS(LH) | |
| 7V-2882 | [1] | PLATE AS | ||
| 25. | 170-8560 | [1] | PANEL AS(RH) | |
| 7V-2882 | [1] | PLATE AS | ||
| 26. | 192-2907 | [2] | HINGE | |
| 27. | 240-6759 | [1] | PANEL AS | |
| 28. | 240-6762 | [1] | PANEL AS | |
| 29. | 240-6764 | [1] | PANEL AS | |
| 30. | 240-6770 | [1] | PANEL AS | |
| 31. | 240-6783 | [1] | ANGLE | |
| 32. | 240-6788 | [1] | PANEL AS | |
| 33. | 240-6789 | [1] | PANEL AS | |
| 34. | 241-9123 | [1] | SUPPORT AS | |
| 35. | 241-9124 | [1] | SUPPORT AS | |
| 36. | 241-9125 | [1] | PLATE AS | |
| 37. | 242-8388 | [1] | PANEL AS | |
| 38. | 242-8390 | [1] | PANEL AS | |
| 39. | 242-8394 | [1] | ANGLE | |
| 40. | 244-6935 | [1] | PANEL AS | |
| 41. | 251-7376 | [1] | PLATE | |
| 42. | 251-8199 | [1] | BRACKET | |
| 43. | 258-9883 | [4] | RUBBER | |
| 44. | 258-9884 | [1] | RUBBER | |
| 45. | 030-7571 | [17] | BOLT(3/8-16X1-IN) | |
| 46. | 030-7573 | [8] | BOLT(3/8-16X1.5-IN) | |
| 47. | 0S-1591 | [4] | BOLT(3/8-16X1.5-IN) | |
| 48. | 0S-1615 | [12] | BOLT(1/4-20X0.75-IN) | |
| 49. | 2D-6235 | [12] | LOCKNUT(1/4-20-THD) | |
| 50. | 4L-6454 | [10] | BOLT(3/8-16X1-IN) | |
| 51. | 4L-9337 | [1] | BOLT(3/8-16X1.5-IN) | |
| 52. | 5M-3062 | [11] | BOLT(3/8-16X0.75-IN) | |
| 53. | 5P-1075 | [135] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 54. | 5P-2228 | [2] | BOLT(1/2-13X1-IN) | |
| 55. | 5P-2566 | [12] | BOLT(1/2-13X1.5-IN) | |
| 56. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 57. | 6V-8188 | [12] | NUT(1/2-13-THD) | |
| 58. | 6V-8801 | [79] | NUT(3/8-16-THD) | |
| 59. | 6V-9189M | [4] | LOCKNUT(M8X1.25-THD) | |
| 60. | 7D-9708 | [4] | BOLT-SPECIAL | |
| 61. | [1] | PLATE | ||
| 62. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 63. | 8T-4223 | [31] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 64. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 65. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 66. | 9B-7237 | [34] | BOLT(3/8-16X1.25-IN) | |
| 67. | 6V-5746D | TRIM(39-CM) | ||
| 68. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 69. | 6V-8185 | [1] | NUT(1/4-20-THD) | |
| 70. | 4M-5282 | [1] | BOLT(1/4-20X1.5-IN) | |
| 71. | 8T-2502 | [10] | BOLT(3/8-16X1.125-IN) | |
| 72. | 6R-1941 | [1] | CONNECTOR | |
| D | ORDER BY THE METER | |||
| J | REQUIRES 5P8500 KEY | |||
| M | METRIC PART | |||
