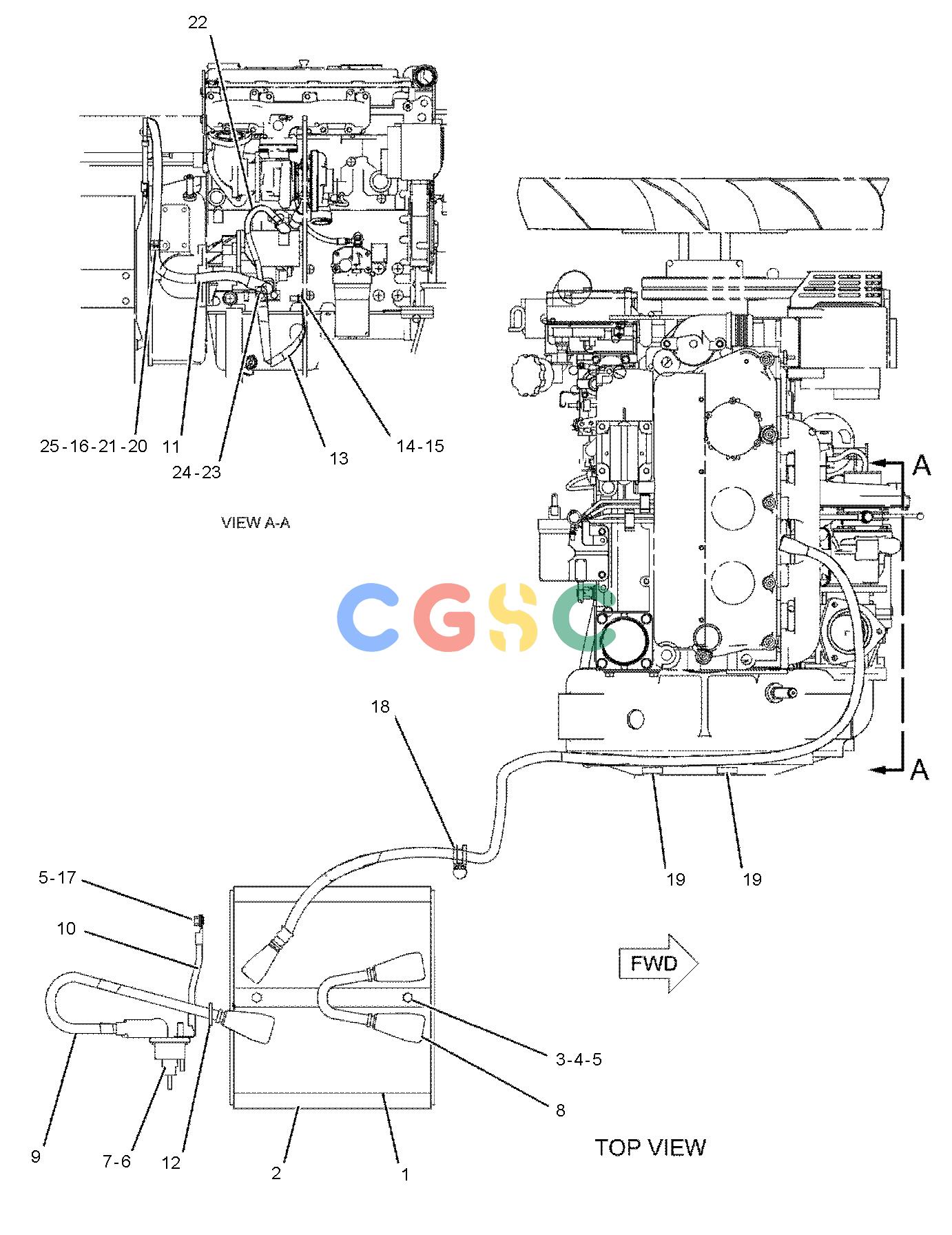

| 1. | 115-2422 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| 2. | 108-6258 | [1] | BRACKET AS-BATTERY | |
| 3. | 7L-7524 | [2] | BOLT(3/8-16X10.25-IN) | |
| 4. | 3K-6060 | [2] | LOCKNUT(3/8-16-THD) | |
| 5. | 8T-4896 | [5] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 6. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 7. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY) | |
| 8. | 117-1838 | [1] | CABLE AS | |
| | 5P-0760E | | CABLE(0-GA, RED)(20-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 8T-9758 | [1] | TERMINAL AS(POSITIVE) | |
| | 7X-1169 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | | | (EACH TERMINAL AS-BATTERY INCLUDES) |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 9. | 114-6439 | [1] | CABLE AS | |
| | 5P-0746E | | CABLE(0-GA, BLACK)(48-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK) | |
| | 030-1707 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| | 7X-1169 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 10. | 114-6437 | [1] | CABLE AS | |
| | 5P-0746E | | CABLE(0-GA, BLACK)(19-CM) | |
| | 9X-0195 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| | 030-1707 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| 11. | 110-9125 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(160-CM) | |
| | 5P-0695E | | CONDUIT(135-CM) | |
| | 1S-4915 | [2] | LINER(CONDUIT) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 8T-2225BE | | TUBE-HEAT SHRINK(25.4-MM DIA) | |
| 12. | 3P-5414 | [1] | GROMMET | |
| 13. | 6Y-6584 | [1] | STRAP AS-GROUND | |
| 14. | 6V-8188 | [1] | NUT(1/2-13-THD) | |
| 15. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 3J-4818 | [1] | LOCKWASHER(EXTERNAL TOOTH) | |
| 17. | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 18. | 4P-8134 | [1] | CLIP(LADDER) | |
| 19. | 4P-7581 | [2] | CLIP(LADDER) | |
| 20. | 4P-7429 | [1] | CLIP(LADDER) | |
| 21. | 8T-9080M | [1] | BOLT-SOCKET HEAD(M12X1.75X20-MM) | |
| 22. | 2G-5786 | [1] | CABLE AS | |
| | 5P-0744E | | CABLE(00-GA, BLACK)(48-CM) | |
| | 5P-2600 | [1] | RING-TERMINAL(000-GA, 1/2-IN SCREW) | |
| | 035-0425 | [1] | RING-TERMINAL(000-GA, 3/8-IN SCREW) | |
| 23. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 24. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 7K-1181 | [1] | STRAP-CABLE | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
