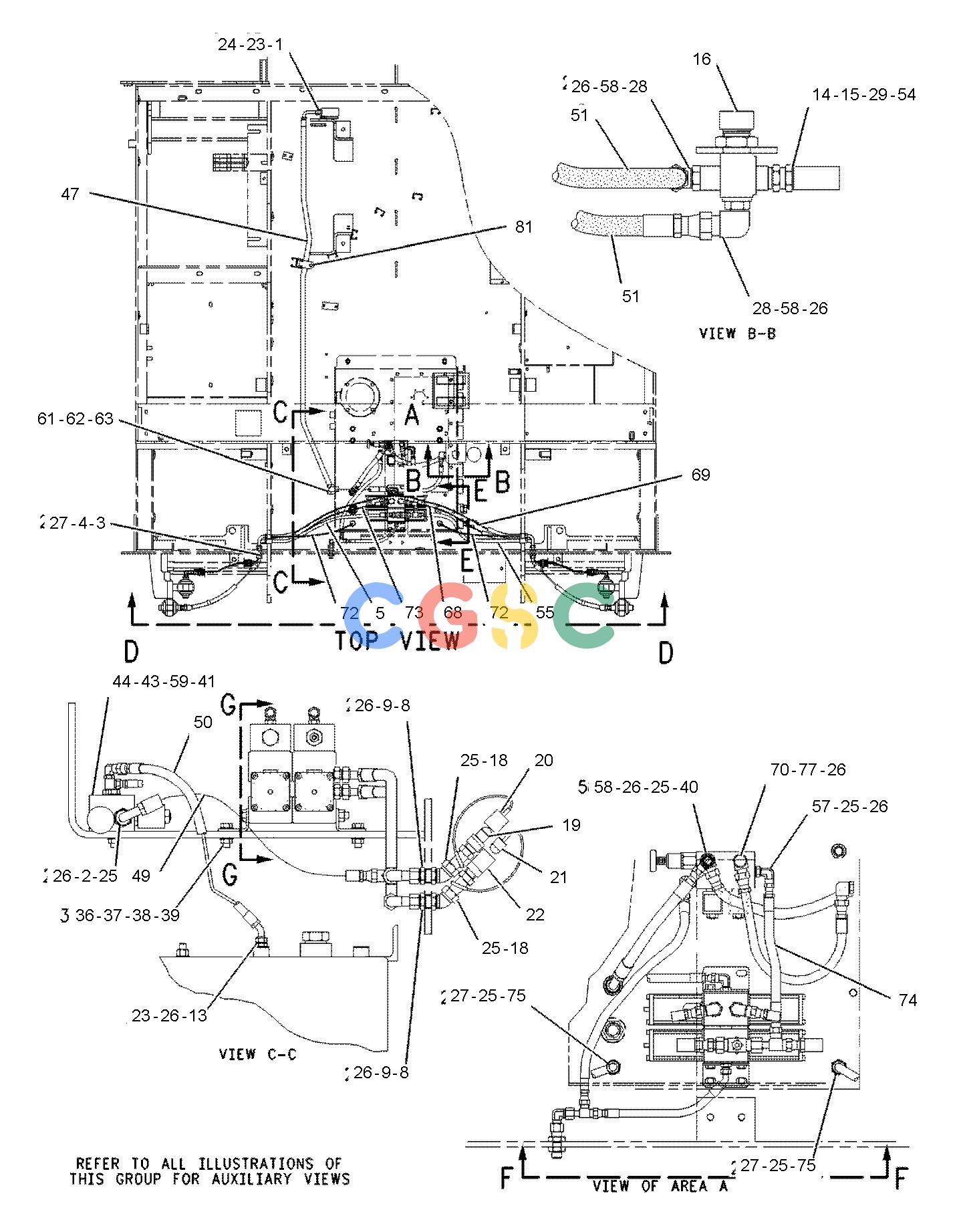

| 1. | 6V-8639 | [2] | CONNECTOR | |
| 2. | 6V-8636 | [2] | CONNECTOR | |
| 3. | 6V-8993 | [8] | UNION | |
| 4. | 2P-1279 | [8] | LOCKNUT(9/16-18-THD) | |
| 5. | 8Q-2754 | [1] | HOSE AS | |
| 6. | 6V-8627 | [4] | ELBOW | |
| 7. | 6V-8723 | [4] | ELBOW | |
| 8. | 6V-8987 | [2] | ELBOW | |
| 9. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 10. | 6V-9836 | [2] | TEE-SWIVEL | |
| 11. | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 12. | 6V-9843 | [1] | TEE | |
| 13. | 6V-8634 | [3] | CONNECTOR | |
| 14. | 8T-0855 | [1] | GAUGE GP-PRESSURE(SCREED COUNTERBALANCE) | |
| 15. | 6V-0852 | [1] | CAP-DUST | |
| 16. | 154-1425 | [1] | ISOLATOR-GAUGE | |
| 17. | 8T-6876 | [1] | ELBOW | |
| 18. | 5E-8837 | [2] | ADAPTER | |
| 19. | 5R-6867 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 20. | 5R-5677 | [1] | CAP-DUST(DUST) | |
| 21. | 5R-5676 | [1] | PLUG-DUST | |
| 22. | 5R-6868 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| 23. | 3K-0360 | [13] | SEAL-O-RING | |
| 24. | 6V-8398 | [4] | SEAL-O-RING | |
| 25. | 3J-1907 | [13] | SEAL-O-RING | |
| 26. | 6V-8397 | [33] | SEAL-O-RING | |
| 27. | 4J-5477 | [23] | SEAL-O-RING | |
| 28. | 8C-6868 | [2] | CONNECTOR | |
| 29. | 6V-3990 | [1] | COUPLER AS | |
| 30. | 203-4273Y | [2] | CYLINDER GP-HYDRAULIC(SCREED HOIST) | |
| 31. | 106-1879 | [2] | PIN | |
| 32. | 3B-4629 | [4] | PIN-COTTER | |
| 33. | 203-4275CY | [1] | CYLINDER GP-HYDRAULIC(AUGER HOIST, RH) | |
| 34. | 105-7206 | [2] | PIN | |
| 35. | 3B-4640 | [4] | PIN-COTTER | |
| 36. | 134-4720Y | [1] | VALVE GP-BANK(AUGER HOIST, SCREED HOIST) | |
| 37. | 8T-2502 | [4] | BOLT(3/8-16X1.125-IN) | |
| 38. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 39. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 40. | 6V-8781 | [1] | TEE | |
| 41. | 169-0166Y | [1] | VALVE GP-COUNTERBALANCE(SCREED) | |
| 42. | 6V-8934 | [1] | ADAPTER | |
| 43. | 6V-8185 | [2] | NUT(1/4-20-THD) | |
| 44. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 45. | 133-0158 | [2] | PIN AS | |
| 46. | 8T-8908 | [2] | BOLT(1/4-20X1-IN) | |
| 47. | 154-2837I | [1] | HOSE AS | |
| 48. | 154-2853I | [1] | HOSE AS | |
| 49. | 106-0909I | [1] | HOSE AS | |
| 50. | 6Y-4045I | [1] | HOSE AS | |
| 51. | 111-4660I | [2] | HOSE AS | |
| 52. | 168-4988 | [2] | ELBOW | |
| 53. | 154-1420BE | | SLEEVE | |
| 54. | 6V-3989 | [1] | FITTING | |
| 55. | 187-2058I | [1] | HOSE AS | |
| 56. | 3S-2093 | [16] | STRAP-CABLE | |
| 57. | 6V-9001 | [1] | ELBOW | |
| 58. | 6V-9850 | [5] | ELBOW | |
| 59. | 7X-0266 | [2] | BOLT(1/4-20X3-IN) | |
| 60. | 153-9474I | [4] | HOSE AS | |
| 61. | 7R-7908 | [2] | CLAMP | |
| 62. | 4M-5282 | [2] | BOLT(1/4-20X1.5-IN) | |
| 63. | 7V-5628 | [1] | PLATE(TOP) | |
| 64. | 6V-8625 | [1] | ELBOW | |
| 65. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 66. | 154-9772I | [2] | HOSE AS | |
| 67. | 130-8233I | [1] | HOSE AS | |
| 68. | 187-2061I | [1] | HOSE AS | |
| 69. | 187-2062I | [1] | HOSE AS | |
| 70. | 6V-9200 | [1] | ELBOW | |
| 71. | 172-1108I | [2] | HOSE AS | |
| 72. | 187-2060I | [2] | HOSE AS | |
| 73. | 187-2059I | [1] | HOSE AS | |
| 74. | 149-7155I | [1] | HOSE AS | |
| 75. | 6V-8641 | [2] | CONNECTOR | |
| 76. | 177-2215 | [6] | STRAP-DUAL CLAMP | |
| 77. | 3J-7354 | [1] | SEAL-O-RING | |
| 78. | 203-4276CY | [1] | CYLINDER GP-HYDRAULIC(AUGER HOIST, LH) | |
| 79. | 133-0156 | [4] | SPACER(25.8X31.8X6.3-MM THK) | |
| 80. | 112-9442I | [1] | HOSE AS | |
| 81. | 5E-9375 | [1] | CLAMP | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
