Pos.	Part No	Qty	Parts name
1.	135-0220Y	[2]	CYLINDER GP-HYDRAULIC(HOPPER)
2.	103-1501	[2]	PIN AS
3.	125-5849	[2]	TUBE AS
4.	4V-0611	[8]	CLAMP
5.	4V-0612	[4]	PLATE
6.	077-8184	[1]	CLAMP
7.	7X-0440	[4]	BOLT(5/16-18X1.75-IN)
8.	8T-4896	[1]	WASHER-HARD(10.2X18.5X2.5-MM THK)
9.	129-4417I	[1]	HOSE AS
10.	154-2858I	[1]	HOSE AS
11.	086-8656	[2]	NUT
12.	1G-8765I	[1]	HOSE AS
13.	149-5452	[4]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8994	[1]	UNION(STRAIGHT)
14.	148-8318	[5]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
15.	6V-9168	[8]	NUT(11/16-16-THD)
16.	5P-4325	[1]	CLIP
17.	7R-9144	[1]	MANIFOLD-RETURN
18.	5P-2675	[2]	BOLT(1/4-20X1.75-IN)
19.	129-4418I	[1]	HOSE AS
20.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
21.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
22.	148-8360	[1]	ELBOW AS
	6V-9182	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
23.	5M-3062	[1]	BOLT(3/8-16X0.75-IN)
24.	148-8363	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9876	[1]	ELBOW
25.	148-8366	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
26.	148-8372	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8721	[1]	ELBOW
27.	148-8374	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8723	[1]	ELBOW
28.	148-8378	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
29.	125-5848	[1]	TUBE AS
30.	4L-6454	[1]	BOLT(3/8-16X1-IN)
31.	133-3804I	[1]	HOSE AS
32.	148-8407	[2]	PLUG AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	9S-4191	[1]	PLUG(9/16-18-THD)
33.	117-3247I	[1]	HOSE AS
34.	5G-8290I	[2]	HOSE AS
35.	6V-8801	[1]	NUT(3/8-16-THD)
36.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
37.	8M-3267	[2]	SCREW-HEX SOCKET(3/8-16X0.75-IN)
38.	148-8411	[1]	PLUG AS
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
39.	8M-2773	[2]	CLIP(LOOP)
40.	148-8433	[1]	TEE AS
	6V-8397	[2]	SEAL-O-RING
	6V-9836	[1]	TEE-SWIVEL
41.	111-6918I	[1]	HOSE AS
42.	5P-1075	[1]	WASHER-HARD(10.2X22.5X3-MM THK)
43.	5E-0114	[2]	CLAMP
44.	2H-3934	[1]	SEAL-O-RING
45.	6V-0852	[1]	CAP-DUST
46.	5E-9374	[3]	CLAMP AS
47.	6R-3744	[1]	CLAMP AS
48.	148-8435	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
49.	6R-3493I	[1]	HOSE AS
50.	154-4147I	[1]	HOSE AS
51.	129-4420I	[1]	HOSE AS
52.	119-7671I	[1]	HOSE AS
53.	156-4283	[1]	CONNECTOR AS
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-7926	[1]	CONNECTOR
54.	8I-0836Y	[1]	PUMP GP-PISTON(AUXILIARY)
55.	8T-4223	[2]	WASHER-HARD(13.5X25.5X3-MM THK)
56.	5P-2566	[2]	BOLT(1/2-13X1.5-IN)
57.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)(QUICK DISCONNECT)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
58.	205-7200	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	108-2144	[1]	ELBOW
59.	129-9667I	[1]	HOSE AS
60.	204-9815	[1]	ELBOW AS
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-1682	[1]	ELBOW
61.	154-4149I	[1]	HOSE AS
62.	154-4150I	[1]	HOSE AS
65.	3B-8489	[4]	FITTING-GREASE(1/8-27 PTF)
66.	115-7183Y	[2]	VALVE GP-CONTROL(RIGHT GRADE, HOPPER)
67.	9S-7382	[8]	BOLT-SOCKET HEAD(5/16-18X3.5-IN)
68.	8T-4205	[2]	WASHER-HARD(7.2X14.5X2-MM THK)
69.	177-2215	[5]	STRAP-DUAL CLAMP
70.	178-3620	[1]	STRAP-DUAL CLAMP
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

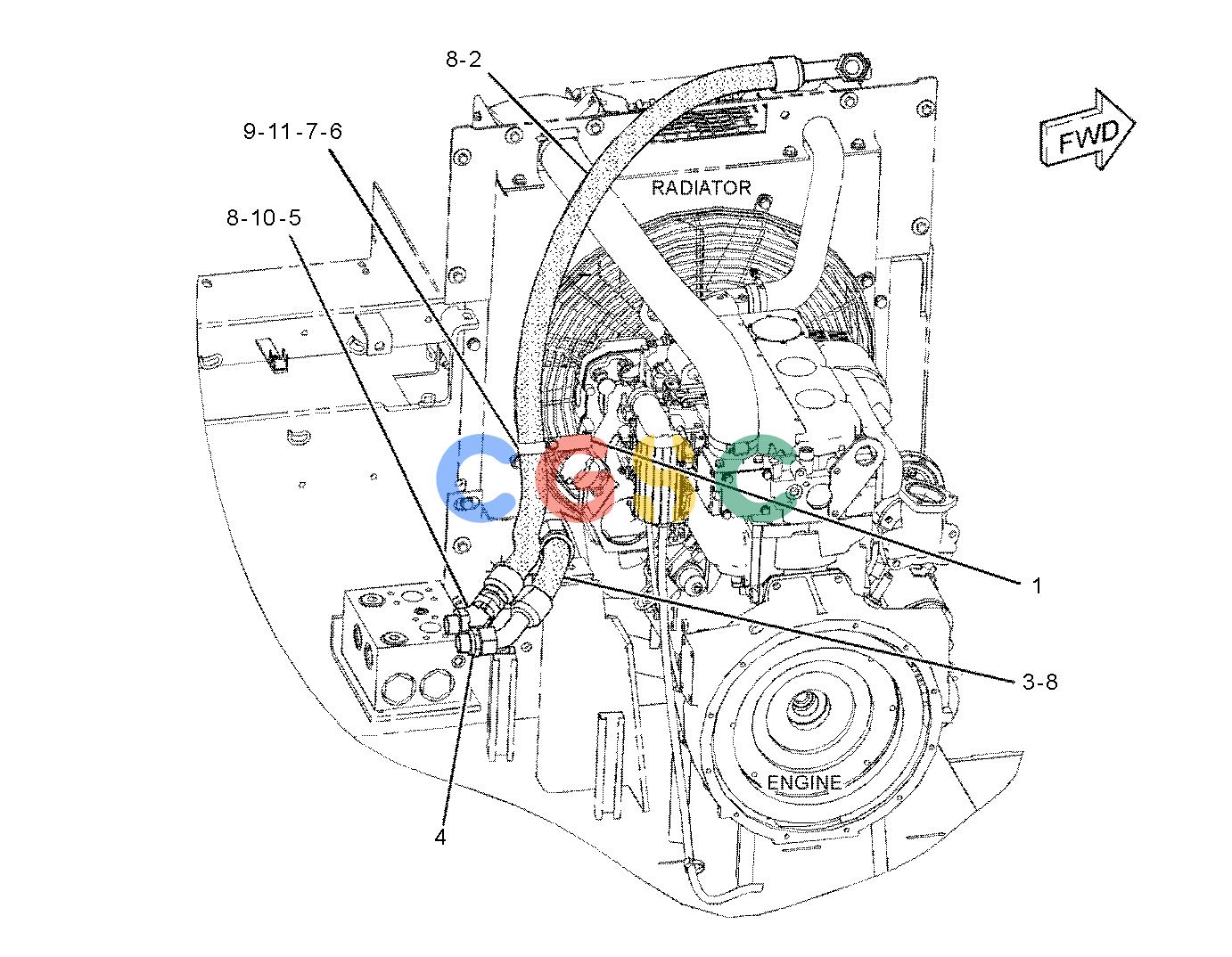

卡特零件查询（AP-650B） 257-4409: LINES GP-HOPPER
