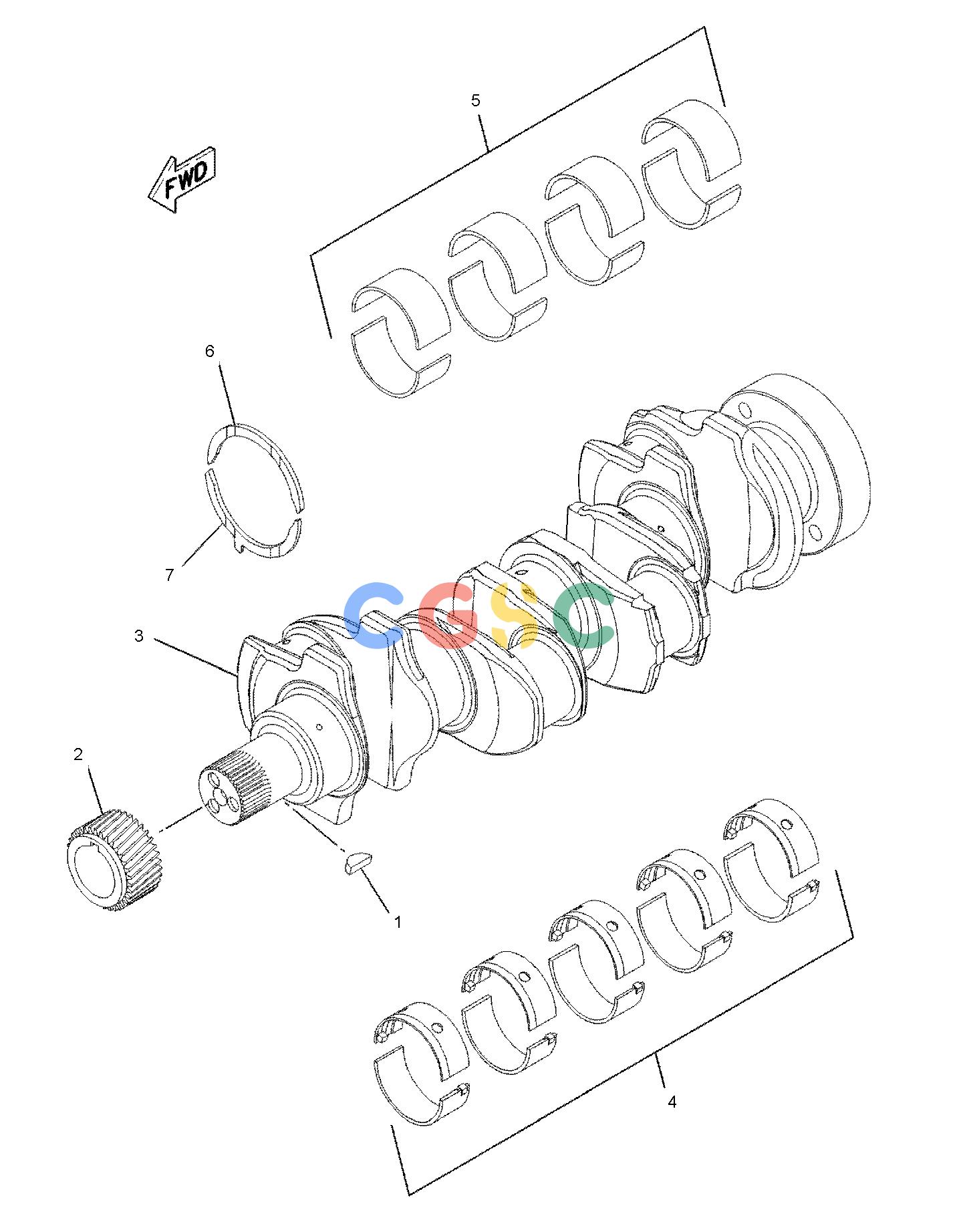

| 1. | 1B-8736 | [1] | KEY-WOODRUFF | |
| 2. | 216-8314 | [1] | GEAR-CRANKSHAFT(34-TEETH) | |
| 3. | 232-7400J | [1] | CRANKSHAFT GP(WITH SPLINE)(CONNECTING ROD, 63.48-MM DIA) | |
| 4. | 225-7772 | [1] | BEARING SET-MAIN(STANDARD) | |
| | 233-3784AB | | KIT-CRANKSHAFT BEARING(0.25-MM US) | |
| | 233-3785AB | | KIT-CRANKSHAFT BEARING(0.50-MM US) | |
| | 233-3786AB | | KIT-CRANKSHAFT BEARING(0.75-MM US) | |
| 5. | 225-7781 | [1] | BEARING SET-ROD(STANDARD) | |
| | 233-3788AB | | KIT-ROD BEARING(0.25-MM US) | |
| | 233-3789AB | | KIT-ROD BEARING(0.50-MM US) | |
| | AB | | KIT-ROD BEARING(0.75-MM US)(0.76-MM OS) |
| 6. | 032-9090 | [2] | WASHER-THRUST(STANDARD-UPPER) | |
| | 067-6873AB | | WASHER-THRUST(0.18-MM OS)(UPPER) | |
| 7. | 032-9091 | [2] | WASHER-THRUST(STANDARD-LOWER) | |
| | 067-6874AB | | WASHER-THRUST(0.18-MM OS)(LOWER) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | CHECK CONNECTING ROD JOURNAL TO ENSURE THIS IS THE CORRECT CRANKSHAFT |
