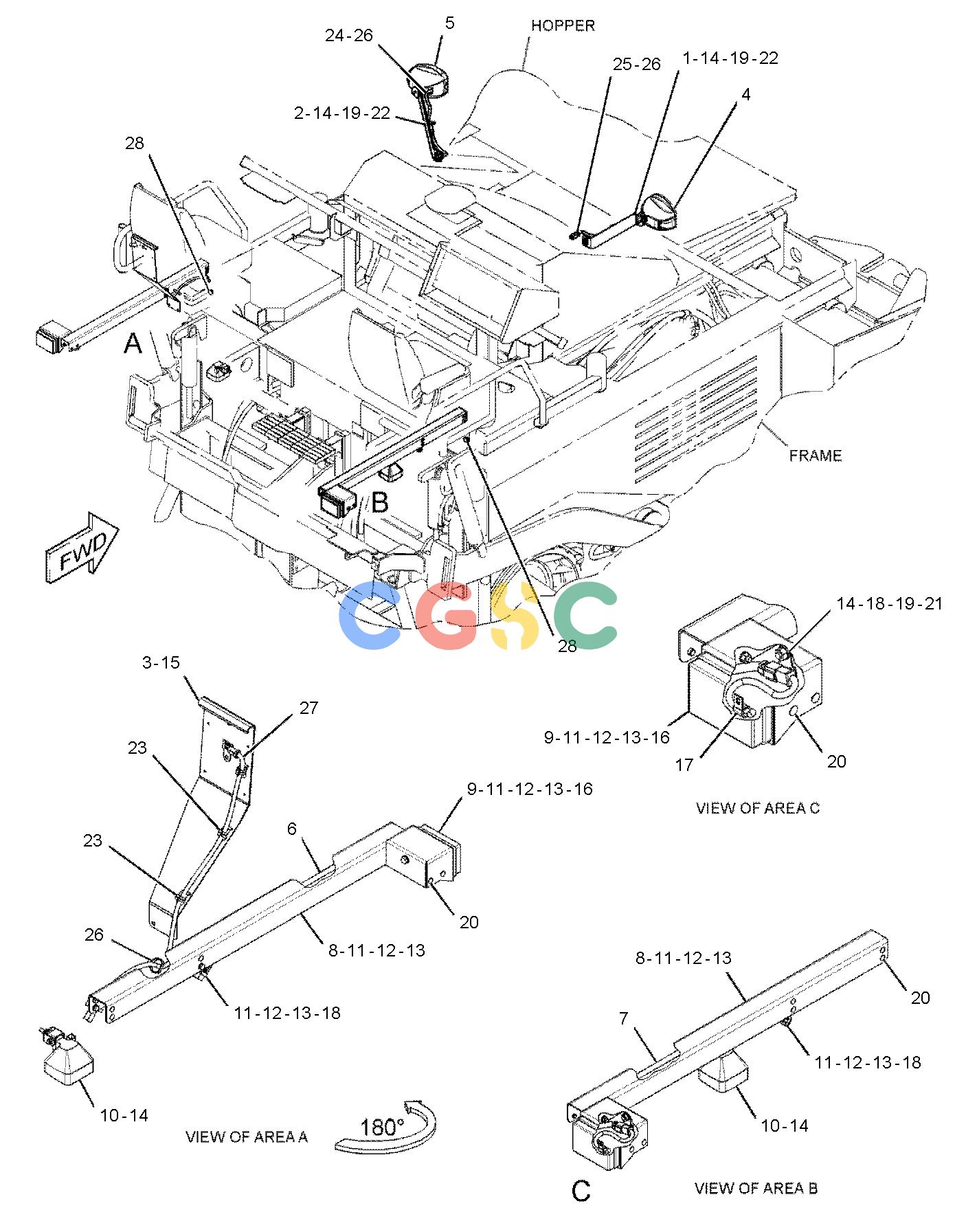

| 1. | 322-0840 | [1] | BRACKET AS | |
| 2. | 322-0841 | [1] | BRACKET AS | |
| 3. | 341-7365C | [1] | BRACKET AS | |
| 4. | 238-2797Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, RH) | |
| 5. | 238-2798Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, LH) | |
| 6. | 321-3849 | [1] | HARNESS AS-CHASSIS(LH) | |
| | 141-2759 | [1] | FUSE(5-AMPERE) | |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 7. | 321-3847 | [1] | HARNESS AS-CHASSIS(RH) | |
| | 141-2759 | [1] | FUSE(5-AMPERE) | |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 8. | 318-8746 | [2] | PLATE AS | |
| 9. | 307-3177 | [2] | BRACKET | |
| 10. | 234-4323Y | [2] | LAMP GP-FLOOD(24-VOLT)(LOW BEAM) | |
| 11. | 8T-4224 | [28] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 8T-4189M | [14] | BOLT(M8X1.25X20-MM) | |
| 13. | 5C-7261M | [14] | NUT(M8X1.25-THD) | |
| 14. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 15. | 259-0134Y | [1] | LAMP GP-REGISTRATION PLATE(24-VOLT) | |
| 16. | 252-7165Y | [2] | LAMP GP-SIGNAL(24-VOLT)(RH, LH, REAR) | |
| 17. | 8J-1256 | [2] | CLIP | |
| 18. | 130-5300 | [4] | CLIP | |
| 19. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 218-2529 | [14] | PLUG | |
| 21. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 22. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 23. | 3S-2093C | [22] | STRAP-CABLE | |
| 24. | 322-3261 | [1] | HARNESS AS-LIGHTING(LH) | |
| | 9X-3401 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 114-8843E | | SLEEVE-PLASTIC(20-CM) | |
| | 180-9340 | [5] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 25. | 322-3262 | [1] | HARNESS AS-LIGHTING(RH) | |
| | 9X-3401 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 114-8843E | | SLEEVE-PLASTIC(20-CM) | |
| | 180-9340 | [5] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 26. | 7K-1181 | [4] | STRAP-CABLE | |
| 27. | 341-7433C | [1] | HARNESS AS-REAR LIGHTING(PARK, TAIL, DASH) | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 28. | 9D-3767 | [2] | PLUG-BUTTON | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
