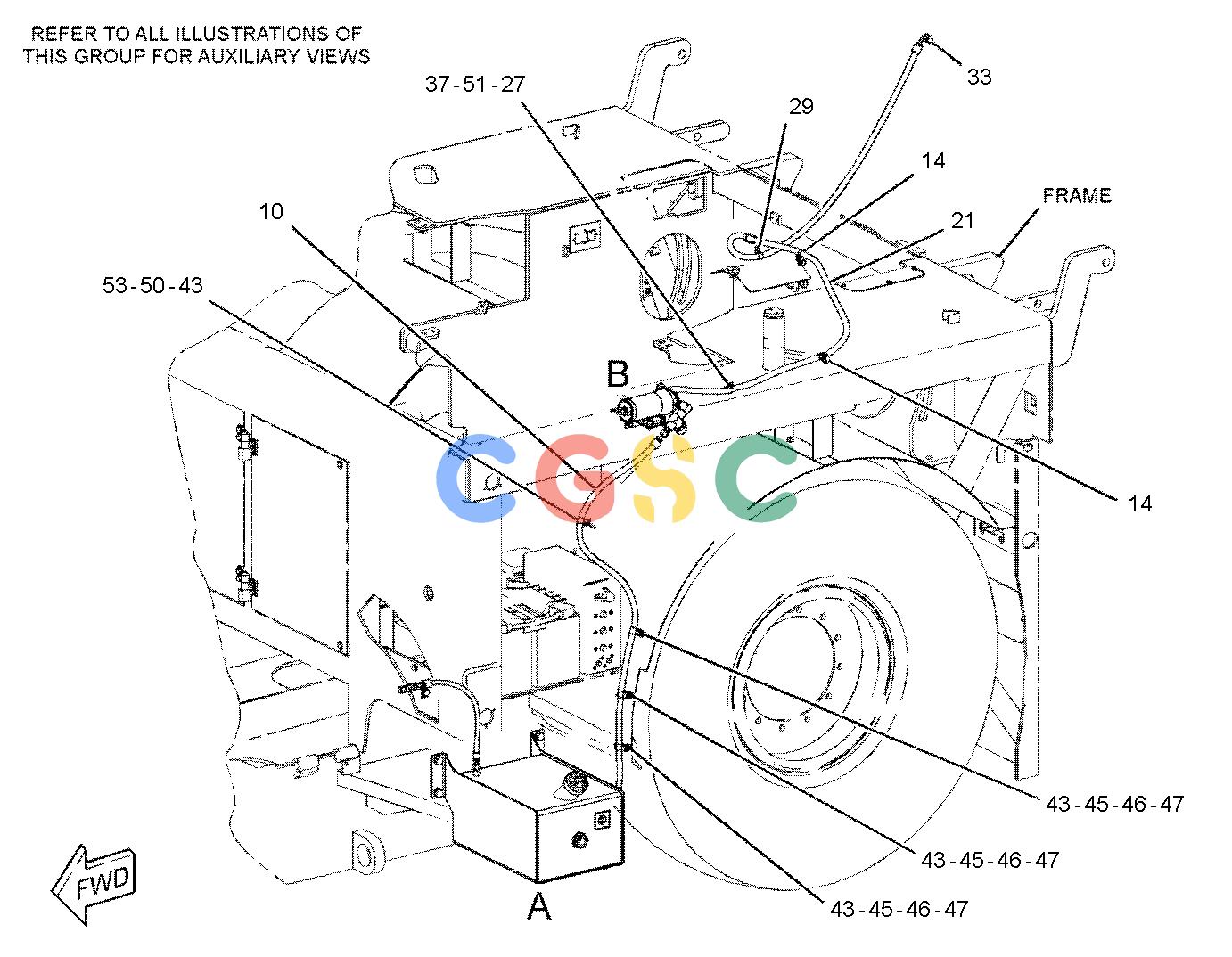

| 1. | 9X-1813E | | SLEEVE(28-CM) | |
| 2. | 5K-1568 | [1] | CAP-FILLER(WASHDOWN TANK) | |
| 3. | 6H-5139 | [1] | PLATE-PRESSURE | |
| 4. | 7X-7655J | [1] | VALVE AS-DRAIN(WATER TANK) | |
| 5. | 9R-7240 | [1] | GASKET | |
| 6. | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 7. | 9Y-9236 | [1] | GAUGE-SIGHT(WASHDOWN TANK) | |
| 8. | 106-2105 | [1] | ELBOW | |
| 9. | 111-4462I | [1] | HOSE AS | |
| 10. | 116-6083I | [1] | HOSE AS | |
| 11. | 140-3562 | [1] | STRAINER(WASHDOWN TANK) | |
| 12. | 164-5597 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6868 | [1] | CONNECTOR | |
| 13. | 171-5286 | [1] | BREATHER(WASHDOWN TANK) | |
| 14. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 15. | 201-7653 | [1] | PLATE | |
| 16. | 203-2059 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6869 | [1] | CONNECTOR | |
| 17. | 428-3734Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 18. | 268-1542 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6867 | [1] | CONNECTOR | |
| 19. | 278-7591 | [1] | FILM-IDENTIFICATION(WATER FOR WATER SPRAY) | |
| 20. | 287-7105 | [1] | PLATE | |
| 21. | 295-8658I | [1] | HOSE AS | |
| 22. | 356-1622 | [1] | TANK AS | |
| 23. | 366-4662 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 103-7268 | [1] | ADAPTER | |
| 24. | 003-2143 | [1] | ELBOW | |
| 25. | 003-9514 | [1] | COUPLING-PIPE | |
| 26. | 004-6683 | [1] | FITTING | |
| 27. | 095-0912 | [1] | CLIP | |
| 28. | 130-5300 | [1] | CLIP | |
| 29. | 134-3988 | [1] | CLIP(LOOP) | |
| 30. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 31. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 32. | 1S-1015 | [1] | CLIP | |
| 33. | 321-8612 | [1] | PLUG AS | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 34. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 35. | 3J-1907 | [1] | SEAL-O-RING | |
| 36. | 4B-9782 | [1] | BALL | |
| 37. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 38. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 39. | 5P-7701 | [1] | SEAL-O-RING | |
| 40. | 7I-2273M | [5] | BOLT(M5X0.8X16-MM) | |
| 41. | 6V-7743M | [4] | LOCKNUT(M6X1-THD) | |
| 42. | 7X-2548M | [1] | BOLT(M12X1.75X16-MM) | |
| 43. | 8M-2773 | [4] | CLIP(LOOP) | |
| 44. | 8T-0328 | [5] | WASHER-HARD(5.5X10X1-MM THK) | |
| 45. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 46. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 47. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 48. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 49. | 8T-4190M | [4] | BOLT(M16X2X25-MM) | |
| 50. | 099-3649M | [1] | BOLT(M8X1.25X40-MM) | |
| 51. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 52. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 53. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 54. | 8T-4971M | [4] | BOLT(M6X1X30-MM) | |
| 55. | 9H-6454 | [1] | GASKET | |
| 56. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 459-0644J | [1] | KIT-VALVE REPAIR | |
| | | | (INCLUDES SEAL STEM, RETAINING RING & O-RING SEALS) |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
