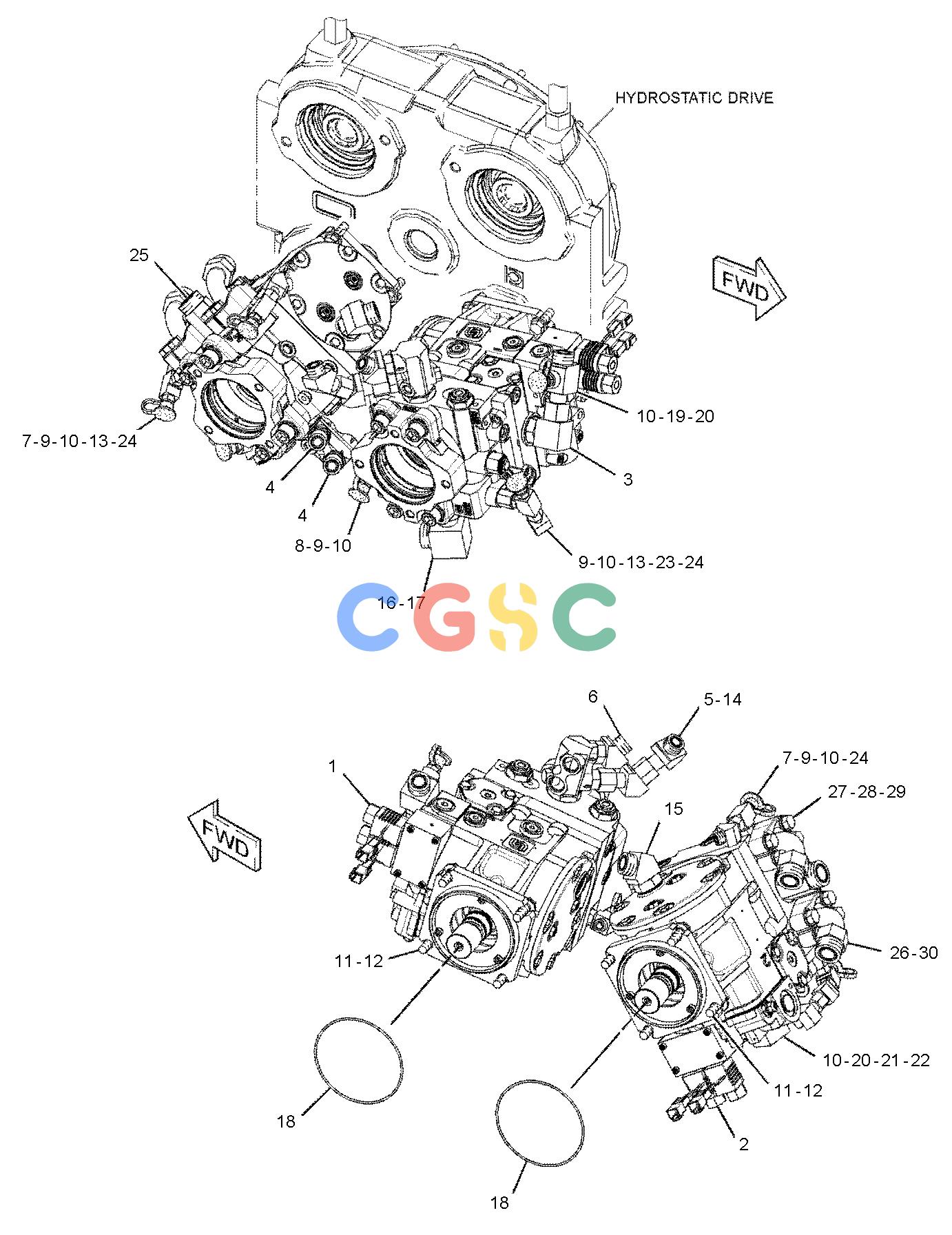

卡特零件查询（AP-600D） 296-3465: PUMP GP-DUAL PROPEL

作者：广数供应链运营团队

浏览数：

时间：2025-01-25 06:14:08

Pos.	Part No	Qty	Parts name
1.	285-4088Y	[1]	PUMP GP-PISTON(PROPEL, LH)
2.	285-4088Y	[1]	PUMP GP-PISTON(PROPEL, RH)
3.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
4.	165-6341	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	144-7767	[1]	CONNECTOR
5.	148-8315	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8642	[1]	CONNECTOR
	7J-9108	[1]	SEAL-O-RING
6.	155-3504	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-9003	[1]	ELBOW
	7J-9108	[1]	SEAL-O-RING
7.	201-5502	[2]	TEE
8.	183-3405	[1]	TEE AS
	6V-5049	[1]	SEAL-O-RING
	7X-2459	[1]	ADAPTER-TEE
	8L-2779	[1]	SEAL-O-RING
9.	187-3547	[4]	COUPLER AS-QUICK DISCONNECT
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
10.	6V-0852	[6]	CAP-DUST
11.	8T-4223	[8]	WASHER-HARD(13.5X25.5X3-MM THK)
12.	8T-4956M	[8]	BOLT(M12X1.75X35-MM)
13.	165-6365	[2]	FITTING AS(TEST PORT)
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	7W-7381	[1]	FITTING-OUTLET
14.	153-6256	[2]	ELBOW AS
			(EACH INCLUDES)
	7J-9108	[1]	SEAL-O-RING
	8C-7563	[1]	ELBOW
15.	153-6237	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9004	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
16.	148-8335	[1]	CONNECTOR AS
	5K-9090	[1]	SEAL-O-RING
	6V-8635	[1]	CONNECTOR
	7M-8485	[1]	SEAL-O-RING
17.	148-8352	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	6V-9854	[1]	ELBOW(SWIVEL)
18.	7J-6285	[2]	SEAL-O-RING
19.	148-8430	[1]	TEE AS
	6V-9746	[1]	SEAL-O-RING
	7X-0873	[1]	TEE
20.	164-5567	[2]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	214-7568	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
21.	148-8382	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	8T-0404	[1]	ELBOW
22.	148-8447	[1]	TEE AS-SWIVEL
	7J-9108	[1]	SEAL-O-RING
	7X-0872	[1]	TEE-SWIVEL
23.	148-8443	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	7X-2459	[1]	ADAPTER-TEE
24.	148-8371	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
25.	148-8330	[1]	CONNECTOR AS
	5K-9090	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	8T-0198	[1]	CONNECTOR
26.	210-2041	[2]	FITTING AS
			(EACH INCLUDES)
	5K-9090	[1]	SEAL-O-RING
	I	[1]	HOSE AS
27.	124-4288	[4]	FLANGE-SPLIT
28.	8T-5360	[8]	WASHER(12X22.5X2.5-MM THK)
29.	8C-6877	[8]	BOLT(7/16-14X1.75-IN)
30.	4J-0520	[2]	SEAL-O-RING
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
