卡特零件查询（AP-600D） 302-5963: LINES GP-PROPEL

作者：广数供应链运营团队

浏览数：

时间：2025-01-25 06:13:41

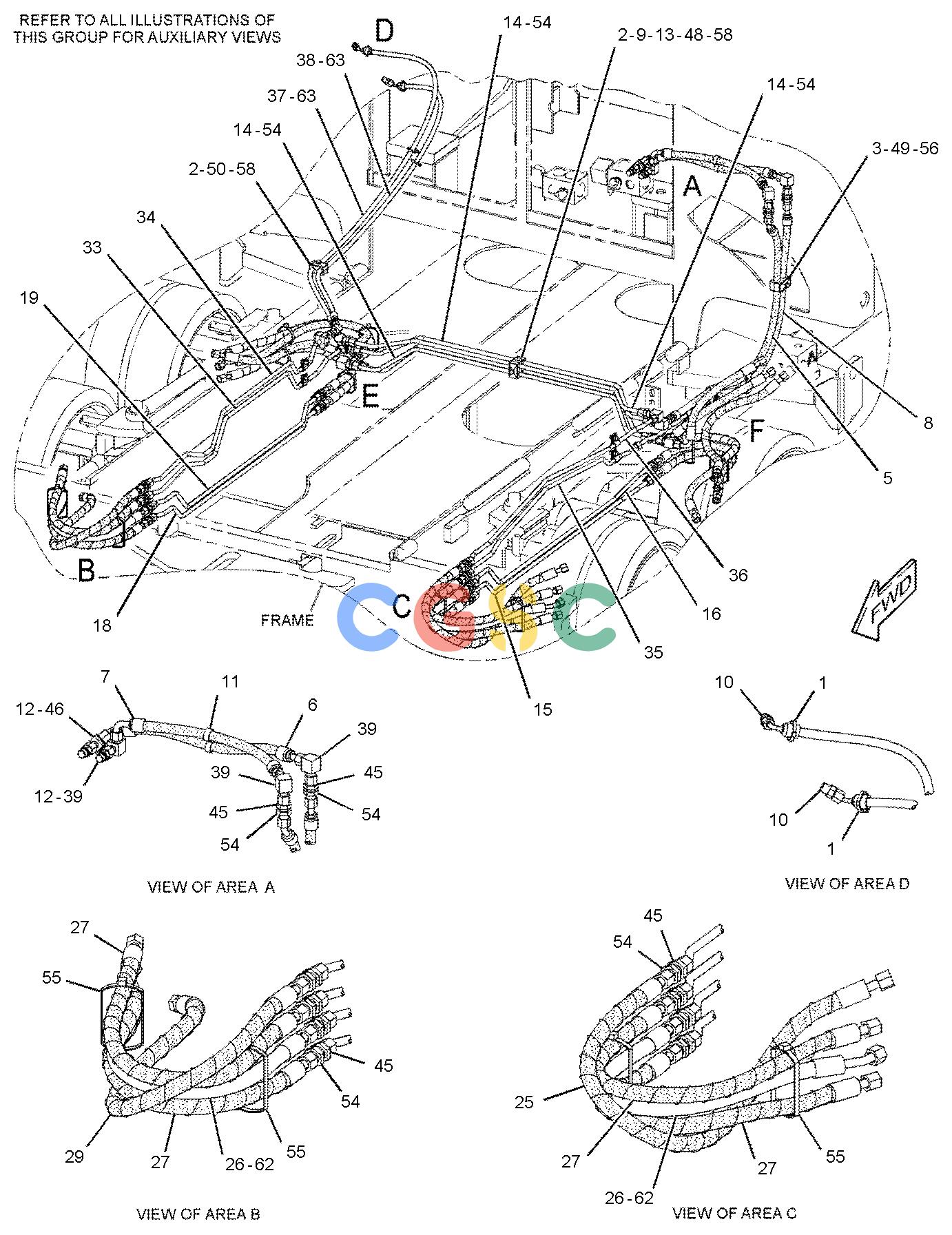

Pos.	Part No	Qty	Parts name
1.	3S-2093	[4]	STRAP-CABLE
2.	102-8703	[2]	PLATE-COVER
3.	102-8705	[2]	PLATE(TOP)
4.	107-4749	[1]	PLATE
5.	110-1977I	[1]	HOSE AS
6.	128-5960I	[1]	HOSE AS
7.	130-8233I	[1]	HOSE AS
8.	138-0178I	[1]	HOSE AS
9.	154-4890M	[1]	BOLT-STACKING(M8X1.25X33-MM)
10.	164-9639	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	148-7925	[1]	CONNECTOR
11.	177-2215	[2]	STRAP-DUAL CLAMP
12.	192-2684	[2]	VALVE AS-CHECK
13.	206-0452	[1]	PLATE
14.	303-9590	[4]	TUBE AS
15.	308-0505	[1]	TUBE AS
16.	308-0506	[1]	TUBE AS
17.	308-0509	[1]	TUBE AS
18.	308-0510	[1]	TUBE AS
19.	308-0511	[1]	TUBE AS
20.	308-0520I	[1]	HOSE AS
21.	316-5694I	[1]	HOSE AS
22.	316-5695I	[1]	HOSE AS
23.	316-5696I	[1]	HOSE AS
24.	316-5697I	[1]	HOSE AS
25.	316-5698I	[1]	HOSE AS
26.	316-5699I	[2]	HOSE AS
27.	316-5700I	[5]	HOSE AS
28.	316-5701I	[1]	HOSE AS
29.	316-5702I	[1]	HOSE AS
30.	316-5703I	[1]	HOSE AS
31.	316-5704I	[1]	HOSE AS
32.	317-3158I	[1]	HOSE AS
33.	322-3275	[1]	TUBE AS
34.	322-3276	[1]	TUBE AS
35.	322-3277	[1]	TUBE AS
36.	322-3278	[1]	TUBE AS
37.	322-3283I	[1]	HOSE AS
38.	322-3284I	[1]	HOSE AS
39.	148-8370	[3]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	ELBOW
40.	148-8371	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
41.	148-8375	[5]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8981	[1]	ELBOW
42.	148-8380	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
43.	148-8415	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8936	[1]	REDUCER
44.	148-8444	[1]	TEE AS-SWIVEL
	6V-8398	[2]	SEAL-O-RING
	6V-9837	[1]	TEE-SWIVEL
45.	148-8457	[15]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8995	[1]	UNION(STRAIGHT)
46.	153-6241	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	8C-8989	[1]	ELBOW
47.	153-6266	[1]	UNION AS
	6V-8397	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8737	[1]	UNION
48.	154-4879	[4]	CLAMP-HALF
49.	154-4883	[4]	CLAMP-HALF
50.	156-5306	[2]	CLAMP-HALF
51.	1G-8781	[2]	CLAMP
52.	5P-9299	[5]	CLIP(LOOP)
53.	6V-8398	[2]	SEAL-O-RING
54.	6V-9169	[22]	NUT(13/16-16-THD)
55.	7K-1181	[10]	STRAP-CABLE
56.	7X-0818M	[2]	BOLT(M8X1.25X45-MM)
57.	7X-2533M	[2]	BOLT(M6X1X35-MM)
58.	7X-2537M	[2]	BOLT(M8X1.25X35-MM)
59.	8T-4121	[5]	WASHER-HARD(11X21X2.5-MM THK)
60.	8T-4191M	[5]	BOLT(M10X1.5X16-MM)
61.	160-2249G		SLEEVE-ABRASION(11.8-IN EACH)
62.	160-2251G		SLEEVE-ABRASION(11.8-IN EACH)
63.	160-2243G		SLEEVE-ABRASION(17.7-IN EACH)
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
