Pos.	Part No	Qty	Parts name
1.	1G-9196	[1]	PIN
2.	7R-3453	[1]	KEY-WOODRUFF
3.	8T-0338M	[2]	BOLT-SOCKET HEAD(M8X1.25X45-MM)
4.	5E-9816J	[2]	SEAL-O-RING
5.	8J-2413J	[2]	SEAL-O-RING
6.	229-8393	[2]	KIT-VALVE(PROPEL PUMP)
			(INCLUDES VALVE & SEAL-O-RINGS)
7.	107-5896	[1]	KIT-MANIFOLD(PROPEL PUMP)
			(INCLUDES ADAPTER-REMOTE FILTER AS & PLUG AS)
8.	9S-8004	[8]	PLUG(9/16-18-THD)
9.	3J-1907	[11]	SEAL-O-RING
10.	5E-8764	[1]	NUT(1-5/16-12-THD)
11.	7M-8485J	[1]	SEAL-O-RING
12.	5E-8750	[1]	TUBE
13.	1G-9175	[1]	KIT-BEARING
			(INCLUDES BEARINGS)
14.	7R-3825N	[1]	KIT-RELIEF VALVE(PROPEL PUMP)
			(INCLUDES SEAL-O-RING)
15.	5E-8777	[2]	PLUG
16.	5E-8747	[2]	VALVE-CHECK
17.	6R-1702N	[1]	NUT-SPECIAL(7/8-14-THD)
18.	6R-1704N	[1]	PLUG AS
19.	2M-9780J	[1]	SEAL-O-RING
20.	5E-8748N	[1]	SPRING
21.	6R-1703N	[1]	POPPET
22.	9S-4191	[3]	PLUG(9/16-18-THD)
23.	126-6638J	[1]	GASKET-END CAP
24.	134-1835PS	[1]	KIT-CYLINDER BLOCK(PROPEL PUMP)
			(INCLUDES CYLINDER)
25.	1G-9203S	[1]	KIT-CYLINDER BLOCK(PROPEL PUMP)
			(INCLUDES CYLINDER)
26.	1G-9178	[1]	SPRING
27.	180-2429V	[1]	ARM-SERVO
28.	126-6637	[1]	BLOCK-SLIDER
29.	134-1824V	[1]	BOLT(M10X1.5X35-MM)
30.	134-1825V	[1]	BOLT(M8X1.25X50-MM)
31.	203-8509V	[1]	LINK-FEEDBACK
32.	5E-8774V	[1]	PIN
33.	5E-8791V	[1]	WASHER(3.53X6.86X1.52-MM THK)
34.	9S-8008	[1]	PLUG(1-1/16-12-THD)
35.	3D-2824	[1]	SEAL-O-RING
36.	229-8394	[1]	PLATE-COVER
37.	229-8395Y	[1]	VALVE GP-PUMP CONTROL(PROPEL)(PROPEL PUMP)
38.	6V-8837M	[6]	BOLT(M6X1X16-MM)
39.	8T-9534M	[6]	BOLT(M6X1X50-MM)
40.	1G-8026	[4]	WASHER(17X30X4-MM THK)
41.	096-0008M	[4]	BOLT-SOCKET HEAD(M16X2X140-MM)
42.	231-7224	[1]	COVER
43.	6H-1717	[4]	BOLT(1/2-13X1.125-IN)
44.	123-0542J	[1]	GASKET
45.	7X-9232	[3]	PLUG-VENT
46.	126-6643	[1]	SHAFT-PUMP
47.	1G-9185	[1]	BEARING-ROLLER
48.	6V-7700	[1]	RING-RETAINING
49.	154-6880J	[1]	SEAL AS
49A.	1G-9187	[1]	SEAL-LIP TYPE
49B.	1G-9188	[1]	SEAL-O-RING
50.	229-8396	[1]	PLATE-RETAINER
51.	8T-0269M	[4]	BOLT-SOCKET HEAD(M6X1X20-MM)
55.	9S-8002	[1]	PLUG(7/16-20-THD)
56.	3J-7354	[1]	SEAL-O-RING
58.	203-8493HJU	[1]	PISTON AS
	4L-7711	[2]	SEAL-O-RING
59.	1G-9192JL	[2]	SEAL-O-RING
60.	1G-9191JL	[2]	SEAL-O-RING
61.	6V-5215LM	[6]	BOLT(M8X1.25X16-MM)
62.	1G-9190L	[2]	KIT-DISPLACEMENT LIMITER(PROPEL PUMP)
			(INCLUDES CYLINDER-SERVO)
63.	077-8353	[2]	PIN(SPRING)
64.	161-3931	[2]	POST-GUIDE
65.	1G-9182J	[1]	SEAL-O-RING
66.	203-8494	[1]	INSERT AS
67.	135-0338	[1]	COVER
68.	132-6697JM	[6]	BOLT(M8X1.25X20-MM)
69.	5E-8765J	[2]	NUT
70.	203-8505	[2]	SHIM(0.51-MM THK)
71.	1G-9183	[2]	SPRING
72.	180-2430V	[1]	GUIDE
73.	199-7051	[1]	PIN
74.	1G-9177	[1]	LINK
75.	1G-9176V	[1]	KIT-PUMP REPAIR(PROPEL PUMP)
			(INCLUDES SWASHPLATE VARIABLE)
76.	134-1836S	[9]	PISTON AS
77.	134-1838S	[1]	GUIDE
78.	173-3266S	[4]	SPACER
79.	134-1839S	[2]	GUIDE-BEARING
80.	5E-8784JSM	[4]	BOLT(M6X1X20-MM)
81.	134-1829PS	[1]	SEAT
82.	134-1828PS	[1]	SPRING
83.	134-1830PS	[1]	RETAINER-SPRING
84.	145-8613PS	[1]	RING-RETAINING
85.	145-6892	[1]	PLATE-VALVE
86.	1G-9193	[1]	BEARING-JOURNAL
87.	134-1827	[1]	SPACER
88.	126-6640	[1]	BRACKET-LIFTING
89.	098-3039	[1]	WASHER(8.33X15X2.12-MM THK)
90.	5E-8743	[2]	BUSHING-TERMINAL
91.	109-5165	[1]	SHAFT-CHARGE
92.	108-8537	[1]	PUMP GP-GEROTOR(CHARGE)
93.	5E-8771J	[1]	SEAL-O-RING
95.	170-4717J	[1]	SEAL-O-RING
96.	109-5166	[1]	COVER-CHARGE
97.	1G-9198	[1]	COUPLING

			PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY

			AVAILABLE REPAIR KIT(S):
	1G-9205J	[1]	KIT-OVERHAUL SEAL
			(INCLUDES GASKET END CAP, GASKET-CONTROLS & PARTS MARKED J IN THE GRAPHICS)
	7X-5448JU	[1]	KIT-PISTON RING
			(INCLUDES O-RINGS, & PISTON RINGS)
	364-0735H	[1]	KIT-SERVO PISTON
	H		KIT MARKED H AVAILABLE AS A SERVICE REPLACEMENT FOR PART MARKED H
	J		KIT MARKED J SERVICES PART(S) MARKED J
	L		KIT MARKED L SERVICES PART(S) MARKED L
	M		METRIC PART
	N		KIT MARKED N SERVICES PART(S) MARKED N
	P		KIT MARKED P SERVICES PART(S) MARKED P
	S		KIT MARKED S SERVICES PART(S) MARKED S
	U		KIT MARKED U SERVICES PART(S) MARKED U
	V		KIT MARKED V SERVICES PART(S) MARKED V
	Y		SEPARATE ILLUSTRATION

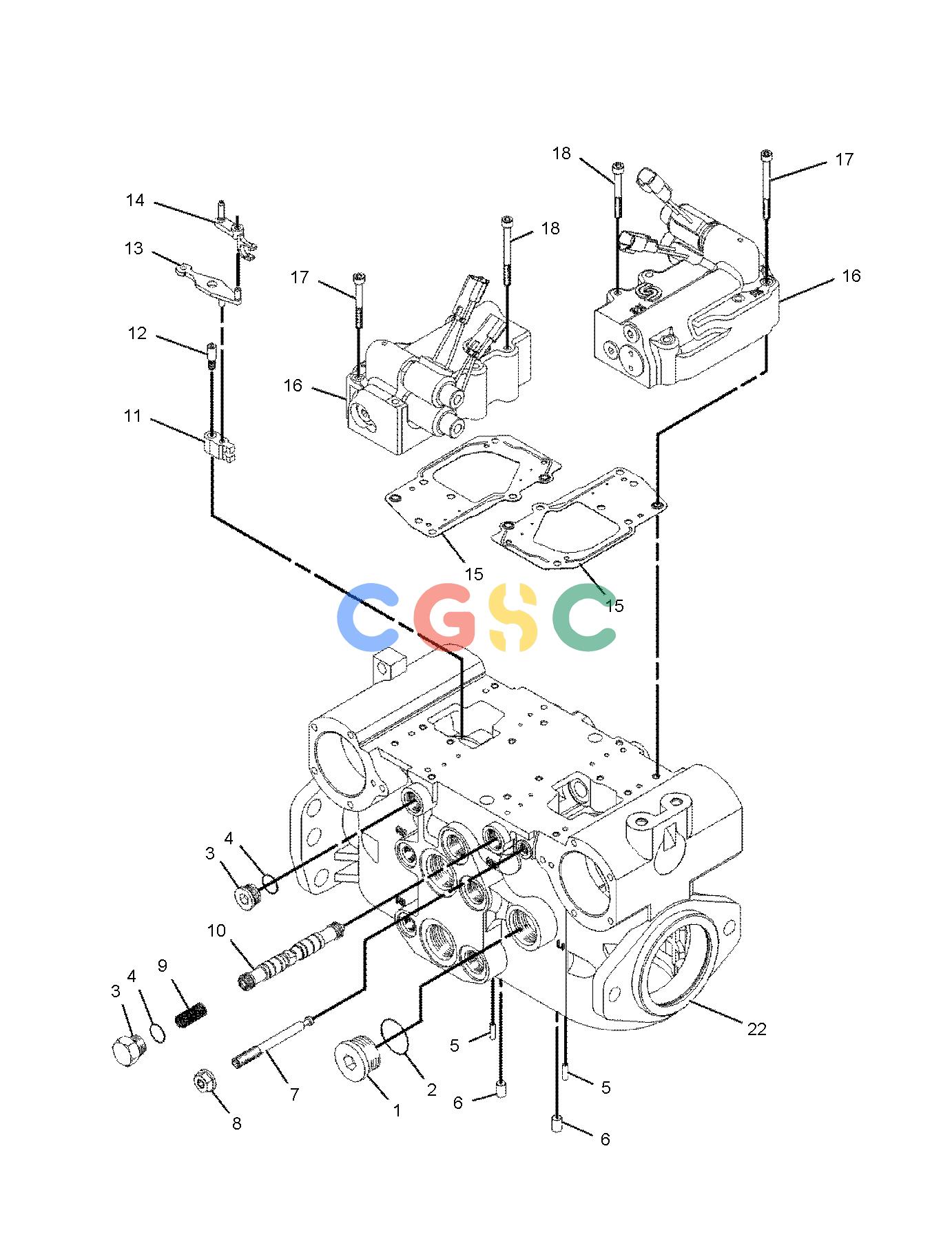

卡特零件查询（BG-2455D） 230-9377: PUMP GP-PISTON
