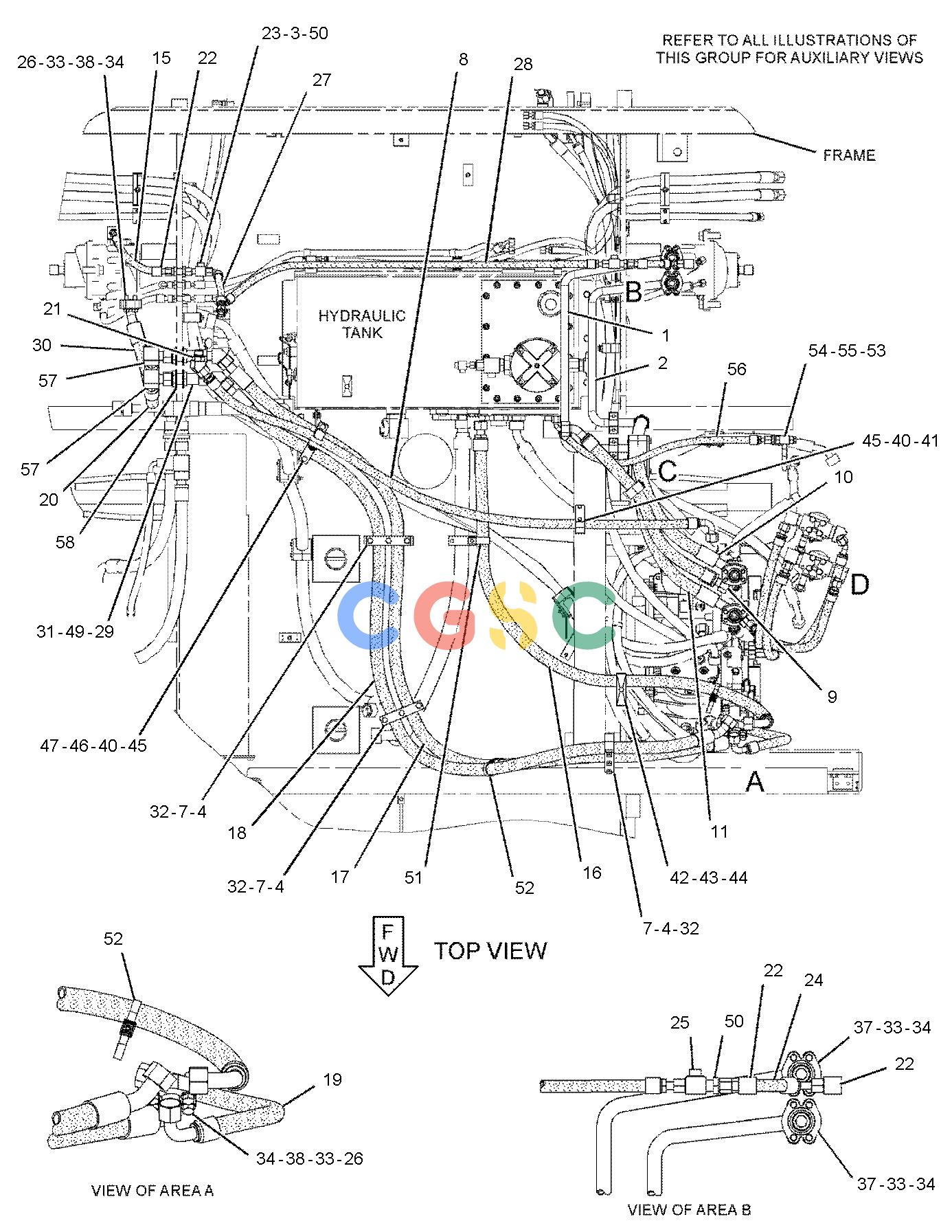

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 231-0640 | [1] | TUBE | |
| 2. | 231-0641 | [1] | TUBE | |
| 3. | [1] | UNION AS | ||
| 6V-8398 | [2] | SEAL-O-RING | ||
| 208-2859 | [1] | UNION | ||
| 4. | 205-9342 | [10] | CLAMP | |
| 5. | 216-7167 | [4] | CLAMP-HALF | |
| 6. | 206-7013 | [4] | FASTENER | |
| 7. | 205-9343 | [5] | COVER | |
| 8. | 167-1083I | [1] | HOSE AS | |
| 9. | 110-2000I | [1] | HOSE AS | |
| 10. | 242-9430I | [1] | HOSE AS | |
| 11. | 214-4483I | [1] | HOSE AS | |
| 12. | 237-0847I | [1] | HOSE AS | |
| 13. | 243-2653I | [1] | HOSE AS | |
| 14. | 237-0846I | [2] | HOSE AS | |
| 15. | 163-2526I | [1] | HOSE AS | |
| 16. | 165-6368I | [1] | HOSE AS | |
| 17. | 237-2081I | [1] | HOSE AS | |
| 18. | 237-0936I | [1] | HOSE AS | |
| 19. | 8X-6265I | [1] | HOSE AS | |
| 20. | 266-8383I | [1] | HOSE AS | |
| 21. | 153-6237 | [1] | ELBOW AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-9004 | [1] | ELBOW | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 22. | 148-8370 | [3] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-9851 | [1] | ELBOW | ||
| 23. | 148-8444 | [1] | TEE AS-SWIVEL | |
| 6V-8398 | [2] | SEAL-O-RING | ||
| 6V-9837 | [1] | TEE-SWIVEL | ||
| 24. | 196-0190I | [1] | HOSE AS | |
| 25. | 148-8427 | [1] | TEE AS | |
| 6V-8398 | [3] | SEAL-O-RING | ||
| 8T-6895 | [1] | TEE-UNION | ||
| 26. | 1P-5766 | [10] | FLANGE-HALF | |
| 27. | 161-6790I | [1] | HOSE AS | |
| 28. | 140-9268I | [1] | HOSE AS | |
| 29. | 214-0095 | [2] | UNION AS | |
| (EACH INCLUDES) | ||||
| 5K-9090 | [2] | SEAL-O-RING | ||
| 7X-2464 | [1] | UNION | ||
| 30. | 266-8384I | [1] | HOSE AS | |
| 31. | 177-1061 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 142-0038 | [1] | ELBOW | ||
| 32. | 8T-5005M | [15] | BOLT(M10X1.5X70-MM) | |
| 33. | 8T-5360 | [28] | WASHER(12X22.5X2.5-MM THK) | |
| 34. | 8C-6877 | [28] | BOLT(7/16-14X1.75-IN) | |
| 35. | 207-0603 | [2] | PLATE-COVER | |
| 36. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 37. | 4J-0520 | [2] | SEAL-O-RING | |
| 38. | 1P-3703 | [5] | SEAL-RECTANGULAR | |
| 39. | 5V-6152 | [2] | CLAMP | |
| 40. | 7R-7951 | [3] | PLATE | |
| 41. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 42. | 206-6415 | [2] | CLAMP-HALF | |
| 43. | 207-4499 | [1] | PLATE-COVER | |
| 44. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 45. | 7R-7939 | [4] | CLAMP-PIPE | |
| 46. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 47. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 48. | 5K-9090 | [2] | SEAL-O-RING | |
| 49. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 50. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 51. | 7D-7233 | [1] | CLIP(LOOP) | |
| 52. | 178-3620 | [2] | STRAP-DUAL CLAMP | |
| 53. | 148-8407 | [1] | PLUG AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-4191 | [1] | PLUG(9/16-18-THD) | ||
| 54. | 124-6809 | [1] | VALVE-BALL(HYDRAULIC TANK DRAIN) | |
| 55. | 150-4043 | [1] | CONNECTOR AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-9873 | [1] | CONNECTOR | ||
| 56. | 127-5750I | [1] | HOSE AS | |
| 57. | 148-8352 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 6V-9854 | [1] | ELBOW(SWIVEL) | ||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 58. | 7X-0606 | [4] | WASHER-HARD(37X60X3-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
