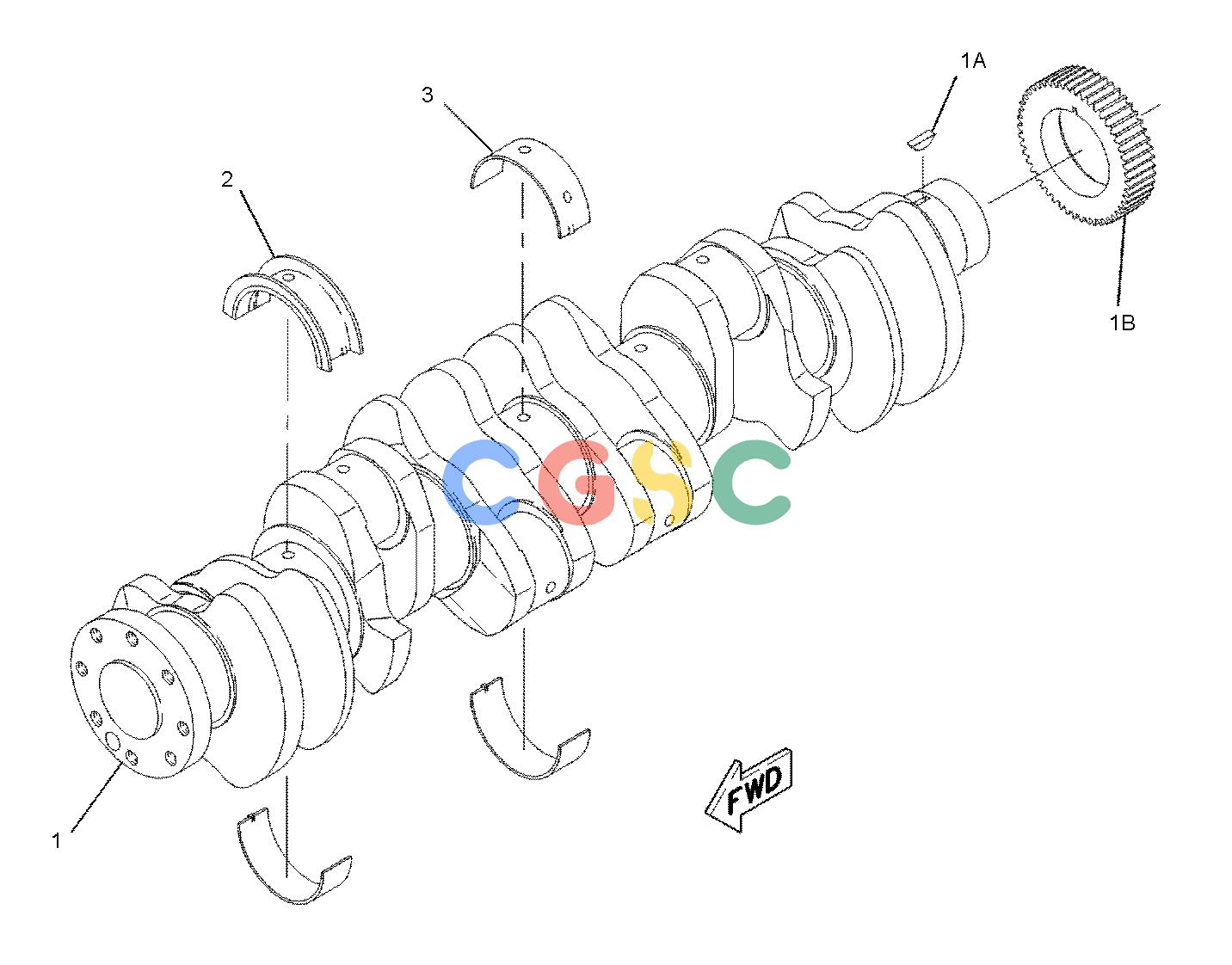

| 1. | 271-5658 | [1] | CRANKSHAFT AS | |
| 1A. | 1B-8705 | [1] | KEY-WOODRUFF | |
| 1B. | 2W-8147 | [1] | GEAR(50-TEETH) | |
| 2. | 212-4893J | [1] | BEARING-THRUST(STANDARD) | |
| | 229-5153AB | | BEARING-THRUST(0.25-MM US) | |
| | 229-5154AB | | BEARING-THRUST(0.5-MM US) | |
| | 229-5155AB | | BEARING-THRUST(0.5-MM OS) | |
| | 229-5156AB | | BEARING-THRUST(0.5-MM OS, 0.5-MM US) | |
| 3. | 107-7708J | [6] | BEARING-MAIN(STANDARD) | |
| | 145-0168AB | | BEARING-MAIN(0.5-MM OS) | |
| | 145-0170AB | | BEARING-MAIN(0.5-MM OS, 0.5-MM US) | |
| | 145-0162AB | | BEARING-MAIN(0.25-MM US) | |
| | 145-0164AB | | BEARING-MAIN(0.5-MM US) | |
| | | | |
| | 7C-7980ABF | [1] | SLEEVE-OIL SEAL | |
| | | | (THIS WEAR SLEEVE IS USED ONLY TO SALVAGE (REPAIR) THE REAR SEAL SURFACE OF THE CRANKSHAFT) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 196-9519AJ | | BEARING GP-MAIN(CRANKSHAFT) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
