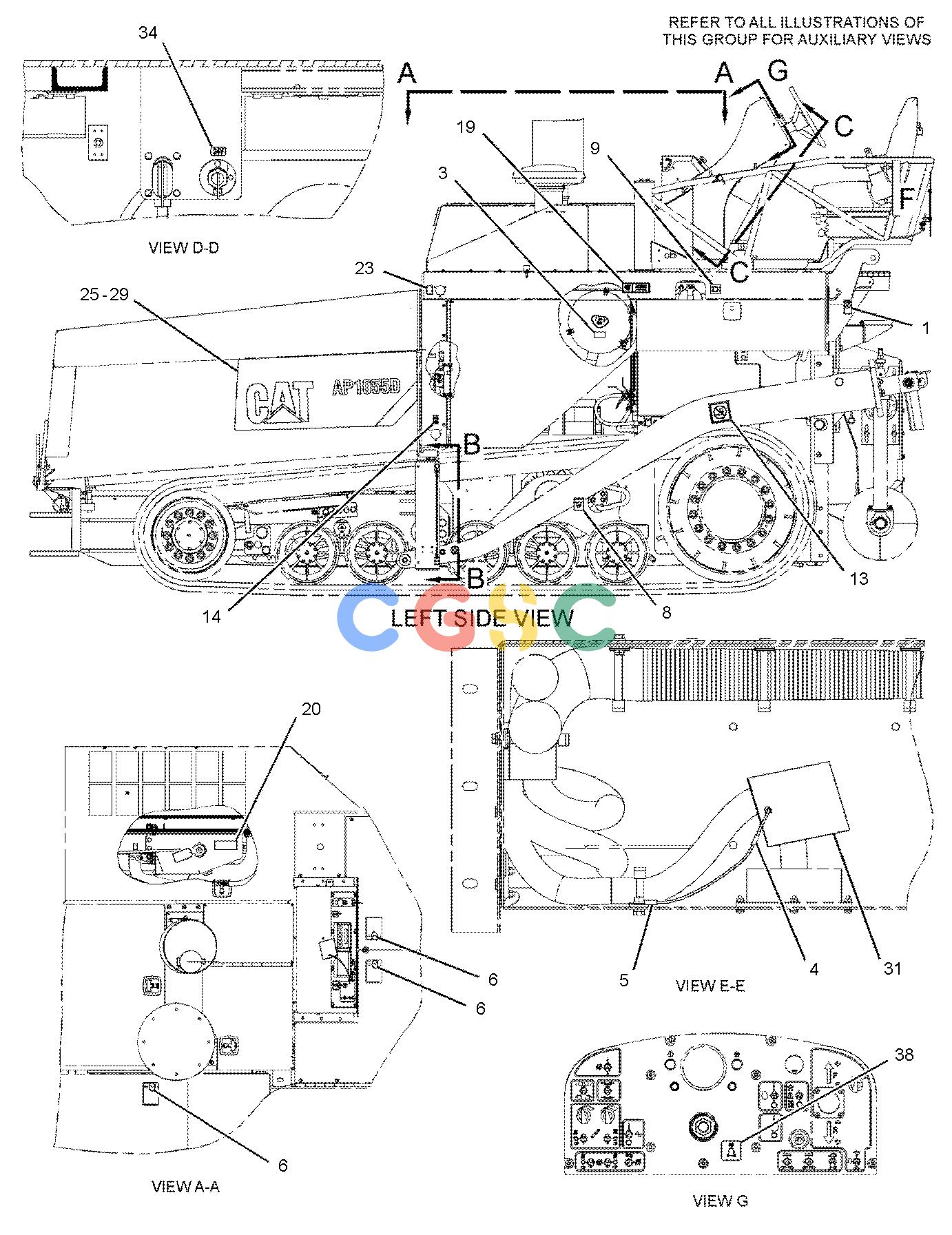

| 1. | 1P-2807 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 2. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 3. | 4P-6422 | [1] | FILM-WARNING(NO ETHER SPRAY/AIR INTAKE) | |
| 4. | 5P-7958 | [2] | SLEEVE-CABLE SPLICE | |
| 5. | 5P-7957 | [1] | LANYARD | |
| 6. | 246-2641 | [4] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 7. | 7X-3229 | [2] | FILM-IDENTIFICATION(LIFT EYE, TIE-DOWN LOCATION) | |
| 8. | 7X-7644 | [4] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 9. | 8C-4535 | [1] | FILM-IDENTIFICATION(DIESEL FUEL) | |
| 10. | 8T-6986 | [1] | PLATE AS-WARNING(SLOW MOVING VEHICLE) | |
| 11. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 123-4082 | [1] | FILM-INFORMATION(HEIGHT SCALE) | |
| 13. | 124-2456 | [2] | FILM-INSTRUCTION(NO STEP) | |
| 14. | 129-6813 | [2] | FILM(TOW POINT CYLINDER) | |
| 15. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 16. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 17. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 18. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 19. | 253-0861 | [2] | FILM-INFORMATION(CAT POWER, ACERT TECHNOLOGY) | |
| 20. | 190-2938 | [1] | FILM-WARNING(ENG COOLANT PRESSURE, READ OMM) | |
| 21. | 211-4870 | [1] | FILM-IDENTIFICATION(PROPEL OVERRIDE) | |
| 22. | 249-4365 | [1] | PLATE | |
| 23. | 214-7915 | [1] | FILM-INSTRUCTION(ENGINE SHUTOFF) | |
| 24. | | [1] | FILM-NOTICE(SHIPPING) |
| 25. | 242-3423 | [1] | FILM-IDENTIFICATION(AP-1055D)(RH) | |
| 26. | 239-6986 | [1] | PLATE-SERIAL NUMBER(MACHINE) | |
| 27. | 242-3419 | [1] | FILM-IDENTIFICATION(CATERPILLAR) | |
| 28. | 242-3420 | [1] | FILM-STRIPE(CAT, LH) | |
| 29. | 242-3421 | [1] | FILM-IDENTIFICATION(AP-1055D)(LH) | |
| 30. | 242-3422 | [1] | FILM-STRIPE(CAT, RH) | |
| 31. | 245-1153 | [1] | FILM-INFORMATION(CALIBRATION) | |
| 32. | 279-6497 | [1] | FILM-INSTRUCTION(GREASE, READ OMM) | |
| 33. | | [2] | FILM-SCALE |
| 34. | 146-6747 | [1] | FILM-INFORMATION(24-VOLT) | |
| | | | |
| | AF | [1] | PLATE-SERIAL NUMBER(ENGINE) |
| | | | (LOCATED ON LOWER RH SIDE OF CYLINDER BLOCK) |
| | 9N-7042F | [1] | CHAIN AS(HOPPER) | |
| | 219-3009F | [1] | HOSE AS(TRACK TENSION CYLINDER PURGE) | |
| | 148-1886 | [1] | COUPLING(FEMALE) | |
| | 148-8337 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6866 | [1] | CONNECTOR | |
| | 219-3008I | [1] | HOSE AS | |
| | 3S-2093F | [6] | STRAP-CABLE | |
| | A | | NOT PART OF THIS GROUP |
| | F | | NOT SHOWN |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
