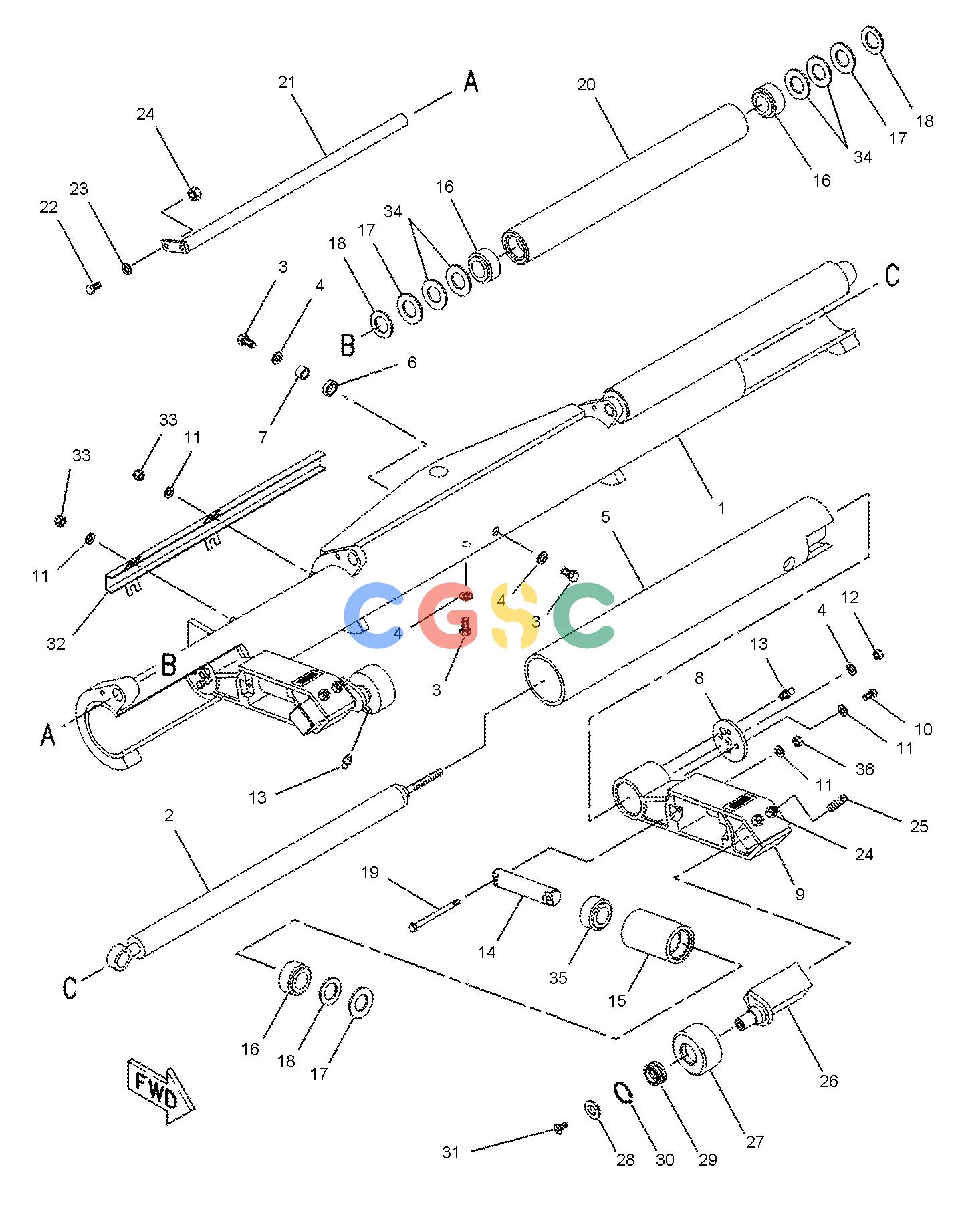

| 1. | 8I-0640 | [1] | HOUSING AS-HITCH | |
| 2. | 8I-0628J | [1] | CYLINDER AS-HYDRAULIC | |
| 3. | 8T-9398 | [4] | BOLT(3/4-10X1.75-IN) | |
| 4. | 8T-4994 | [6] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 5. | 8I-0565 | [2] | TUBE AS-EXTENSION | |
| 6. | 118-1288 | [2] | GUIDE(31.9X43.5X9.65-MM THK) | |
| 7. | 118-1289 | [2] | SPACER(19.23X31.67X18.5-MM THK) | |
| 8. | 8I-0373 | [2] | PLATE-ARM | |
| 9. | 133-2872C | [2] | ARM AS-RIM | |
| | | | (EACH INCLUDES) |
| | 3J-5169 | [2] | NUT-WELD(5/8-11-THD) | |
| 10. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| 11. | 8T-4223C | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 6V-8182 | [2] | NUT(3/4-10-THD) | |
| 13. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 14. | 132-8869C | [2] | PIN | |
| 15. | 132-8871C | [2] | ROLLER-SIDE | |
| 16. | 6I-9487C | [4] | BALL BEARING | |
| 17. | 8I-0625C | [4] | WASHER(38.9X81X4.8-MM THK) | |
| 18. | 8I-0626C | [4] | WASHER(1.53X2.38X.25-IN THK) | |
| 19. | 7X-0336C | [4] | BOLT(1/2-13X5.5-IN) | |
| 20. | 8I-0627 | [2] | ROLLER | |
| 21. | 8I-0566 | [2] | SHAFT AS-ROLLER | |
| 22. | 7X-0349 | [2] | BOLT(5/8-11X3-IN) | |
| 23. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 24. | 7X-0448 | [6] | NUT(5/8-11-THD) | |
| 25. | 4B-3596 | [4] | SETSCREW-SQUARE HEAD(5/8-11X2-IN) | |
| 26. | 8I-0563 | [2] | SUPPORT AS-ROLLER | |
| 27. | 8I-0371 | [2] | ROLLER-RIM | |
| 28. | 8I-0372 | [2] | WASHER-RETAINING | |
| 29. | 4D-0298 | [2] | BEARING | |
| 30. | 052-0512 | [2] | RING-RETAINING | |
| 31. | 4K-1493 | [2] | SCREW-HOLLOW(1/2-13X1-IN) | |
| 32. | 8I-0570 | [2] | COVER AS-ROLLER | |
| 33. | 1K-6872 | [8] | LOCKNUT(1/2-13-THD) | |
| 34. | 092-2555 | [8] | WASHER(39X72X1.5-MM THK) | |
| 35. | 132-8870C | [4] | BEARING | |
| 36. | 6V-8188C | [4] | NUT(1/2-13-THD) | |
| | | | |
| | 3J-1907CF | [2] | SEAL-O-RING | |
| | 9S-4185CF | [2] | PLUG(3/4-16-THD) | |
| | 3K-0360CF | [2] | SEAL-O-RING | |
| | 9S-4181CF | [2] | PLUG(1-5/16-12-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 8I-0653J | [1] | KIT-SEAL(TRUCK HITCH) | |
| | | | (INCLUDES WIPER, U-CUP, SEALS, BACKUP RINGS & O-RING SEALS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
