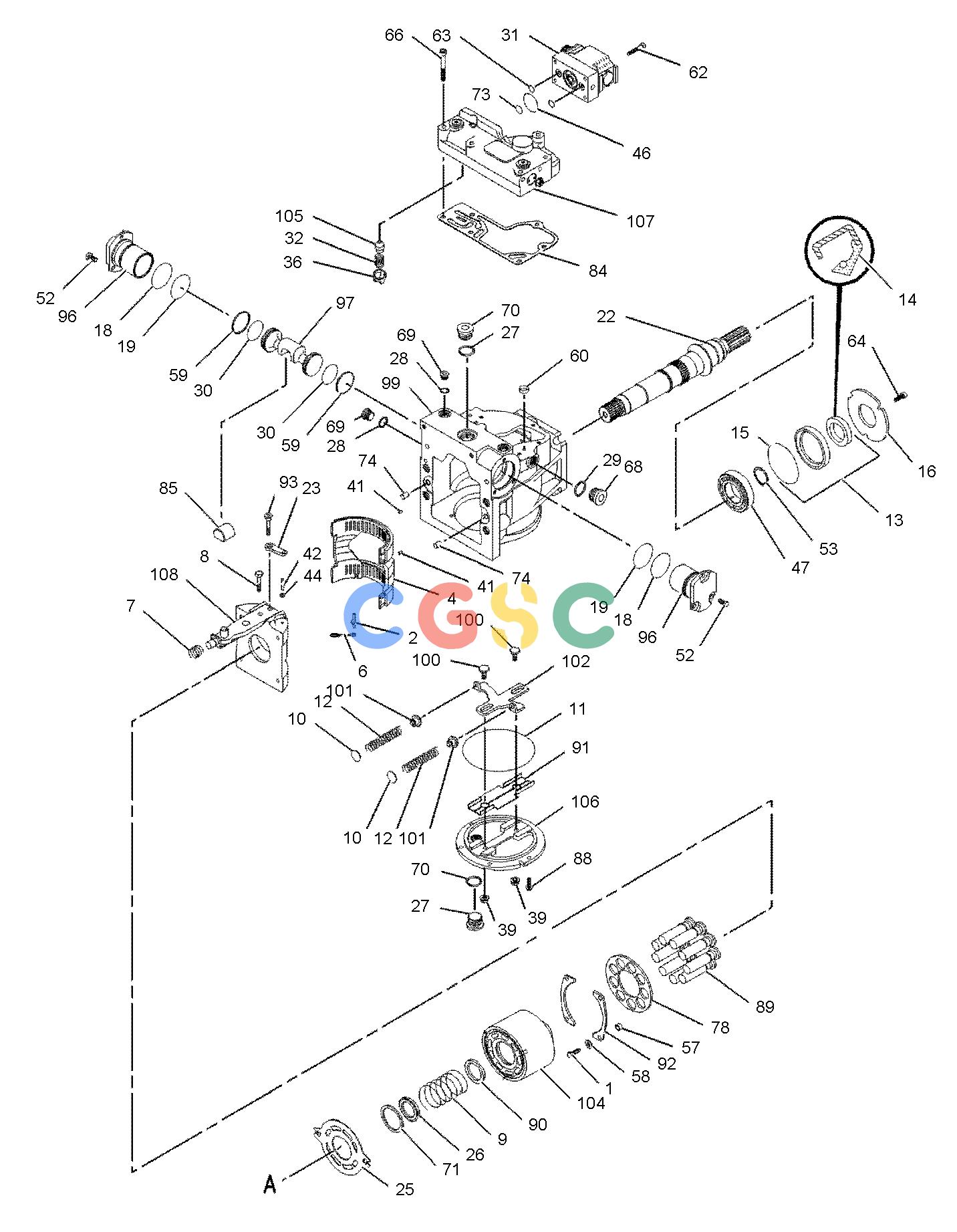

| 1. | 1G-5753L | [4] | BOLT(M6X1-6X1IN THK) | |
| 2. | 199-7051 | [1] | PIN | |
| 3. | 1G-8026 | [4] | WASHER(17X30X4-MM THK) | |
| 4. | 1G-9175 | [1] | KIT-BEARING | |
| 5. | 7R-3825 | [1] | KIT-RELIEF VALVE | |
| 6. | 1G-9177 | [1] | LINK | |
| 7. | 1G-9178 | [1] | SPRING | |
| 8. | 134-1824J | [1] | BOLT(M10X1.5X35-MM)(M10X1.5-35MM THK) | |
| 9. | 134-1828LN | [1] | SPRING | |
| 10. | 1G-9181W | [2] | SHIM(0.51-MM THK)(.51 MM THK) | |
| 11. | 1G-9182U | [1] | SEAL-O-RING | |
| 12. | 1G-9183W | [2] | SPRING | |
| 13. | 154-6880 | [1] | SEAL AS | |
| | | | (INCLUDES SEALS) |
| 14. | 1G-9187U | [1] | SEAL-LIP TYPE | |
| 15. | 1G-9188U | [1] | SEAL-O-RING | |
| 16. | 1G-9189 | [1] | PLATE-RETAINER | |
| 17. | 134-1834 | [2] | VALVE AS | |
| 18. | 1G-9191TU | [2] | SEAL-O-RING | |
| 19. | 1G-9192TU | [2] | SEAL-O-RING | |
| 20. | 1G-9193 | [1] | BEARING-JOURNAL | |
| 21. | 1G-9196 | [1] | PIN | |
| 22. | 1G-9199 | [1] | SHAFT | |
| 23. | 145-6893J | [1] | LINK-FEEDBACK | |
| | | | -OR- |
| | 203-8509J | [1] | LINK-FEEDBACK | |
| 24. | 134-1833 | [1] | COUPLING | |
| 25. | 145-6892 | [1] | PLATE-VALVE | |
| 26. | 134-1830LN | [1] | RETAINER-SPRING | |
| 27. | 3D-2824 | [2] | SEAL-O-RING | |
| 28. | 3J-1907H | [12] | SEAL-O-RING | |
| 29. | 3J-7354 | [2] | SEAL-O-RING | |
| 30. | 4L-7711P | [2] | SEAL-O-RING | |
| 31. | 1G-9335QV | [1] | KIT-SOLENOID(PUMP CONTROL) | |
| | | | (INCLUDES SEALS) |
| 32. | 5E-8742S | [1] | SPRING | |
| 33. | 5E-8743 | [2] | BUSHING-TERMINAL | |
| 34. | 5E-8748 | [1] | SPRING | |
| 35. | 5E-8750H | [1] | TUBE | |
| 36. | 5E-8755S | [1] | RETAINER-SPRING | |
| 37. | 5E-8760 | [1] | PLATE-RETAINING | |
| 38. | 5E-8764H | [1] | NUT(1-5/16-12-THD) | |
| 39. | 5E-8765U | [2] | NUT | |
| 40. | 5E-8771U | [1] | SEAL-O-RING | |
| 41. | 5E-8773 | [2] | PIN | |
| 42. | 5E-8774J | [1] | PIN | |
| 43. | 5E-8777 | [3] | PLUG | |
| 44. | 5E-8791J | [1] | WASHER(3.53X6.86X1.52-MM THK)(3.55X6.86X1.52MM THK) | |
| 45. | 5E-9816U | [2] | SEAL-O-RING | |
| 46. | 5P-5600QUV | [1] | SEAL-O-RING | |
| 47. | 5P-9064 | [1] | BEARING AS-ROLLER | |
| 48. | 6H-1717B | [4] | BOLT(1/2-13X1.125-IN) | |
| 49. | 6R-1702 | [1] | NUT-SPECIAL(7/8-14-THD)(7/8X14MM THK) | |
| 50. | 6R-1703 | [1] | POPPET | |
| 51. | 6R-1704 | [1] | PLUG AS | |
| 52. | 6V-5215TM | [6] | BOLT(M8X1.25X16-MM) | |
| 53. | 6V-7700 | [1] | RING-RETAINING | |
| 54. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 55. | 7M-8485HU | [1] | SEAL-O-RING | |
| 56. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 57. | 173-3266L | [4] | SPACER | |
| 58. | 5E-8784LM | [4] | BOLT(M6X1X20-MM) | |
| 59. | 7X-5448PU | [2] | KIT-PISTON RING | |
| 60. | 7X-9232 | [3] | PLUG-VENT | |
| 61. | 8C-5237U | [1] | SEAL-O-RING | |
| 62. | 8C-8580QVM | [4] | BOLT-SOCKET HEAD(M5X0.8X16-MM) | |
| 63. | 8L-2779QUV | [2] | SEAL-O-RING | |
| 64. | 8T-0269M | [4] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 65. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 66. | 8T-9534QM | [6] | BOLT(M6X1X50-MM) | |
| 67. | 9S-4191H | [3] | PLUG(9/16-18-THD) | |
| 68. | 9S-8002 | [2] | PLUG(7/16-20-THD) | |
| 69. | 9S-8004 | [8] | PLUG(9/16-18-THD) | |
| 70. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 71. | 006-8663LN | [1] | RING | |
| 72. | 030-4605U | [2] | SEAL-O-RING | |
| 73. | 033-6033QUV | [1] | SEAL-O-RING | |
| 74. | 077-8353 | [2] | PIN(SPRING) | |
| 75. | 086-9899U | [1] | SEAL-O-RING | |
| 76. | 096-0008M | [4] | BOLT-SOCKET HEAD(M16X2X140-MM) | |
| 77. | 098-3039 | [1] | WASHER(8.33X15X2.12-MM THK) | |
| 78. | 134-1838L | [1] | GUIDE | |
| 79. | 108-5173B | [1] | COVER | |
| 80. | 108-8537 | [1] | PUMP GP-GEROTOR(CHARGE) | |
| 81. | 109-5165 | [1] | SHAFT-CHARGE | |
| 82. | 109-5166 | [1] | COVER-CHARGE | |
| 83. | 123-4576H | [1] | MANIFOLD | |
| 84. | 123-5208QU | [1] | GASKET-CONTROL | |
| 85. | 126-6637 | [1] | BLOCK-SLIDER | |
| 86. | 126-6638 | [1] | GASKET-END CAP | |
| 87. | 126-6640 | [1] | BRACKET-LIFTING | |
| 88. | 132-6697UM | [6] | BOLT(M8X1.25X20-MM) | |
| 89. | 134-1836L | [9] | PISTON AS | |
| 90. | 134-1829LN | [1] | SEAT | |
| 91. | 134-1832 | [1] | COVER-INSERT | |
| 92. | 134-1839L | [2] | GUIDE-BEARING | |
| 93. | 134-1825J | [1] | BOLT(M8X1.25X50-MM)(M8X1.25X50MM THK) | |
| 94. | 134-1827 | [1] | SPACER | |
| 95. | 187-9360 | [1] | ADAPTER | |
| 96. | TZ | [1] | SLEEVE-SERVO |
| 97. | PZ | [1] | PISTON-SERVO |
| 98. | Z | [1] | COVER(FRONT) |
| 99. | Z | [1] | HOUSING |
| 100. | WZ | [2] | POST-GUIDE |
| 101. | WZ | [2] | SEAT-SPRING |
| 102. | WZ | [1] | LEVELER |
| 103. | Z | [2] | VALVE |
| 104. | LNZ | [1] | CYLINDER BLOCK |
| 105. | SZ | [1] | VALVE-CHECK |
| 106. | Z | [1] | COVER(SIDE) |
| 107. | QSVZ | [1] | COVER |
| 108. | JZ | [1] | KIT-PUMP REPAIR |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 1G-9190T | [2] | KIT-DISPLACEMENT LIMITER | |
| | 1G-9202P | [1] | KIT-SERVO PISTON(PROPEL PISTON PUMP) | |
| | 1G-9203L | [1] | KIT-CYLINDER BLOCK | |
| | 5E-8737S | [1] | KIT-ORIFICE CONTROL | |
| | 153-1042V | [1] | KIT-PUMP CONTROL | |
| | 1G-9205U | [1] | KIT-OVERHAUL SEAL | |
| | 134-1835N | [1] | KIT-CYLINDER BLOCK | |
| | 107-5896H | [1] | KIT-MANIFOLD | |
| | 1G-9176J | [1] | KIT-PUMP REPAIR | |
| | 171-6593W | [1] | KIT-SIDE COVER | |
| | 153-1043Q | [1] | VALVE-PUMP CONTROL | |
| | B | | USE AS REQUIRED |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Q | | KIT MARKED Q SERVICES PART(S) MARKED Q |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | V | | KIT MARKED V SERVICES PART(S) MARKED V |
| | W | | CONTROL-DISPLACEMENT MARKED W INCLUDES PARTS MARKED W |
| | Z | | NOT SERVICED SEPARATELY |
