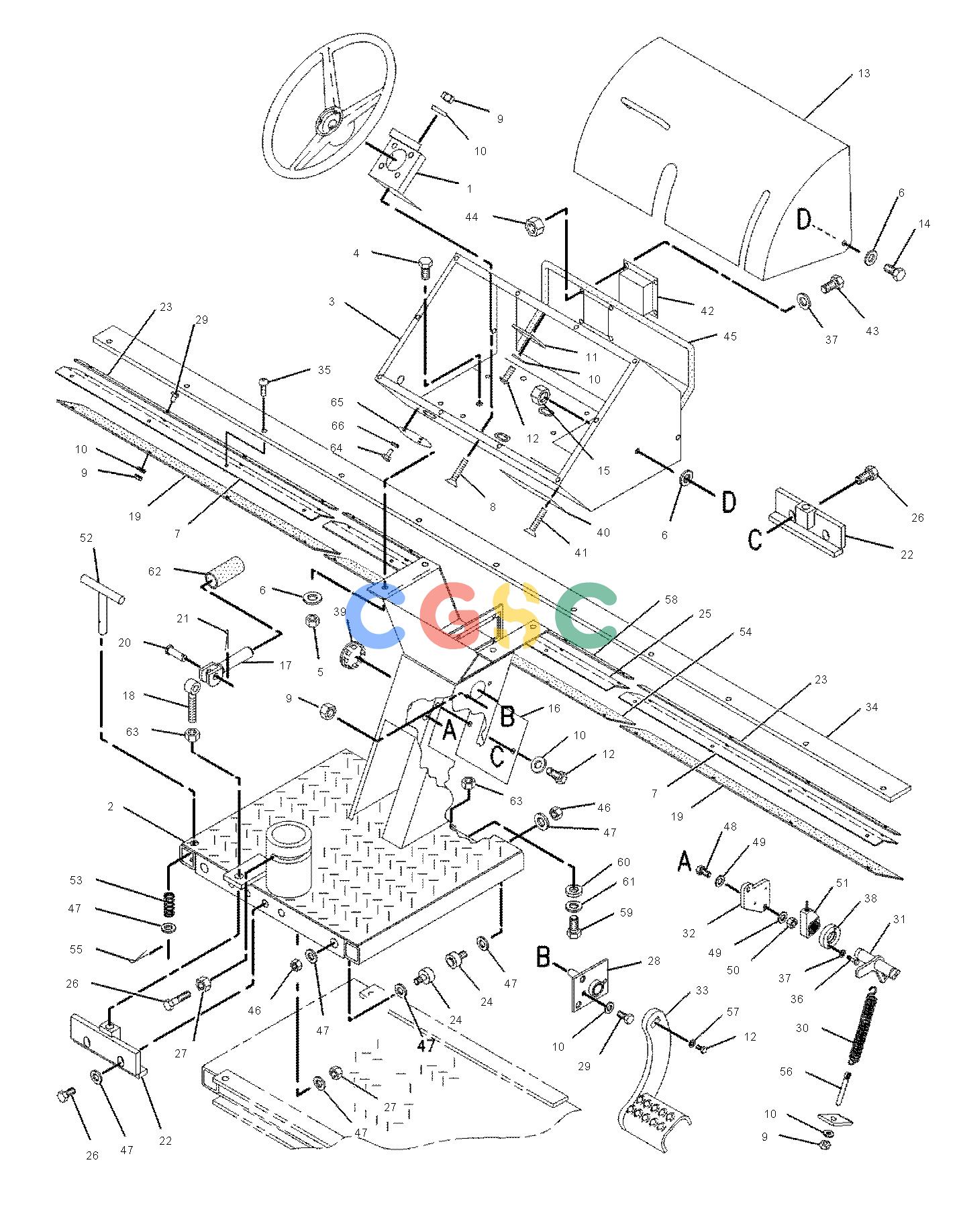

| 1. | 108-4135Y | [1] | STEERING COLUMN GP | |
| 2. | 134-8545 | [1] | SUPPORT AS-CONSOLE | |
| 3. | 108-4708 | [1] | CONSOLE AS | |
| 4. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 5. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 6. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 126-1504 | [2] | PLATE AS | |
| 8. | 030-7571 | [4] | BOLT(3/8-16X1-IN) | |
| 9. | 6V-8801 | [20] | NUT(3/8-16-THD) | |
| 10. | 8T-4896 | [22] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 104-1824 | [1] | BAR | |
| 12. | 5M-3062 | [3] | BOLT(3/8-16X0.75-IN) | |
| 13. | 104-3962 | [1] | COVER AS | |
| 14. | 081-8353 | [2] | BOLT(3/8-16X0.625-IN) | |
| 15. | 3K-6060 | [2] | LOCKNUT(3/8-16-THD) | |
| 16. | 108-4678 | [1] | PLATE | |
| 17. | 134-8035 | [1] | CAM & LEVER AS | |
| 18. | 108-6247 | [1] | EYEBOLT | |
| 19. | 118-5034 | [2] | FLASHING | |
| 20. | 7M-2855 | [1] | PIN | |
| 21. | 3B-4619 | [1] | PIN-COTTER | |
| 22. | 108-4694 | [2] | CLAMP AS | |
| 23. | 118-5215 | [2] | BAR | |
| 24. | 102-2889 | [4] | BEARING-CAMSHAFT | |
| 25. | 126-1505 | [1] | PLATE AS | |
| 26. | 7X-0346 | [5] | BOLT(5/8-11X2-IN) | |
| 27. | 7X-0448 | [8] | NUT(5/8-11-THD) | |
| 28. | 109-2776 | [1] | SUPPORT AS | |
| 29. | 4L-6454 | [15] | BOLT(3/8-16X1-IN) | |
| 30. | 109-2777 | [1] | SPRING-EXTENSION | |
| 31. | 109-2230 | [1] | SHAFT AS | |
| 32. | 109-2232 | [1] | PLATE | |
| 33. | 109-2237 | [1] | PEDAL AS | |
| 34. | 109-2778 | [1] | BAR | |
| 35. | 133-8106 | [11] | SCREW-BUTTON HEAD(1/2-13X1.5-IN) | |
| 36. | 2N-0402 | [2] | BOLT-SOCKET HEAD(10-24X1.75-IN) | |
| 37. | 4B-4274 | [6] | WASHER(5.5X13X1.2-MM THK) | |
| 38. | 109-1343 | [1] | SPACER | |
| 39. | 4S-6336 | [1] | PLUG-BUTTON | |
| 40. | 114-9949 | [1] | PLATE | |
| 41. | 4B-1282 | [2] | SCREW-MACHINE(1/4-20X0.75-IN) | |
| 42. | 113-0924 | [1] | LATCH | |
| 43. | 3L-2540 | [4] | BOLT-SOCKET HEAD(10-24X0.75-IN) | |
| 44. | 031-0249 | [4] | LOCKNUT(10-24-THD) | |
| 45. | 8T-9007BE | | SEAL | |
| 46. | 6B-6683 | [4] | NUT(5/8-18-THD) | |
| 47. | 8T-4122 | [17] | WASHER-HARD(17X32X3.5-MM THK) | |
| 48. | 7X-2501 | [2] | BOLT(1/4-20X1.25-IN) | |
| 49. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 50. | 6V-8185 | [2] | NUT(1/4-20-THD) | |
| 51. | 9X-5592Y | [1] | SENSOR GP-POSITION | |
| 52. | 115-6300 | [1] | PIN AS | |
| 53. | 3L-5919 | [1] | SPRING-GOVERNOR SHAFT | |
| 54. | 118-9584 | [1] | FLASHING | |
| 55. | 3B-4616 | [1] | PIN-COTTER | |
| 56. | 5L-5976 | [1] | END | |
| 57. | 5P-1075 | [1] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 58. | 118-9585 | [1] | BAR | |
| 59. | 2K-3673 | [3] | BOLT-TRUNNION(5/8-11X1.84-IN) | |
| 60. | 134-5930 | [3] | SPACER(19X41X12.7-MM THK) | |
| 61. | 8T-4994 | [3] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 62. | 7X-9918 | [1] | GRIP-HANDLE | |
| 63. | 1D-5118 | [1] | NUT-JAM(5/8-11-THD) | |
| 64. | 8M-3267 | [2] | SCREW-HEX SOCKET(3/8-16X0.75-IN) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
