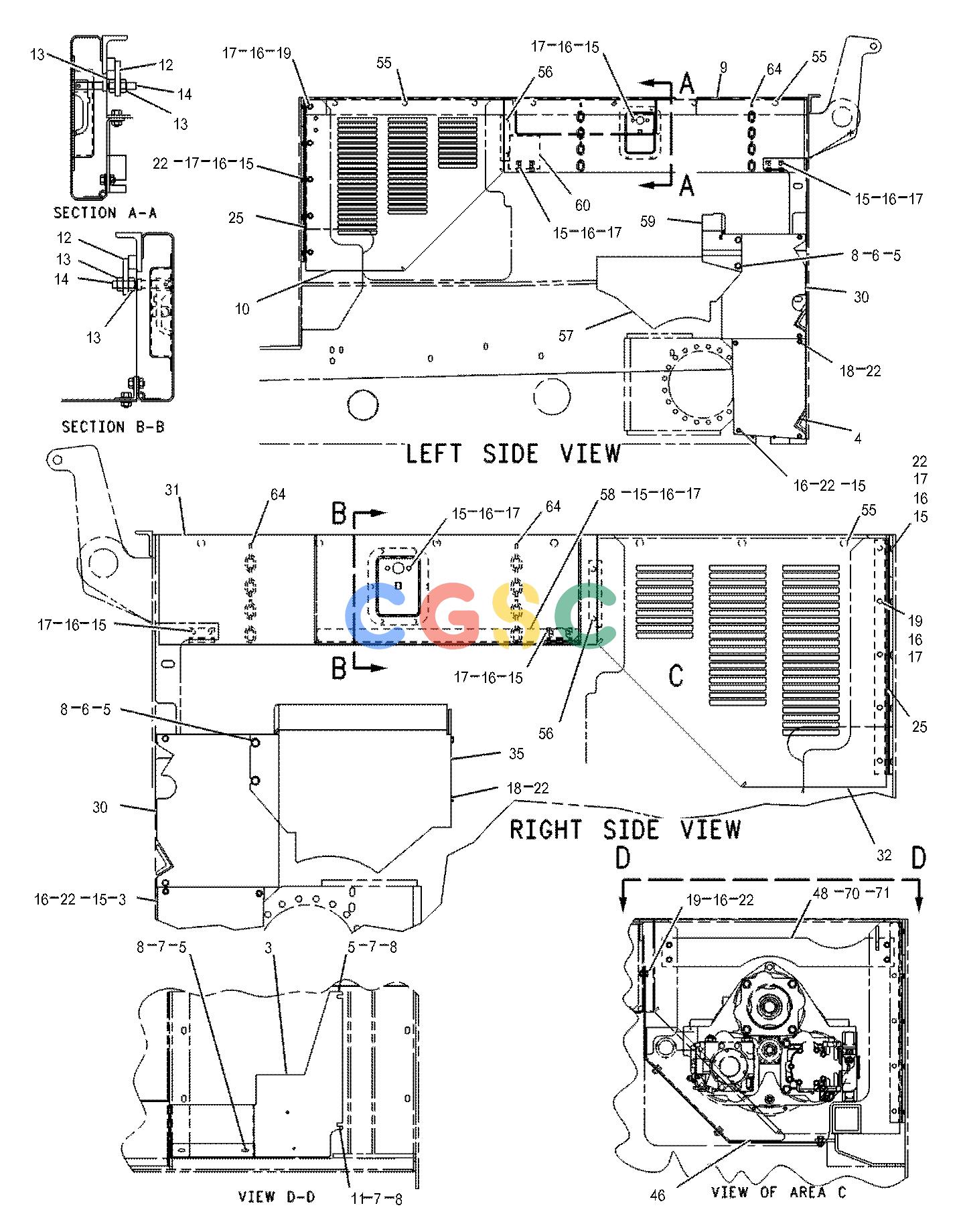

卡特零件查询（BG-2455C） 143-0456: COVER GP-ENGINE & PLATFORM

作者：广数供应链运营团队

浏览数：

时间：2025-01-25 02:02:01

Pos.	Part No	Qty	Parts name
1.	109-0904	[2]	PANEL AS
2.	109-0905	[1]	PANEL AS
	7X-2484	[1]	LATCH-HANDLE
3.	153-0973	[1]	FENDER AS
	4V-0969	[1]	PLATE AS
4.	134-5589	[2]	PLATE
5.	8T-8917	[21]	BOLT(1/2-13X1.25-IN)
6.	104-2231	[4]	NUT-SPRING
7.	6V-8188	[24]	NUT(1/2-13-THD)
8.	8T-4223	[55]	WASHER-HARD(13.5X25.5X3-MM THK)
9.	109-3943	[1]	PANEL AS
	9W-8940	[1]	PLATE
10.	127-8514	[1]	PANEL AS
	7R-7963	[1]	PLATE AS
	7X-2484	[1]	LATCH-HANDLE
11.	5P-2566	[5]	BOLT(1/2-13X1.5-IN)
12.	8T-1579	[3]	PLATE
13.	8T-9496	[6]	LOCKNUT(9/16-18-THD)
14.	8Y-4000	[3]	LATCH AS(T-BAR, COMPARTMENT)
15.	9B-7237	[38]	BOLT(3/8-16X1.25-IN)
16.	6V-8801	[81]	NUT(3/8-16-THD)
17.	5P-1075	[132]	WASHER-HARD(10.2X22.5X3-MM THK)
18.	5M-3062	[42]	BOLT(3/8-16X0.75-IN)
19.	4L-6454	[16]	BOLT(3/8-16X1-IN)
20.	109-1177	[1]	PLATE
21.	129-5057	[1]	PANEL AS
22.	8T-4896	[75]	WASHER-HARD(10.2X18.5X2.5-MM THK)
23.	7R-3334	[2]	BAR
24.	103-1504	[2]	ANGLE
25.	103-1900	[2]	HINGE
26.	139-2758	[1]	PANEL AS
27.	109-0513	[1]	PANEL AS
	5P-5844	[2]	STUD-WELD
28.	139-2751	[1]	PANEL AS
29.	109-3945	[1]	PANEL AS
	7X-2484	[1]	LATCH-HANDLE
30.	134-5588	[2]	PLATE
31.	109-3944	[1]	PANEL AS
	7F-7691	[2]	CLIP-RACK STOP
	9W-8940	[1]	PLATE
32.	127-8515	[1]	PANEL AS
	7R-7963	[1]	PLATE AS
33.	108-7756	[3]	ROD
34.	7R-9612	[2]	ROD
35.	137-1967	[1]	PLATE
36.	8T-8919	[2]	BOLT(1/2-13X1.75-IN)
37.	102-9503	[2]	PANEL
38.	139-2755	[1]	PANEL AS
39.	126-6528	[2]	PANEL
40.	139-2756	[1]	PANEL AS
41.	109-0727	[1]	SUPPORT AS
42.	111-1716	[1]	ANGLE AS
	7R-7963	[3]	PLATE AS
	7T-1099	[5]	LINK
43.	030-7572	[11]	BOLT(3/8-16-THD)
44.	109-0780	[1]	PANEL AS
	7X-2484	[1]	LATCH-HANDLE
45.	109-0838	[1]	PANEL AS
	7X-2484	[1]	LATCH-HANDLE
46.	153-0972	[1]	PLATE
47.	9G-9154	[2]	CLIP
48.	109-1765	[1]	PLATE
49.	102-9504	[1]	PANEL
50.	7R-3336	[2]	PIN
51.	3B-4617	[2]	PIN-COTTER
52.	3B-4618	[5]	PIN-COTTER
53.	8T-9007E		SEAL(566CM)
54.	030-7571	[8]	BOLT(3/8-16X1-IN)
55.	111-1777	[14]	BUMPER-RUBBER
56.	111-1778	[4]	BUMPER-RUBBER
57.	137-1968	[1]	PLATE
58.	112-1723	[1]	ANGLE
59.	137-4368	[1]	PLATE
60.	112-1722	[1]	PLATE
61.	8B-7997	[2]	BOLT-SOCKET HEAD(1/2-13X2-IN)
62.	6V-8189	[14]	NUT(5/16-18-THD)
63.	8T-4224	[14]	WASHER-HARD(8.8X16X2-MM THK)
64.	5E-9418	[4]	HOOK
65.	114-0172	[2]	HINGE
66.	114-0177	[1]	TUBE AS
67.	131-3328	[2]	ANGLE AS
68.	5J-1752	[9]	SCREW(5/16-18X1-IN)
69.	107-5012	[1]	SCREW-HEX SOCKET
70.	8T-9393	[4]	BOLT(5/8-11X1.5-IN)
71.	8T-4122	[4]	WASHER-HARD(17X32X3.5-MM THK)
72.	142-3041B	[5]	SHIM(6-MM THK)
73.	4L-9337	[2]	BOLT(3/8-16X1.5-IN)
74.	142-5058	[4]	ANGLE
75.	142-5057B	[4]	SHIM(2-MM THK)
	B		USE AS REQUIRED
	E		ORDER BY THE CENTIMETER
