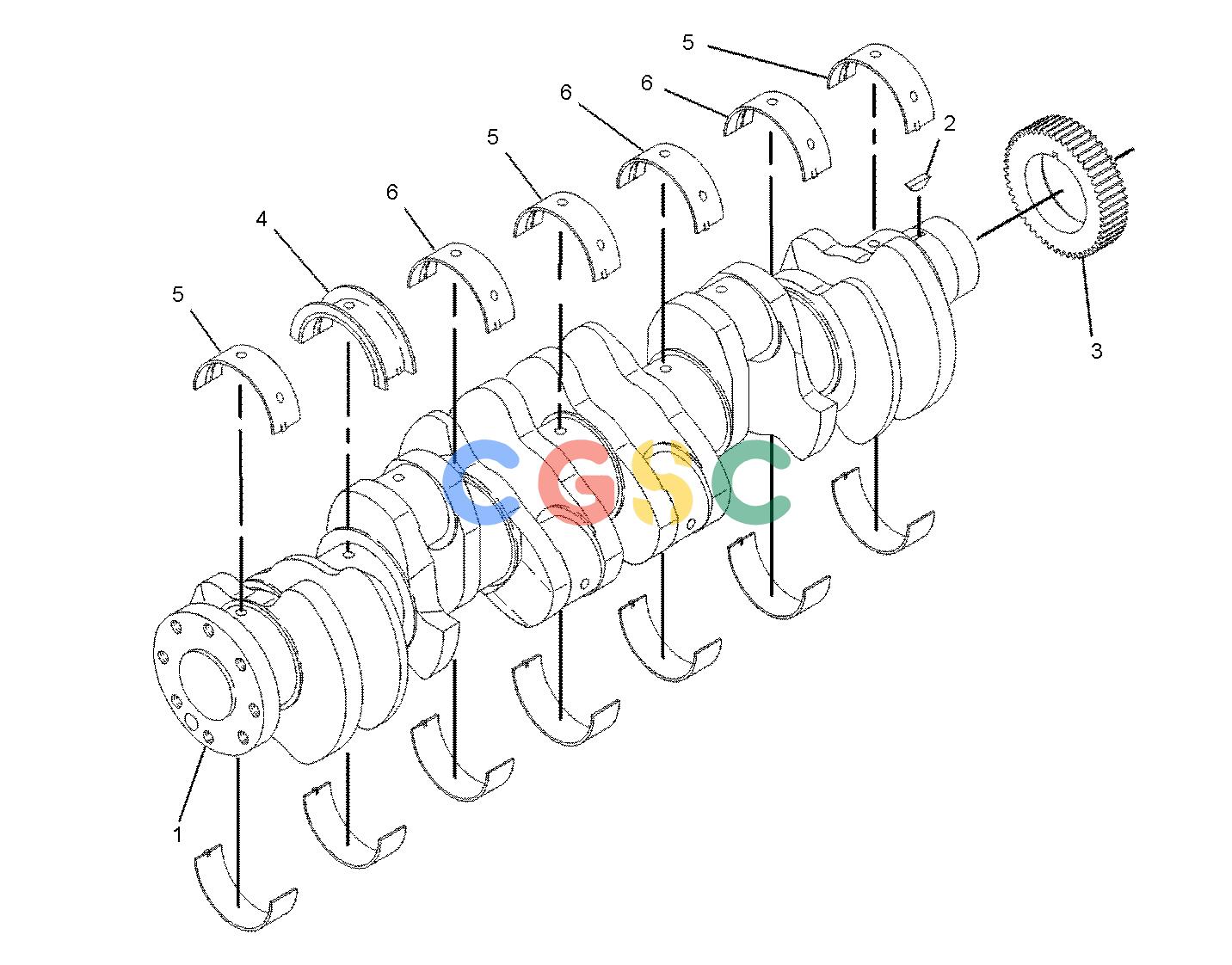

| 1. | 105-1725 | [1] | CRANKSHAFT AS | |
| 2. | 1B-8705 | [1] | KEY-WOODRUFF | |
| 3. | 2W-8147 | [1] | GEAR(50-TEETH) | |
| 4. | 107-7602 | [1] | BEARING-THRUST | |
| | 7C-6969AB | | BEARING-THRUST(0.5-MM OS) | |
| | 7C-6970AB | | BEARING-THRUST(0.5-MM OS, 0.5-MM US) | |
| | 7C-6966AB | | BEARING-THRUST(0.25-MM US) | |
| | 7C-6967AB | | BEARING-THRUST(0.5-MM US) | |
| 5. | 101-1530 | [3] | BEARING-MAIN | |
| | 7C-6974AB | | BEARING-MAIN(0.5-MM OS) | |
| | 7C-6975AB | | BEARING-MAIN(0.5-MM OS, 0.5-MM US) | |
| | 7C-6971AB | | BEARING-MAIN(0.25-MM US) | |
| | 7C-6972AB | | BEARING-MAIN(0.5-MM US) | |
| 6. | 107-7708 | [3] | BEARING-MAIN | |
| | 7C-6964AB | | BEARING-MAIN(0.5-MM OS) | |
| | 7C-6965AB | | BEARING-MAIN(0.5-MM OS, 0.5-MM US) | |
| | 7C-6961AB | | BEARING-MAIN(0.25-MM US) | |
| | 7C-6962AB | | BEARING-MAIN(0.5-MM US) | |
| | | | |
| | 7C-7980AF | [1] | SLEEVE-OIL SEAL | |
| | | | (USED ONLY TO REPAIR THE REAR SEAL SURFACE OF THE CRANKSHAFT) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 196-9518 | | KIT-BASIC ENGINE REPAIR(MAIN BEARING)(CRANKSHAFT) | |
| | | | (INCLUDES A COMPLETE SET OF STANDARD MAIN & THRUST BEARINGS) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
