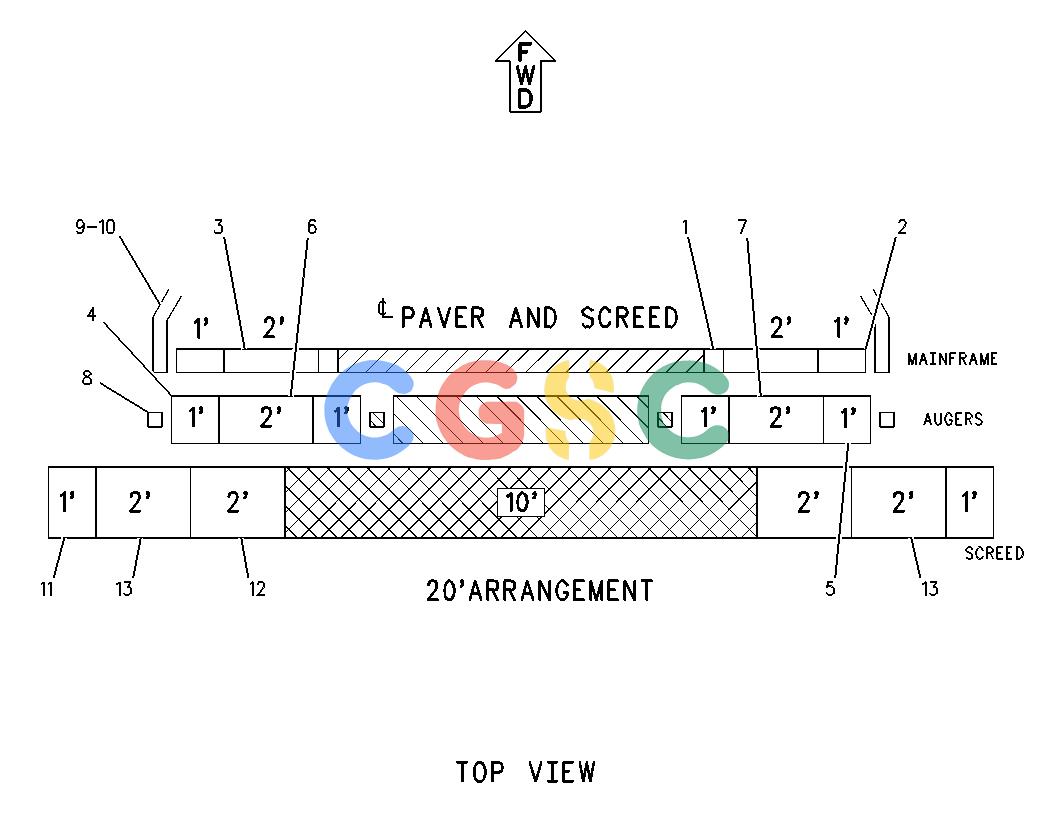

| 1. | 116-9510Y | [1] | EXTENSION GP-MAIN FRAME(6-IN) | |
| 2. | 106-9714Y | [2] | EXTENSION GP-MAIN FRAME(1-FT)(MAINFRAME) | |
| 3. | 106-9715Y | [2] | EXTENSION GP-MAIN FRAME(2-FT) | |
| 4. | 5E-9808Y | [2] | EXTENSION GP-AUGER(1-FT, LH) | |
| 5. | 5E-9809Y | [2] | EXTENSION GP-AUGER(1-FT, RH) | |
| 6. | 5E-9825Y | [1] | EXTENSION GP-AUGER(2-FT, LH) | |
| 7. | 5E-9826Y | [1] | EXTENSION GP-AUGER(2-FT, RH) | |
| 8. | 116-9509Y | [2] | BEARING GP-AUGER(OUTBOARD) | |
| 9. | 106-9689Y | [2] | BRACE GP | |
| 10. | 109-2722Y | [2] | BRACKET GP-SUPPORT | |
| 11. | 117-7802Y | [2] | EXTENSION GP-SCREED(1-FT) | |
| 12. | 119-1411Y | [2] | EXTENSION GP-SCREED(2-FT WITHOUT HEAT) | |
| 13. | 117-8334Y | [2] | EXTENSION GP-SCREED(2-FT WITH HEAT, VIBRATION)(2 FT W/ HEAT-24V) | |
| | 139-2064CF | [1] | SHAFT AS-DRIVE | |
| | 123-7436F | [1] | SHAFT-DRIVE | |
| | 102-2735CF | [2] | KEY-SQUARE(3/16IN X 3/4IN LG) | |
| | 105-1533CF | [2] | KEY-SQUARE(1/4IN X 3/4IN LG) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
