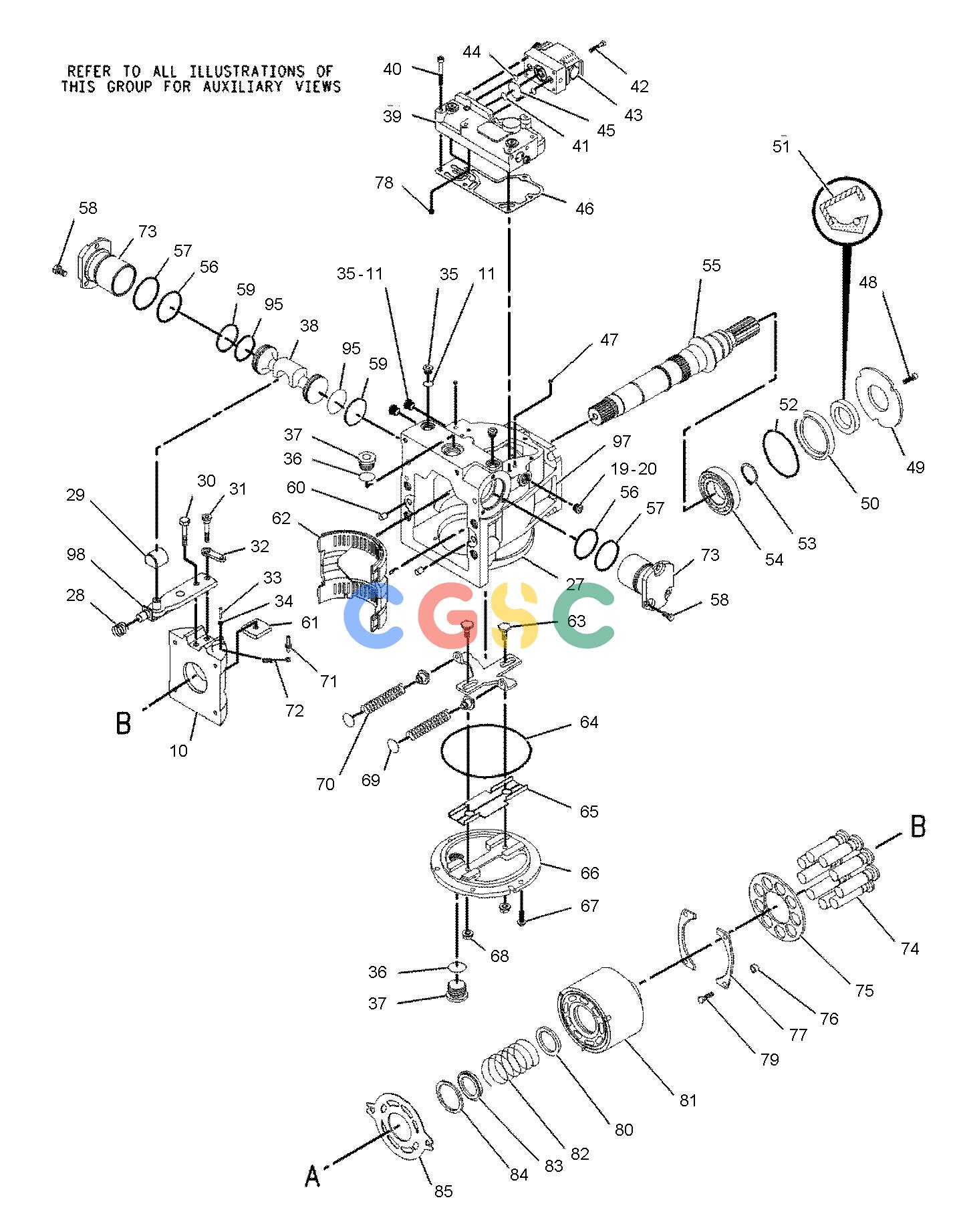

| 1. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 2. | 5E-8760 | [1] | PLATE-RETAINING | |
| 3. | 109-5166 | [1] | COVER-CHARGE | |
| 4. | 1G-9196 | [1] | PIN | |
| 5. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 6. | 096-0008M | [4] | BOLT-SOCKET HEAD(M16X2X140-MM) | |
| 7. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 8. | 5E-9816HS | [2] | SEAL-O-RING | |
| 9. | 8J-2413HS | [2] | SEAL-O-RING | |
| 10. | UZ | [1] | SWASHPLATE |
| 11. | 3J-1907T | [12] | SEAL-O-RING | |
| 12. | 9S-4191T | [4] | PLUG(9/16-18-THD) | |
| 13. | 5E-8764T | [1] | NUT(1-5/16-12-THD) | |
| 14. | 7M-8485T | [1] | SEAL-O-RING | |
| 15. | 5E-8750T | [1] | TUBE | |
| 16. | TZ | [1] | MANIFOLD |
| 17. | SZ | [1] | VALVE |
| 18. | 5E-8777 | [2] | PLUG | |
| 19. | 3J-7354 | [1] | SEAL-O-RING | |
| 20. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 21. | 6R-1702O | [1] | NUT-SPECIAL(7/8-14-THD) | |
| 22. | 6R-1704O | [1] | PLUG AS | |
| 23. | 033-6027HO | [1] | SEAL-O-RING | |
| 24. | 5E-8748O | [1] | SPRING | |
| 25. | 6R-1703O | [1] | POPPET | |
| 26. | 126-6638H | [1] | GASKET-END CAP | |
| 27. | Z | [1] | HOUSING |
| 28. | 1G-9178 | [1] | SPRING | |
| 29. | 126-6637 | [1] | BLOCK-SLIDER | |
| 30. | 134-1824U | [1] | BOLT(M10X1.5X35-MM) | |
| 31. | 134-1825U | [1] | BOLT(M8X1.25X50-MM) | |
| 32. | 145-6893U | [1] | LINK-FEEDBACK | |
| 33. | 5E-8774U | [1] | PIN | |
| 34. | 5E-8791U | [1] | WASHER(3.53X6.86X1.52-MM THK) | |
| 35. | 9S-8004 | [8] | PLUG(9/16-18-THD) | |
| 36. | 3D-2824 | [2] | SEAL-O-RING | |
| 37. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 38. | WZ | [1] | SLEEVE-SERVO |
| 39. | JZ | [1] | COVER |
| 40. | 8T-9534M | [6] | BOLT(M6X1X50-MM) | |
| 41. | 033-6033HJL | [1] | SEAL-O-RING | |
| 42. | 8C-8580JM | [4] | BOLT-SOCKET HEAD(M5X0.8X16-MM) | |
| 43. | JZ | [1] | SOLENOID |
| 44. | 8L-2779HL | [2] | SEAL-O-RING | |
| 45. | 5P-5600HL | [1] | SEAL-O-RING | |
| 46. | 123-5208HJ | [1] | GASKET-CONTROL | |
| 47. | 7X-9232 | [3] | PLUG-VENT(PUMP CONTROL) | |
| 48. | 8T-0269M | [4] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 49. | 1G-9189 | [1] | PLATE-RETAINER | |
| 50. | 154-6880 | [1] | SEAL AS | |
| 51. | 1G-9187H | [1] | SEAL-LIP TYPE | |
| 52. | 1G-9188H | [1] | SEAL-O-RING | |
| 53. | 6V-7700 | [1] | RING-RETAINING | |
| 54. | 1G-9185 | [1] | BEARING-ROLLER | |
| 55. | 1G-9199 | [1] | SHAFT | |
| 56. | 1G-9192HV | [2] | SEAL-O-RING | |
| 57. | 1G-9191HV | [2] | SEAL-O-RING | |
| 58. | 6V-5215VM | [6] | BOLT(M8X1.25X16-MM) | |
| 59. | HWXZ | [2] | SEAL-O-RING |
| 60. | 077-8353 | [2] | PIN(SPRING) | |
| 61. | 180-2430U | [1] | GUIDE | |
| 62. | 1G-9175 | [1] | KIT-BEARING | |
| 63. | 161-3931 | [2] | POST-GUIDE | |
| 64. | 1G-9182H | [1] | SEAL-O-RING | |
| 65. | 134-1832 | [1] | COVER-INSERT | |
| 66. | 135-0338 | [1] | COVER | |
| 67. | 132-6697HM | [6] | BOLT(M8X1.25X20-MM) | |
| 68. | 5E-8765H | [2] | NUT | |
| 69. | 1G-9181 | [2] | SHIM(0.51-MM THK) | |
| 70. | 1G-9183 | [2] | SPRING | |
| 71. | 199-7051 | [1] | PIN | |
| 72. | 1G-9177 | [1] | LINK | |
| 73. | VZ | [1] | SLEEVE-SERVO |
| 74. | 134-1836N | [9] | PISTON AS | |
| 75. | 134-1838N | [1] | GUIDE | |
| 76. | 173-3266N | [4] | SPACER | |
| 77. | 134-1839N | [2] | GUIDE-BEARING | |
| 78. | 175-5581 | [2] | ORIFICE | |
| 79. | 5E-8784HNM | [4] | BOLT(M6X1X20-MM) | |
| 80. | 134-1829NP | [1] | SEAT | |
| 81. | NPZ | [1] | CYLINDER BLOCK |
| 82. | 134-1828NP | [1] | SPRING | |
| 83. | 134-1830NP | [1] | RETAINER-SPRING | |
| 84. | 145-8613NP | [1] | RING-RETAINING | |
| 85. | 145-6892 | [1] | PLATE-VALVE | |
| 86. | 1G-9193 | [1] | BEARING-JOURNAL | |
| 87. | 134-1827 | [1] | SPACER | |
| 88. | 126-6640 | [1] | BRACKET-LIFTING | |
| 89. | 098-3039 | [1] | WASHER(8.33X15X2.12-MM THK) | |
| 90. | 1G-8026 | [4] | WASHER(17X30X4-MM THK) | |
| 91. | 5E-8743 | [1] | BUSHING-TERMINAL | |
| 92. | 109-5165 | [1] | SHAFT-CHARGE | |
| 93. | 108-8537 | [1] | PUMP GP-GEROTOR(CHARGE) | |
| 94. | 5E-8771H | [1] | SEAL-O-RING | |
| 95. | HWXZ | [2] | RING-PISTON |
| 96. | 5E-8747 | [2] | VALVE-CHECK | |
| 97. | 149-2649 | [1] | HOUSING | |
| 98. | 180-2429U | [1] | ARM-SERVO | |
| 99. | 187-9360 | [1] | ADAPTER | |
| 100. | 170-4717 | [1] | SEAL-O-RING | |
| 101. | 6H-1717 | [4] | BOLT(1/2-13X1.125-IN) | |
| 102. | 108-5173 | [1] | COVER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 1G-9205H | [1] | KIT-OVERHAUL SEAL | |
| | 214-7732J | [1] | VALVE GP-PUMP CONTROL(PROPEL PISTON PUMP) | |
| | 1G-9335L | [1] | KIT-SOLENOID(PUMP CONTROL) | |
| | 1G-9203N | [1] | KIT-CYLINDER BLOCK | |
| | 7R-3825O | [1] | KIT-RELIEF VALVE | |
| | 134-1835P | [1] | KIT-CYLINDER BLOCK | |
| | 5E-8751S | [2] | KIT-VALVE | |
| | 107-5896T | [1] | KIT-MANIFOLD | |
| | 1G-9176U | [1] | KIT-PUMP REPAIR | |
| | 1G-9190V | [1] | KIT-DISPLACEMENT LIMITER | |
| | 1G-9202W | [1] | KIT-SERVO PISTON(PROPEL PISTON PUMP) | |
| | 7X-5448X | [1] | KIT-PISTON RING | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | O | | KIT MARKED O SERVICES PART(S) MARKED O |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | V | | KIT MARKED V SERVICES PART(S) MARKED V |
| | W | | KIT MARKED W SERVICES PART(S) MARKED W |
| | X | | KIT MARKED X SERVICES PART(S) MARKED X |
| | Z | | NOT SERVICED SEPARATELY |
