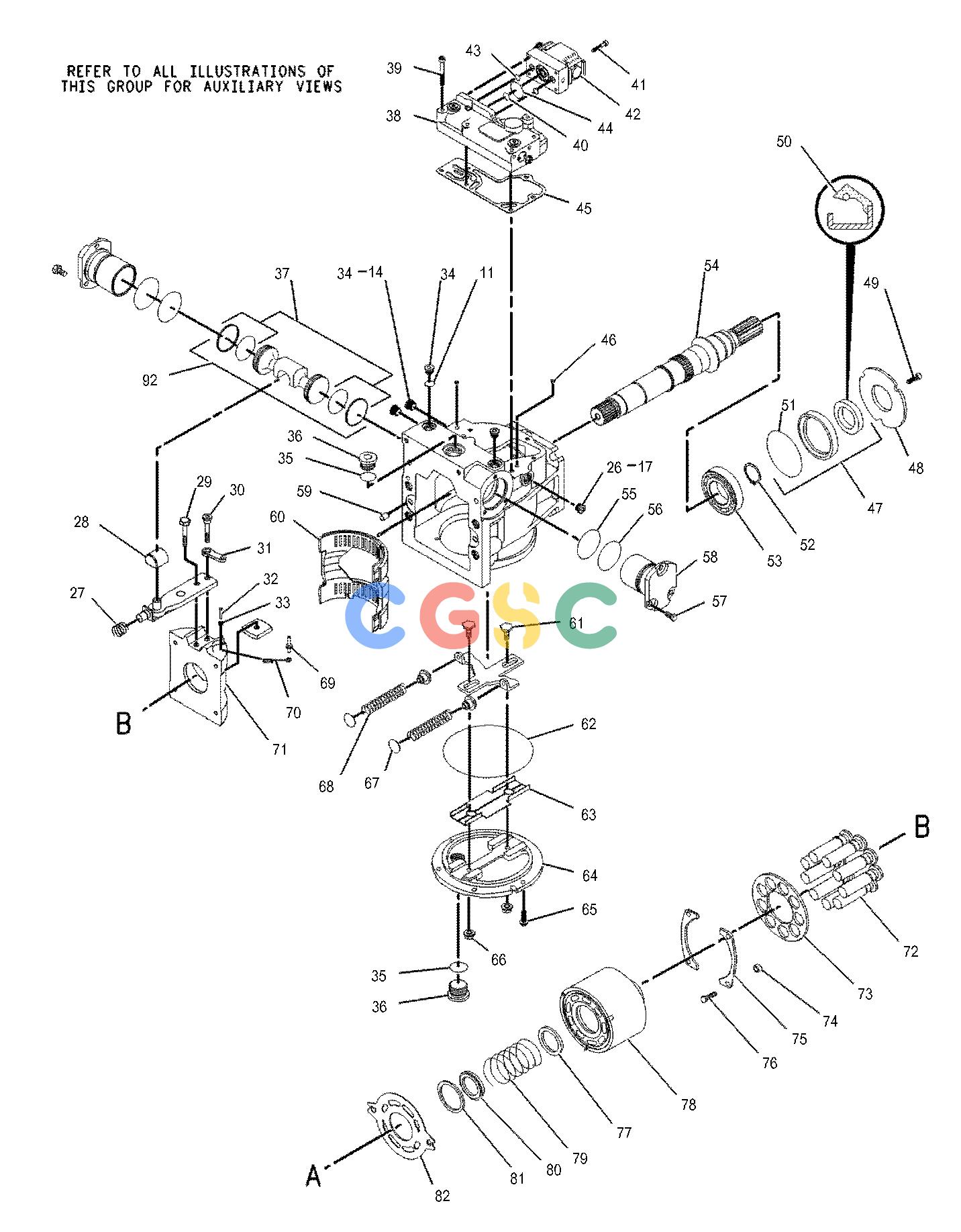

Pos.	Part No	Qty	Parts name
1.	6V-8837M	[6]	BOLT(M6X1X16-MM)
2.	5E-8760	[1]	PLATE-RETAINING
3.	JZ	[1]	COVER
4.	1G-9196	[1]	PIN
5.	7R-3453	[1]	KEY-WOODRUFF
6.	096-0008M	[4]	BOLT-SOCKET HEAD(M16X2X140-MM)
7.	8T-0338M	[2]	BOLT-SOCKET HEAD(M8X1.25X45-MM)
8.	5E-9816HP	[2]	SEAL-O-RING
9.	030-4605HP	[2]	SEAL-O-RING
10.	SZ	[1]	MANIFOLD
11.	3J-1907S	[12]	SEAL-O-RING
12.	9S-4191S	[4]	PLUG(9/16-18-THD)
13.	5E-8764S	[1]	NUT(1-5/16-12-THD)
14.	7M-8485PS	[1]	SEAL-O-RING
15.	5E-8750S	[1]	TUBE
16.	HZ	[2]	VALVE
17.	3J-7354	[1]	SEAL-O-RING
18.	5E-8777	[2]	PLUG
19.	5E-8747	[2]	VALVE-CHECK
20.	6R-1702V	[1]	NUT-SPECIAL(7/8-14-THD)
21.	6R-1704V	[1]	PLUG AS
22.	033-6027PV	[1]	SEAL-O-RING
23.	5E-8748V	[1]	SPRING
24.	6R-1703V	[1]	POPPET
25.	126-6638P	[1]	GASKET-END CAP
26.	9S-8002	[1]	PLUG(7/16-20-THD)
27.	1G-9178	[1]	SPRING
28.	126-6637	[1]	BLOCK-SLIDER
29.	134-1824N	[1]	BOLT(M10X1.5X35-MM)
30.	134-1825N	[1]	BOLT(M8X1.25X50-MM)
31.	145-6893N	[1]	LINK-FEEDBACK
			-OR-
	203-8509N	[1]	LINK-FEEDBACK
32.	5E-8774N	[1]	PIN
33.	5E-8791N	[1]	WASHER(3.53X6.86X1.52-MM THK)
34.	9S-8004	[8]	PLUG(9/16-18-THD)
35.	3D-2824	[2]	SEAL-O-RING
36.	9S-8008	[2]	PLUG(1-1/16-12-THD)
37.	7X-5448P	[1]	KIT-PISTON RING
38.	XZ	[1]	MANIFOLD(EDC)
39.	8T-9534M	[6]	BOLT(M6X1X50-MM)
40.	033-6033PWX	[1]	SEAL-O-RING
41.	8C-8580XM	[4]	BOLT-SOCKET HEAD(M5X0.8X16-MM)
42.	WXZ	[1]	SOLENOID(24-VOLT)(EDC)
43.	8L-2779PWX	[2]	SEAL-O-RING
44.	5P-5600PWX	[1]	SEAL-O-RING
45.	123-5208PWX	[1]	GASKET-CONTROL
46.	7X-9232	[3]	PLUG-VENT
47.	154-6880	[1]	SEAL AS
48.	1G-9189	[1]	PLATE-RETAINER
49.	8T-0269M	[4]	BOLT-SOCKET HEAD(M6X1X20-MM)
50.	1G-9187P	[1]	SEAL-LIP TYPE
51.	1G-9188P	[1]	SEAL-O-RING
52.	6V-7700	[1]	RING-RETAINING
53.	172-6883	[1]	BEARING AS
54.	1G-9199	[1]	SHAFT
55.	1G-9192LP	[1]	SEAL-O-RING
56.	1G-9191LP	[1]	SEAL-O-RING
57.	6V-5215LM	[6]	BOLT(M8X1.25X16-MM)
58.	LZ	[2]	STOP
59.	077-8353	[2]	PIN(SPRING)
60.	1G-9175	[1]	KIT-BEARING
61.	161-3931	[2]	POST-GUIDE
62.	1G-9182P	[1]	SEAL-O-RING
63.	134-1832	[1]	COVER-INSERT
64.	135-0338	[1]	COVER
65.	132-6697PM	[6]	BOLT(M8X1.25X20-MM)
66.	5E-8765P	[2]	NUT
67.	1G-9181	[2]	SHIM(0.51-MM THK)
68.	1G-9183	[2]	SPRING
69.	199-7051	[1]	PIN
70.	1G-9177	[1]	LINK
71.	NZ	[1]	SWASHPLATE
72.	134-1836U	[9]	PISTON AS
73.	134-1838U	[1]	GUIDE
74.	173-3266U	[4]	SPACER
75.	134-1839U	[2]	GUIDE-BEARING
76.	5E-8784PUM	[4]	BOLT(M6X1X20-MM)
77.	134-1829TU	[1]	SEAT
78.	TUZ	[1]	CYLINDER BLOCK
79.	134-1828TU	[1]	SPRING
80.	134-1830TU	[1]	RETAINER-SPRING
81.	145-8613TU	[1]	RING-RETAINING
82.	145-6892	[1]	PLATE-VALVE
83.	1G-9193	[1]	BEARING-JOURNAL
84.	134-1827	[1]	SPACER
85.	126-6640	[1]	BRACKET-LIFTING
86.	098-3039	[1]	WASHER(8.33X15X2.12-MM THK)
87.	1G-8026	[4]	WASHER(17X30X4-MM THK)
88.	5E-8743J	[2]	BUSHING-TERMINAL
89.	109-5165	[1]	SHAFT-CHARGE
90.	108-8537	[1]	PUMP GP-GEROTOR(CHARGE)
91.	5E-8771P	[1]	SEAL-O-RING
92.	1G-9202	[1]	KIT-SERVO PISTON(PROPEL PISTON PUMP)
			(INCLUDES 7X-5448 KIT-PISTON RING)
93.	6H-1717	[4]	BOLT(1/2-13X1.125-IN)
94.	8C-5237	[1]	SEAL-O-RING
95.	108-5173	[1]	COVER

			AVAILABLE REPAIR KIT(S):
	159-4010H	[1]	KIT-RELIEF VALVE(PRESSURE LIMITER)
	109-5166J	[1]	COVER-CHARGE
	1G-9190L	[1]	KIT-DISPLACEMENT LIMITER
	1G-9176N	[1]	KIT-PUMP REPAIR
	1G-9205P	[1]	KIT-OVERHAUL SEAL
	107-5896S	[1]	KIT-MANIFOLD
	134-1835T	[1]	KIT-CYLINDER BLOCK
	1G-9203U	[1]	KIT-CYLINDER BLOCK
	7R-3825V	[1]	KIT-RELIEF VALVE
	1G-9335W	[1]	KIT-SOLENOID(PUMP CONTROL)
	153-1043X	[1]	VALVE-PUMP CONTROL
	H		KIT MARKED H SERVICES PART(S) MARKED H
	J		KIT MARKED J SERVICES PART(S) MARKED J
	L		KIT MARKED L SERVICES PART(S) MARKED L
	M		METRIC PART
	N		KIT MARKED N SERVICES PART(S) MARKED N
	P		KIT MARKED P SERVICES PART(S) MARKED P
	S		KIT MARKED S SERVICES PART(S) MARKED S
	T		KIT MARKED T SERVICES PART(S) MARKED T
	U		KIT MARKED U SERVICES PART(S) MARKED U
	V		KIT MARKED V SERVICES PART(S) MARKED V
	W		KIT MARKED W SERVICES PART(S) MARKED W
	X		KIT MARKED X SERVICES PART(S) MARKED X
	Z		NOT SERVICED SEPARATELY

卡特零件查询（AP-1055B） 171-5706: PUMP GP-PISTON
