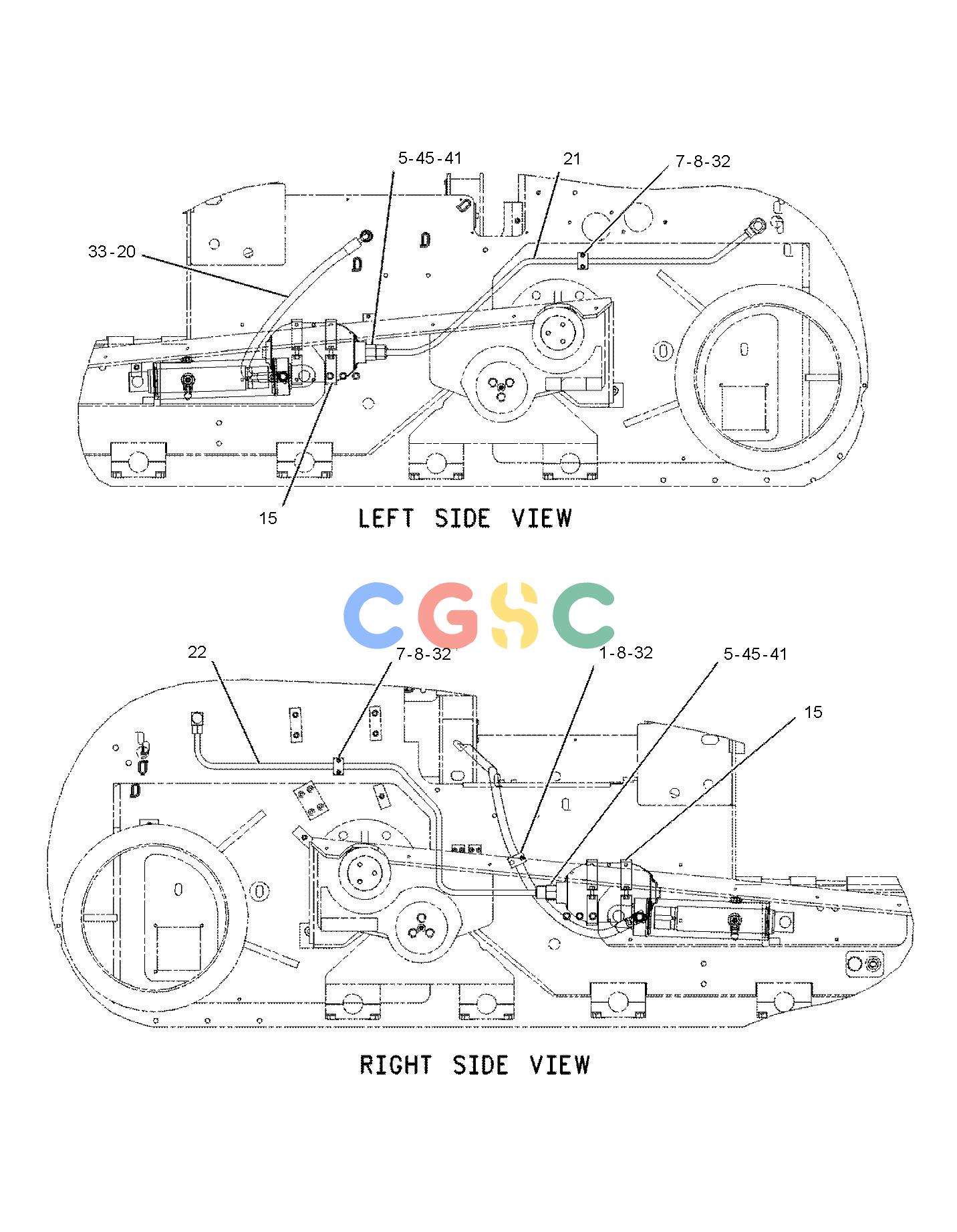

| 1. | 1G-9959 | [2] | CLAMP | |
| 2. | 5R-6302 | [2] | CAP-DUST | |
| 3. | 6V-0852 | [2] | CAP-DUST | |
| 4. | 6V-3965 | [2] | FITTING(QUICK DISCONNECT) | |
| 5. | 9X-6643 | [2] | ADAPTER | |
| 6. | 6V-8077 | [2] | ELBOW | |
| 7. | 7R-7907 | [4] | CLAMP | |
| 8. | 7V-5628 | [3] | PLATE | |
| 9. | 7X-5308 | [2] | CAP-DUST | |
| 10. | 8T-6776 | [2] | ADAPTER | |
| 11. | 190-0185I | [1] | HOSE AS | |
| 12. | 116-0118 | [2] | CLIP | |
| 13. | 134-3684 | [2] | ACCUMULATOR AS | |
| | | | (EACH INCLUDES) |
| | 134-3664 | [1] | CAP | |
| | 134-3665 | [1] | SCREW | |
| | 134-3666 | [1] | SEAL | |
| | 134-3667 | [1] | FILM-WARNING | |
| 14. | 134-2892Y | [2] | CYLINDER GP-HYDRAULIC | |
| 15. | 142-3061 | [4] | CLAMP AS | |
| 16. | 148-4415 | [2] | COUPLING | |
| 17. | 154-4165I | [1] | HOSE AS | |
| 18. | 171-5367I | [1] | HOSE AS | |
| 19. | 179-1247I | [1] | HOSE AS | |
| 20. | 179-6737I | [1] | HOSE AS | |
| 21. | 180-8397 | [1] | TUBE AS | |
| 22. | 180-8398 | [1] | TUBE AS | |
| 23. | 180-8399 | [1] | TUBE AS | |
| 24. | 180-8400 | [1] | TUBE AS | |
| 25. | 184-3113 | [2] | VALVE GP-PRESSURE REDUCING | |
| | | | (EACH INCLUDES) |
| | 195-2627 | [1] | KIT-SEAL | |
| | 195-2628 | [1] | VALVE-NEEDLE | |
| 26. | 172-7073 | [2] | SWITCH AS-PRESSURE(TRACK TENSION) | |
| | | | (EACH INCLUDES) |
| | 8T-5677BD | | SLEEVE | |
| | 186-3735 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-6008BD | | TUBE-HEAT SHRINK(6.35-MM DIA) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 27. | 3J-1907 | [8] | SEAL-O-RING | |
| 28. | 3J-7354 | [4] | SEAL-O-RING | |
| 29. | 3K-0360 | [8] | SEAL-O-RING | |
| 30. | 4J-5477 | [2] | SEAL-O-RING | |
| 31. | 4L-6454 | [8] | BOLT(3/8-16X1-IN) | |
| 32. | 4M-5282 | [6] | BOLT(1/4-20X1.5-IN) | |
| 33. | 6V-8398 | [7] | SEAL-O-RING | |
| 34. | 6V-8625 | [2] | ELBOW | |
| 35. | 6V-8722 | [2] | ELBOW | |
| 36. | 6V-8982 | [2] | ELBOW | |
| 37. | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 38. | 6V-9002 | [2] | ELBOW | |
| 39. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 40. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| 41. | 6V-9746 | [2] | SEAL-O-RING | |
| 42. | 6V-9851 | [1] | ELBOW | |
| 43. | 6V-9852 | [2] | ELBOW(SWIVEL) | |
| 44. | 7J-9108 | [8] | SEAL-O-RING | |
| 45. | 7M-8485 | [2] | SEAL-O-RING | |
| 46. | 8T-2353 | [2] | ADAPTER | |
| 47. | 8T-2501 | [4] | BOLT(3/8-16X2-IN) | |
| 48. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 49. | 9S-4182 | [2] | PLUG(7/16-20-THD) | |
| 50. | 9S-4185 | [2] | PLUG(3/4-16-THD) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
