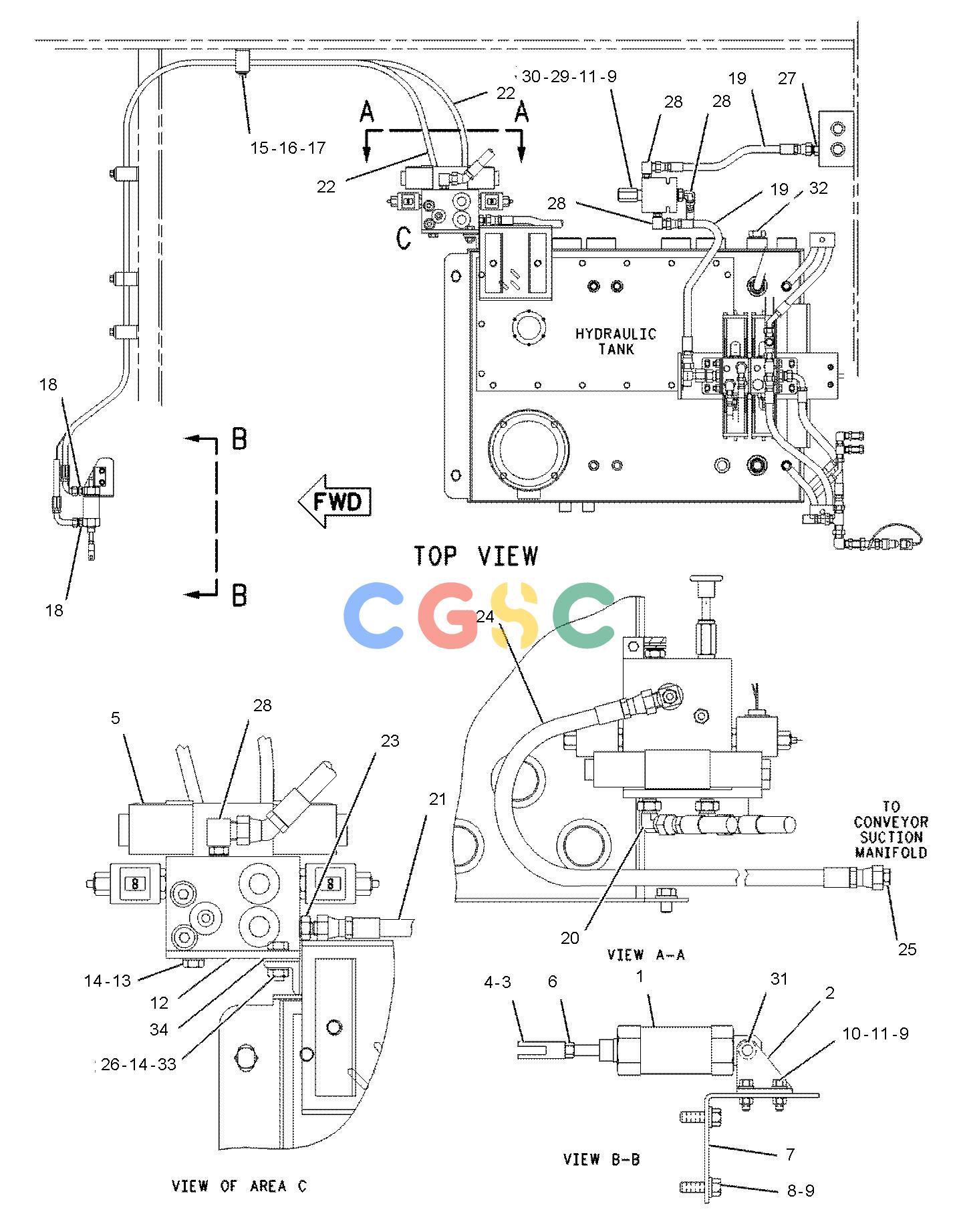

| 1. | 188-0524 | [1] | CYLINDER GP-HYDRAULIC | |
| 2K-4973 | [1] | LOCKNUT(3/8-16-THD) | |
| 228-9362 | [1] | KIT-SEAL(HYDRAULIC CYLINDER) | |
| 2. | 108-3801 | [1] | BRACKET-CLEVIS | |
| 3. | 113-9333 | [1] | ROD END | |
| 4. | 108-3803 | [1] | PIN-CLEVIS | |
| 5. | 197-4575Y | [1] | MANIFOLD GP-CONTROL(PROPEL) | |
| 6. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 7. | 112-0838 | [1] | BRACKET | |
| 8. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 9. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 8T-9364 | [2] | BOLT(1/4-20X0.625-IN) | |
| 11. | 6V-8185 | [4] | NUT(1/4-20-THD) | |
| 12. | 169-2942 | [1] | BRACKET | |
| 13. | 4L-6454 | [1] | BOLT(3/8-16X1-IN) | |
| 14. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 15. | 086-9286 | [8] | CLAMP | |
| 16. | 3V-0046 | [4] | PLATE | |
| 17. | 8C-6561 | [4] | BOLT(5/16-18X1.375-IN) | |
| 18. | 148-8320 | [2] | CONNECTOR AS | |
| <!-- COMMENT --> |
| (EACH INCLUDES) |
| 4J-5477 | [1] | SEAL-O-RING | |
| 8C-6865 | [1] | CONNECTOR | |
| 19. | 118-8099I | [2] | HOSE AS | |
| 20. | 148-8369 | [2] | ELBOW AS | |
| <!-- COMMENT --> |
| (EACH INCLUDES) |
| 3J-7354 | [1] | SEAL-O-RING | |
| 4J-5477 | [1] | SEAL-O-RING | |
| 6V-8628 | [1] | ELBOW | |
| 21. | 091-9006I | [1] | HOSE AS | |
| 22. | 9W-7327I | [2] | HOSE AS | |
| 23. | 148-8336 | [1] | CONNECTOR AS | |
| 3J-1907 | [1] | SEAL-O-RING | |
| 6V-8397 | [1] | SEAL-O-RING | |
| 6V-8636 | [1] | CONNECTOR | |
| 24. | 8Y-7520I | [1] | HOSE AS | |
| 25. | 148-8319 | [1] | CONNECTOR AS | |
| 2M-9780 | [1] | SEAL-O-RING | |
| 6V-8397 | [1] | SEAL-O-RING | |
| 6V-8715 | [1] | CONNECTOR | |
| 26. | 4L-9337 | [2] | BOLT(3/8-16X1.5-IN) | |
| 27. | 148-8328 | [1] | CONNECTOR AS | |
| 3D-2824 | [1] | SEAL-O-RING | |
| 6V-8398 | [1] | SEAL-O-RING | |
| 6V-8633 | [1] | CONNECTOR | |
| 28. | 148-8378 | [3] | ELBOW AS | |
| <!-- COMMENT --> |
| (EACH INCLUDES) |
| 3J-1907 | [1] | SEAL-O-RING | |
| 6V-8397 | [1] | SEAL-O-RING | |
| 6V-8724 | [1] | ELBOW | |
| 29. | 8T-9367 | [2] | BOLT(1/4-20X2-IN) | |
| 30. | 217-7394J | [1] | VALVE GP-PRESSURE REDUCING(THROTTLE, BRAKE, SHIFT) | |
| 31. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 174-1530 | [1] | PLUG AS | |
| 1N-5998 | [1] | PLUG | |
| 6K-6307 | [1] | SEAL-O-RING | |
| 33. | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 34. | 5T-3132 | [1] | BLOCK | |
| <!-- COMMENT --> |
| |
| <!-- COMMENT --> |
| AVAILABLE REPAIR KIT(S): |
| 245-6141J | [1] | KIT-SEAL | |
| <!-- COMMENT --> |
| (INCLUDES SEAL-O-RING(3) & RING-BACKUP(3) |
| <!-- NOTE -->I |
| REFER TO HYDRAULIC INFORMATION SYSTEM |
| <!-- NOTE -->J |
| KIT MARKED J SERVICES PART(S) MARKED J |
| <!-- NOTE -->M |
| METRIC PART |
| <!-- NOTE -->Y |
| SEPARATE ILLUSTRATION |
