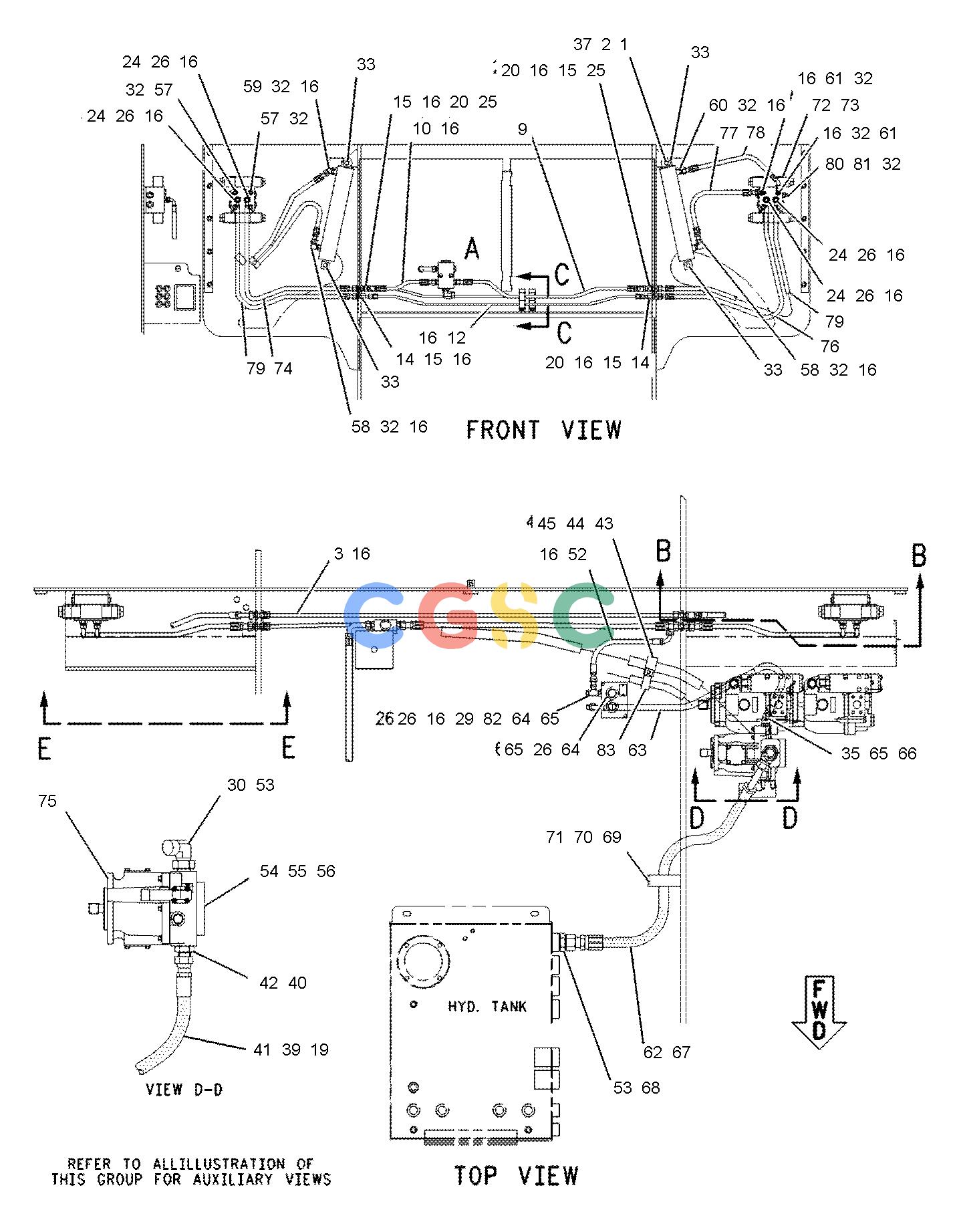

| 1. | 135-0220Y | [2] | CYLINDER GP-HYDRAULIC(HOPPER) | |
| 2. | 103-1501 | [2] | PIN AS | |
| 3. | 110-4555 | [2] | TUBE AS | |
| 4. | 7V-5626 | [2] | CLAMP | |
| 5. | 7V-5628 | [1] | PLATE | |
| 6. | 4M-5282 | [2] | BOLT(1/4-20X1.5-IN) | |
| 7. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 8. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 9. | 2U-9764I | [1] | HOSE AS | |
| 10. | 154-2811I | [1] | HOSE AS | |
| 11. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 110-7751 | [1] | TUBE AS | |
| 13. | 6V-8987 | [2] | ELBOW | |
| 14. | 6V-8994 | [4] | UNION(STRAIGHT) | |
| 15. | 6V-9168 | [8] | NUT(11/16-16-THD) | |
| 16. | 6V-8397 | [35] | SEAL-O-RING | |
| 17. | 7R-9144 | [1] | MANIFOLD-RETURN | |
| 18. | 5P-2675 | [2] | BOLT(1/4-20X1.75-IN) | |
| 19. | 160-2247BG | | SLEEVE-ABRASION | |
| 20. | 6V-9836 | [3] | TEE-SWIVEL | |
| 21. | 4V-0612 | [7] | PLATE | |
| 22. | 4V-0611 | [14] | CLAMP | |
| 23. | 7X-0440 | [7] | BOLT(5/16-18X1.75-IN) | |
| 24. | 6V-8634 | [6] | CONNECTOR | |
| 25. | 150-0128 | [2] | UNION | |
| 26. | 3K-0360 | [8] | SEAL-O-RING | |
| 27. | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 28. | 3D-2824 | [2] | SEAL-O-RING | |
| 29. | 6V-8936 | [1] | REDUCER | |
| 30. | 8T-1682 | [1] | ELBOW | |
| 31. | 7R-7891I | [2] | HOSE AS | |
| 32. | 3J-1907 | [9] | SEAL-O-RING | |
| 33. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 34. | 4S-4455 | [1] | CLIP | |
| 35. | 6V-8624 | [1] | ELBOW | |
| 36. | 6V-9007 | [1] | ELBOW | |
| 37. | 8M-3267 | [2] | SCREW-HEX SOCKET(3/8-16X0.75-IN) | |
| 38. | 6V-9746 | [1] | SEAL-O-RING | |
| 39. | 5K-9090 | [1] | SEAL-O-RING | |
| 40. | 7M-8485 | [1] | SEAL-O-RING | |
| 41. | 111-4165I | [1] | HOSE AS | |
| 42. | 6V-8635 | [1] | CONNECTOR | |
| 43. | 7R-7940 | [2] | CLAMP | |
| 44. | 7R-7951 | [1] | PLATE | |
| 45. | 7X-0264 | [2] | BOLT(1/4-20X2.5-IN) | |
| 46. | 2T-1398 | [6] | CLAMP | |
| 47. | 086-8656 | [7] | NUT | |
| 48. | 2T-1394 | [3] | PLATE-COVER | |
| 49. | 7X-2501 | [3] | BOLT(1/4-20X1.25-IN) | |
| 50. | 111-7380 | [2] | BRACKET AS | |
| 51. | 101-7641I | [2] | HOSE AS | |
| 52. | 111-4661I | [1] | HOSE AS | |
| 53. | 6K-6307 | [2] | SEAL-O-RING | |
| 54. | 8I-0836Y | [1] | PUMP GP-PISTON(AUXILIARY) | |
| 55. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 56. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
| 57. | 9S-4191 | [2] | PLUG(9/16-18-THD) | |
| 58. | 108-2144 | [2] | ELBOW | |
| 59. | 6V-9001 | [1] | ELBOW | |
| 60. | 6V-8636 | [1] | CONNECTOR | |
| 61. | 6V-8781 | [2] | TEE | |
| 62. | 111-4449I | [1] | HOSE AS | |
| 63. | 111-4457I | [1] | HOSE AS | |
| 64. | 6V-8782 | [2] | TEE | |
| 65. | 6V-8398 | [5] | SEAL-O-RING | |
| 66. | 2M-9780 | [1] | SEAL-O-RING | |
| 67. | 8T-0315 | [2] | SEAL-O-RING | |
| 68. | 8T-7926 | [1] | CONNECTOR | |
| 69. | 6W-3110 | [1] | PLATE | |
| 70. | 7X-0318 | [2] | BOLT(7/16-14X4-IN) | |
| 71. | 115-7184 | [2] | CLAMP | |
| 72. | 136-5748Y | [2] | VALVE GP-CONTROL | |
| 73. | 9S-7382 | [8] | BOLT-SOCKET HEAD(5/16-18X3.5-IN) | |
| 74. | 146-9042I | [1] | HOSE AS | |
| 75. | 2H-3934 | [1] | SEAL-O-RING | |
| 76. | 100-2790I | [1] | HOSE AS | |
| 77. | 111-6918I | [1] | HOSE AS | |
| 78. | 117-3247I | [1] | HOSE AS | |
| 79. | 137-4610I | [2] | HOSE AS | |
| 80. | 6V-0852 | [1] | CAP-DUST | |
| 81. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 82. | 6V-9830 | [1] | CAP(ORFS) | |
| 83. | 8J-1256 | [1] | CLIP | |
| | B | | USE AS REQUIRED |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
