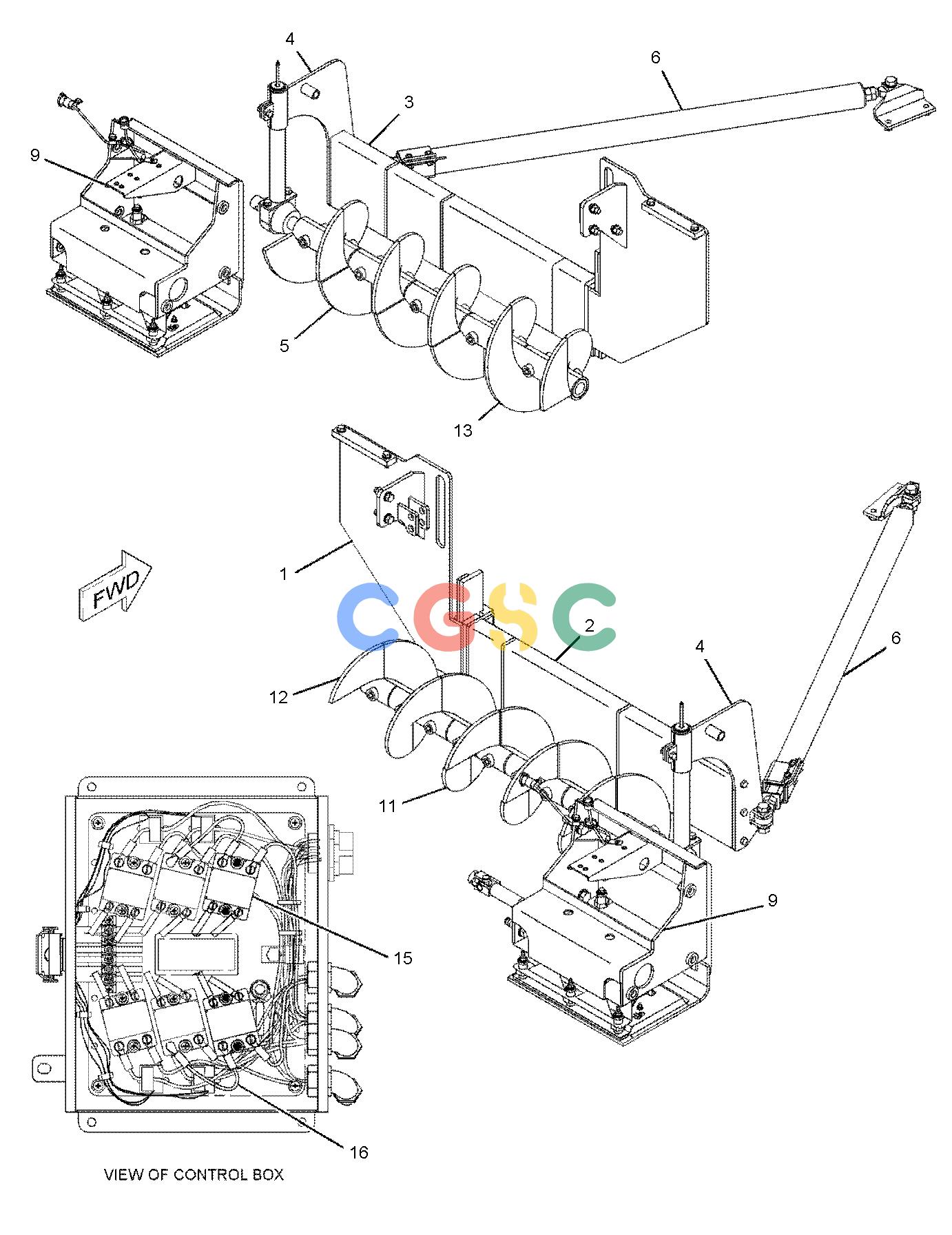

| 1. | 116-9510Y | [1] | EXTENSION GP-MAIN FRAME(6-IN) | |
| 2. | 106-9714Y | [6] | EXTENSION GP-MAIN FRAME(1-FT) | |
| 3. | 116-9509Y | [2] | BEARING GP-AUGER | |
| 5. | 5E-9809Y | [2] | EXTENSION GP-AUGER(1-FT, RH) | |
| 6. | 5E-9826Y | [1] | EXTENSION GP-AUGER(2-FT, RH) | |
| 7. | 5E-9808Y | [2] | EXTENSION GP-AUGER(1-FT, LH) | |
| 8. | 5E-9825Y | [1] | EXTENSION GP-AUGER(2-FT, LH) | |
| 10. | 169-5471Y | [2] | SUPPORT GP-FRAME | |
| 12. | 245-9083Y | [2] | EXTENSION GP-SCREED(ELECTRIC HEAT, 12-IN) | |
| 14. | 255-5011 | [2] | RELAY AS(24-VOLT)(SCREED CONTROL) | |
| 15. | 306-7455 | [2] | WIRE AS | |
| | | | |
| | 3S-2093F | [4] | STRAP-CABLE | |
| | 9U-3672F | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5677BD | | WIRE(18-GA, BLACK) | |
| | 5P-9799 | [1] | TUBE(HEAT SHRINK) | |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 246-3318F | [1] | TUBE AS | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
