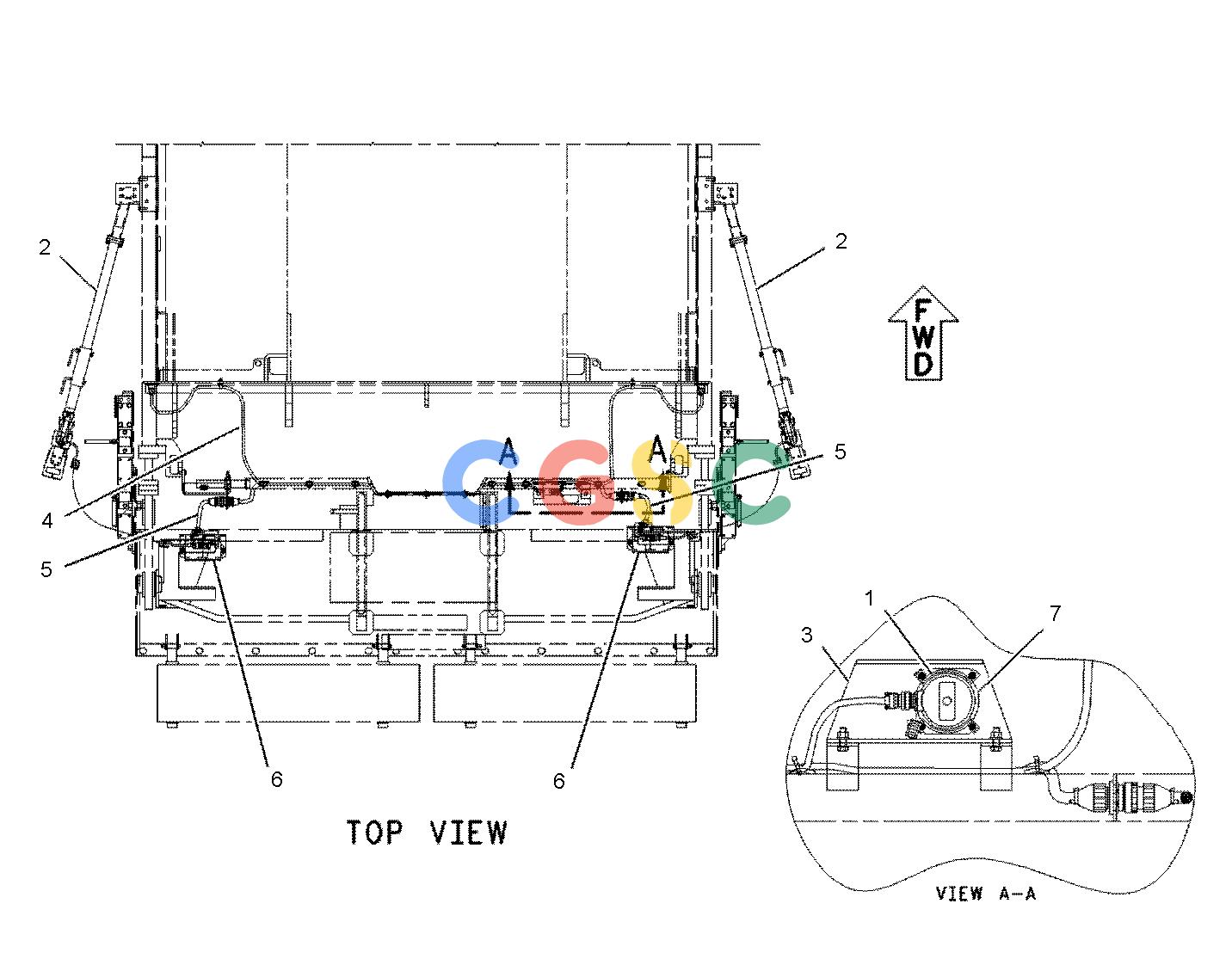

| 1. | 122-9836 | [2] | BRACKET-MOUNTING | |
| 2. | 112-4043Y | [2] | MOUNTING GP-CONTROL | |
| 3. | 135-3860Y | [1] | MOUNTING GP-CONTROL | |
| 4. | 203-6073 | [1] | HARNESS AS-CONTROL(GRADE, SLOPE) | |
| | 8N-1537 | [2] | LOCKWASHER | |
| | 8T-0065 | [1] | SEALANT-SILICONE | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(20-CM) | |
| | 3T-0204 | [2] | RECEPTACLE AS-CONNECTOR(20-PIN) | |
| | | | (EACH INCLUDES) |
| | 8N-1536 | [1] | NUT(1-5/8-18-THD) | |
| | 7K-1181 | [2] | STRAP-CABLE | |
| | 8N-1535 | [2] | BELL AS-END | |
| | 9X-4385 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| 5. | 203-6074 | [2] | HARNESS AS-SCREED(GRADE, SLOPE) | |
| | | | (EACH INCLUDES) |
| | 8T-0065 | [1] | SEALANT-SILICONE | |
| | 112-5929 | [1] | CAP-DUST | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(3-CM) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(30-CM) | |
| | 142-1401 | [2] | SCREW | |
| | 3T-0203 | [1] | PLUG AS-CONNECTOR(20-PIN) | |
| | 7K-1181 | [1] | STRAP-CABLE | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 8N-1535 | [1] | BELL AS-END | |
| | 9G-3695 | [6] | PLUG-SEAL | |
| 6. | 168-5031CY | [2] | CONTROL GP-GRADE & SLOPE | |
| 7. | 288-6319 | [1] | SENSOR-SLOPE | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
