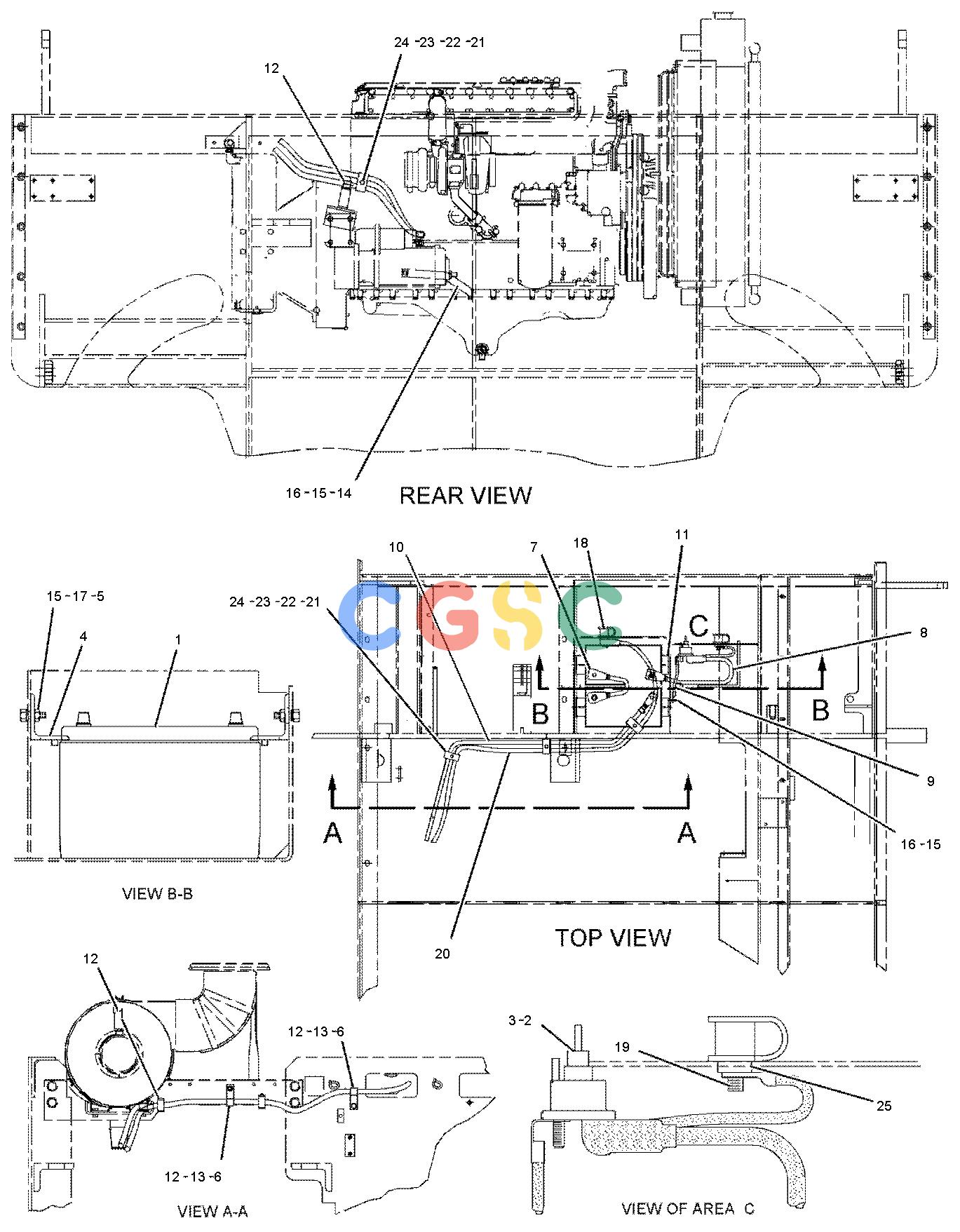

| 1. | 115-2422 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| 2. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 3. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY) | |
| 4. | 114-6442 | [4] | ANGLE AS | |
| | | | (EACH INCLUDES) |
| | 127-0103 | [1] | BAR | |
| 5. | 9B-7237 | [4] | BOLT(3/8-16X1.25-IN) | |
| 6. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 7. | 117-1838 | [1] | CABLE AS | |
| | 5P-0760E | | CABLE(0-GA, RED)(20-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| 8. | 114-6439 | [1] | CABLE AS | |
| | 5P-0746E | | CABLE(0-GA, BLACK)(40-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK) | |
| | 030-1707 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| 9. | 114-6437 | [2] | CABLE AS | |
| | | | (EACH INCLUDES) |
| | 5P-0746E | | CABLE(0-GA, BLACK)(19-CM) | |
| | 9X-0195 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| | 030-1707 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| 10. | 110-9675 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(183-CM) | |
| | 5P-0695E | | CONDUIT(171-CM) | |
| | 1S-2244 | [2] | BOOT | |
| | 1S-4915 | [2] | LINER(CONDUIT) | |
| | 3S-2093 | [1] | STRAP-CABLE | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [2] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [2] | NUT(5/16-18-THD) | |
| 11. | 3P-5414 | [1] | GROMMET | |
| 12. | 8S-0948 | [4] | CLIP | |
| 13. | 5P-8167 | [2] | BOLT(3/8-16X0.625-IN) | |
| 14. | 4M-7146 | [1] | STRAP AS-GROUND | |
| 15. | 6V-8801 | [6] | NUT(3/8-16-THD) | |
| 16. | 4D-1326 | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 17. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 18. | 106-0800 | [1] | CONNECTOR GP(REMOTE JUMP START, POSITIVE) | |
| 19. | 240-0231 | [1] | TERMINAL AS-BATTERY(REMOTE JUMP START, NEGATIVE) | |
| 20. | 234-2987 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(218-CM) | |
| | 5P-0695E | | CONDUIT(205-CM) | |
| | 8T-2225E | | TUBE-HEAT SHRINK(25.4-MM DIA)(16-CM) | |
| | 1S-4915 | [2] | LINER(CONDUIT) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 21. | 154-4883 | [8] | CLAMP-HALF | |
| 22. | 102-8706 | [4] | PLATE AS | |
| 23. | 102-8705 | [4] | PLATE(TOP) | |
| 24. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 25. | B | | COATING |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
