Pos.	Part No	Qty	Parts name
1.	236-2174Y	[1]	WIRING GP-POWER TRAIN(PROPEL OVERRIDE)
2.	232-6373	[1]	HARNESS AS-CONTROL(MAIN)(CONTROL)
	102-8802	[1]	KIT-RECEPTACLE(2-PIN)
	102-8803	[1]	KIT-RECEPTACLE(3-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	155-2255	[14]	KIT-CONNECTING PLUG(12-PIN)
	155-2265	[2]	KIT-CONNECTING PLUG(8-PIN)
	155-2260	[1]	KIT-CONNECTING PLUG(3-PIN)
	155-2270	[1]	KIT-CONNECTING PLUG(2-PIN)
			(EACH PLUG KIT INCLUDES PLUG KIT, WEDGE & INTERFACE SEAL)
3.	7X-7877BE		STRIP-EDGE
4.	232-6374	[1]	HARNESS AS-CONTROL(PROPEL)
	102-8802	[2]	KIT-RECEPTACLE(2-PIN)
	102-8805	[2]	KIT-RECEPTACLE(6-PIN)
	102-8806	[1]	KIT-RECEPTACLE(8-PIN)
	102-8801	[2]	KIT-RECEPTACLE(12-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	155-2270	[1]	KIT-CONNECTING PLUG(2-PIN)
	155-2274	[1]	KIT-CONNECTING PLUG(6-PIN)
			(EACH PLUG KIT INCLUDES PLUG KIT, WEDGE & INTERFACE SEAL)
5.	124-5928	[1]	HARNESS AS-CONTROL(CONVEYOR)
	155-2270	[18]	KIT-CONNECTING PLUG(2-PIN)
	155-2260	[1]	KIT-CONNECTING PLUG(3-PIN)
			(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
	102-8802	[6]	KIT-RECEPTACLE(2-PIN)
	102-8804	[1]	KIT-RECEPTACLE(4-PIN)
	102-8801	[3]	KIT-RECEPTACLE(12-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
6.	221-3420	[1]	PLUG AS-CODE(CONTROL)
	155-2274	[1]	KIT-CONNECTING PLUG(6-PIN)
			(KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
7.	232-6371Y	[1]	PANEL GP-INSTRUMENT
8.	154-9600Y	[1]	BOX GP-CONTROL
9.	121-0386	[1]	MOUNT
10.	4V-6981	[10]	SCREW-BUTTON HEAD(1/4-20X0.75-IN)
12.	111-7382	[1]	PLATE
13.	170-1562	[1]	PLATE
14.	164-7359Y	[1]	COVER GP-WIRING HARNESS
15.	170-8691	[1]	BRACKET AS
	7X-0265	[8]	BOLT(1/4-20X2.75-IN)
16.	8C-5607	[16]	MOUNT-ISOLATION
17.	8C-5608	[8]	SPACER(6.5X9.5X25.4-MM THK)
18.	217-4546	[1]	CONTROL GP-CONVEYOR ELECTRONIC
19.	230-2442	[1]	CONTROL GP-PROPEL ELECTRONIC
20.	4L-6454	[11]	BOLT(3/8-16X1-IN)
21.	8T-4896	[10]	WASHER-HARD(10.2X18.5X2.5-MM THK)
22.	6V-8801	[10]	NUT(3/8-16-THD)
24.	8T-4224	[15]	WASHER-HARD(8.8X16X2-MM THK)
25.	5S-7349	[4]	BOLT(1/4-20X0.5-IN)
26.	8T-4205	[19]	WASHER-HARD(7.2X14.5X2-MM THK)
27.	9X-1386BE		SLEEVE
28.	9X-6165	[8]	WASHER(6.5X22X2.5-MM THK)
29.	6V-8185	[10]	NUT(1/4-20-THD)
30.	117-2964	[8]	SPACER
31.	9G-0011	[1]	SWITCH AS-TOGGLE(PROPEL DISPLAY MODE)
31A.	9G-0011	[1]	SWITCH AS-TOGGLE(CONVEYOR DISPLAY MODE)
			(EACH SWITCH AS INCLUDES)
	3L-8187	[3]	LOCKWASHER
	6T-3631	[2]	NUT-HEX(15/32-32-THD)
	6T-3632	[1]	LOCKWASHER
	6T-3633	[1]	RING-LOCKING
	6V-8374	[3]	SCREW-MACHINE(6-32X0.25-IN)
32.	6T-1767	[1]	SWITCH GP-TOGGLE(PROPEL ECM MODE)
32A.	6T-1767	[1]	SWITCH GP-TOGGLE(CONVEYOR ECM MODE)
			(EACH SWITCH GP INCLUDES)
	3L-8187	[6]	LOCKWASHER
	6T-3631	[2]	NUT-HEX(15/32-32-THD)
	6T-3632	[1]	LOCKWASHER
	6T-3633	[1]	RING-LOCKING
	6V-8374	[6]	SCREW-MACHINE(6-32X0.25-IN)
33.	105-8035	[1]	WIRE AS
34.	119-3344	[1]	WIRE AS
35.	6V-2480	[4]	SCREW(4-40X0.5-IN)
36.	6B-4540	[4]	NUT(4-40-THD)
37.	9B-1117	[4]	LOCKWASHER
38.	4P-8134	[8]	CLIP(LADDER)
39.	4M-6425	[6]	BOLT(5/16-18X1-IN)
40.	6V-8189	[6]	NUT(5/16-18-THD)
41.	8T-4138M	[12]	BOLT(M6X1X20-MM)
42.	4P-7581	[4]	CLIP(LADDER)
43.	4B-2047	[4]	NUT(10-24-THD)
44.	3B-4502	[4]	LOCKWASHER
45.	8T-8737	[2]	PLUG-SEAL
46.	155-2261	[1]	WEDGE-PLUG LOCK(2-PIN)
47.	8T-8908	[2]	BOLT(1/4-20X1-IN)
48.	4S-4455	[5]	CLIP
49.	141-0693	[2]	BRACKET AS
			(EACH INCLUDES)
	7T-1099	[2]	LINK
50.	132-5789	[1]	CLIP
51.	122-9309Y	[1]	BUFFER GP-SENSOR(5000-HZ PWM)(CONVEYOR SPEED, RH)
51A.	122-9309Y	[1]	BUFFER GP-SENSOR(5000-HZ PWM)(CONVEYOR SPEED, LH)
51B.	122-9309Y	[1]	BUFFER GP-SENSOR(5000-HZ PWM)(PROPEL SPEED)
51C.	122-9309Y	[1]	BUFFER GP-SENSOR(5000-HZ PWM)(PROPEL FORWARD, REVERSE)
52.	102-8802	[1]	KIT-RECEPTACLE(2-PIN)
			(KIT INCLUDES RECEPTACLE AS & WEDGE)
53.	3E-3365	[1]	WEDGE-RECEPTACLE LOCK(2-PIN)
54.	186-3735	[2]	PIN-CONNECTOR(16-GA TO 18-GA)
55.	119-3263	[1]	WIRE AS
56.	119-3264	[2]	WIRE AS
57.	119-3265	[1]	WIRE AS
58.	119-3267	[1]	WIRE AS
59.	119-3268	[1]	WIRE AS
60.	124-5929	[1]	PLATE-MOUNTING
61.	3E-5239	[1]	RELAY AS(24-VOLT)(HYDRAULIC OIL LEVEL)
62.	3E-9865	[1]	LOCKNUT(1/4-20-THD)
63.	4M-5281	[1]	BOLT(1/4-20X0.75-IN)
64.	3S-2093	[19]	STRAP-CABLE
65.	7K-1181	[51]	STRAP-CABLE
67.	155-2651Y	[1]	DISTRIBUTOR GP-ELECTRONIC
68.	4M-0061	[5]	BOLT(5/16-18X0.75-IN)
69.	5P-4115	[2]	WASHER-HARD(7.2X19X2-MM THK)
70.	1H-3338	[2]	LOCKWASHER(EXTERNAL TOOTH)
71.	5P-1075	[3]	WASHER-HARD(10.2X22.5X3-MM THK)
72.	9B-7237	[1]	BOLT(3/8-16X1.25-IN)
73.	155-2270	[1]	KIT-CONNECTING PLUG(2-PIN)
			(KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
74.	8T-4222	[1]	WASHER-PLATED(11X32X2.5-MM THK)
	B		USE AS REQUIRED
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

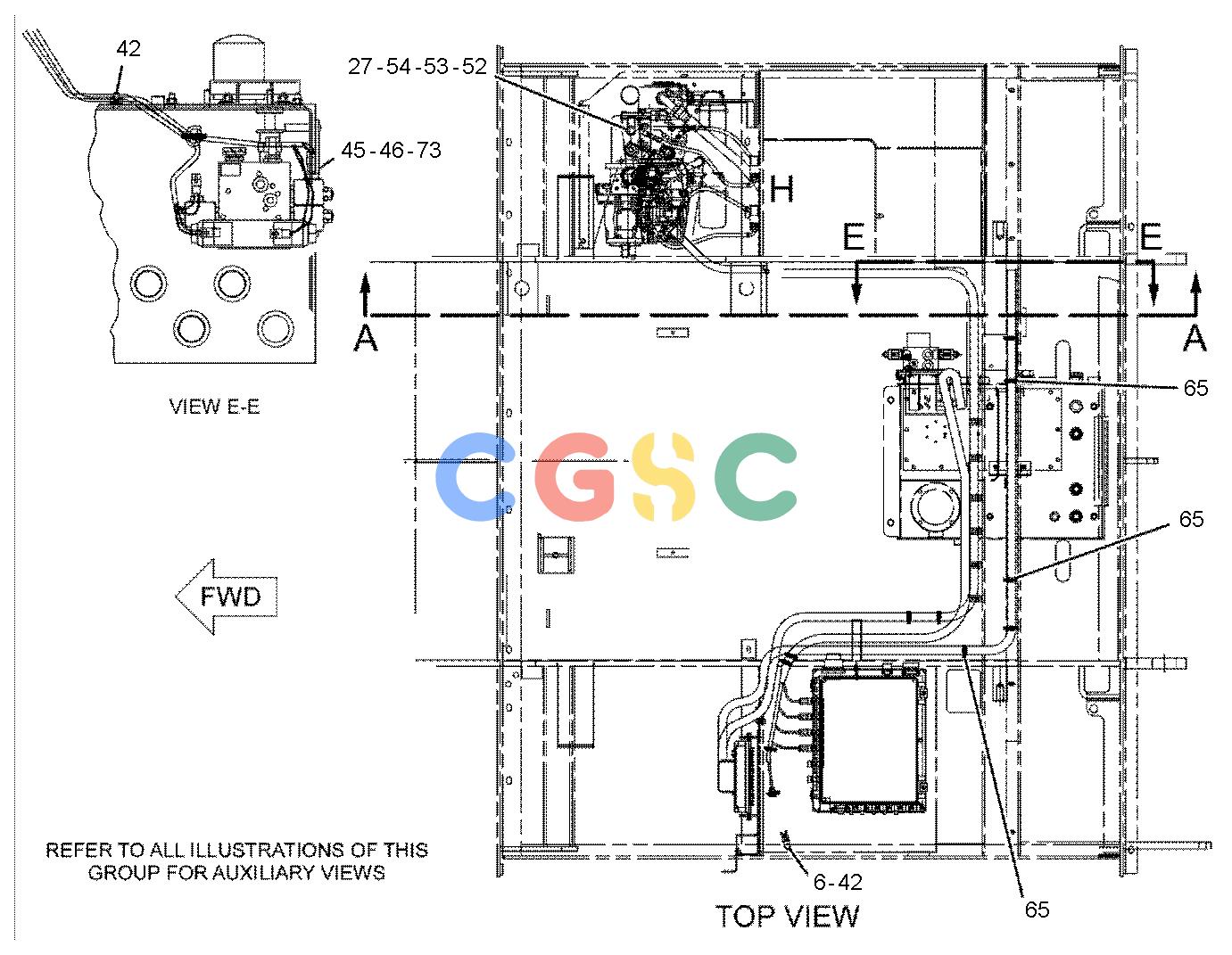

卡特零件查询（AP-1055B） 232-6370: INSTALLATION GP-CONTROLS
