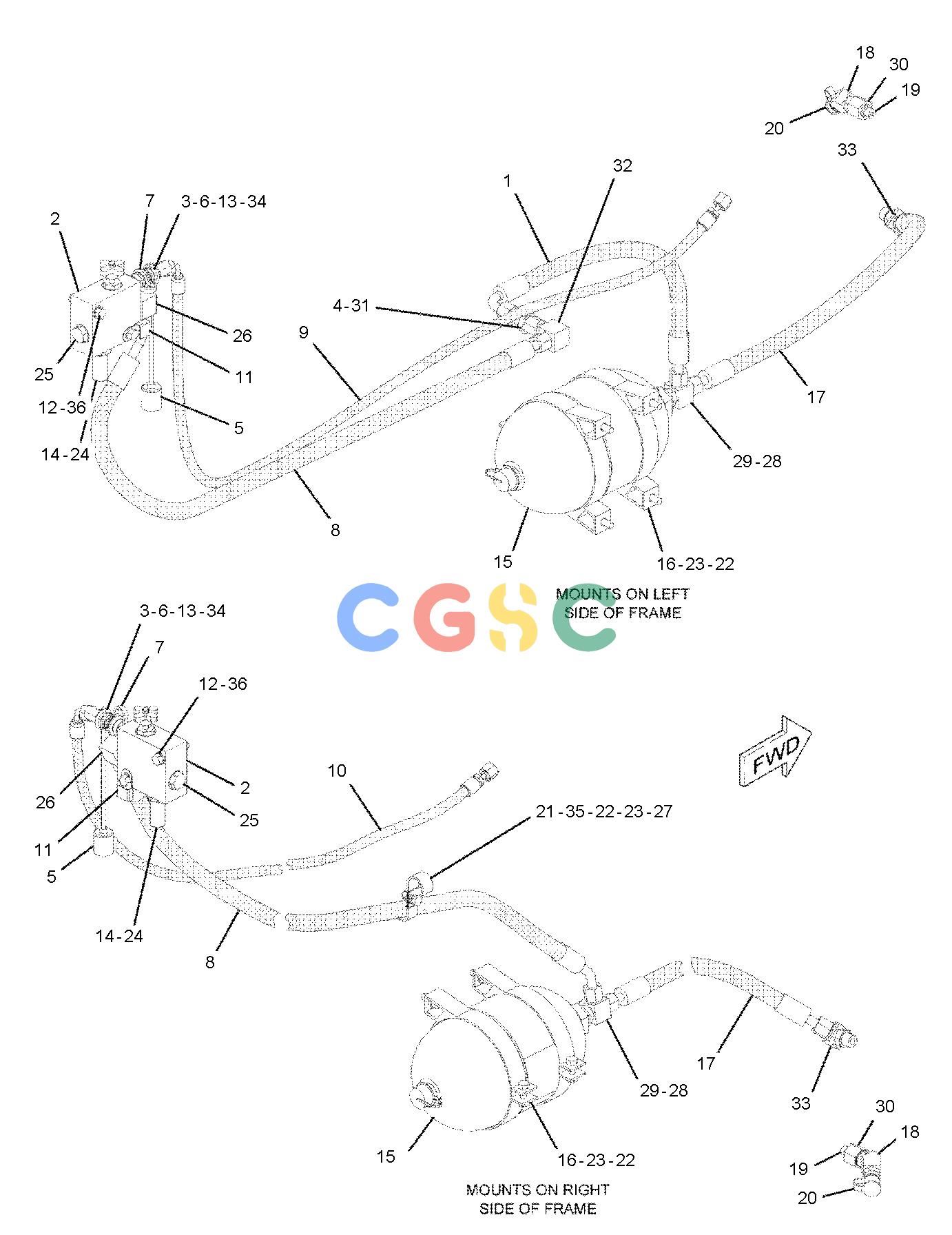

| 1. | 185-1919I | [1] | HOSE AS | |
| 2. | 215-3511CY | [2] | VALVE GP-ACCUMULATOR CHARGING | |
| 3. | 6V-3990 | [2] | COUPLER AS | |
| | | | (EACH INCLUDES) |
| | 5P-8998 | [1] | FITTING | |
| | 6V-4144 | [1] | COUPLER AS-QUICK CONNECT(FLUID SAMPLING) | |
| 4. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 5. | 5R-6302 | [2] | CAP-DUST | |
| 6. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 7. | 6V-0852 | [2] | CAP-DUST | |
| 8. | 218-2856I | [2] | HOSE AS | |
| 9. | 190-0185I | [1] | HOSE AS | |
| 10. | 154-4165I | [1] | HOSE AS | |
| 11. | 116-0118 | [2] | CLIP | |
| 12. | 8T-9377C | [4] | BOLT(3/8-16X2.25-IN) | |
| 13. | 4J-5477 | [2] | SEAL-O-RING | |
| 14. | 3J-1907 | [2] | SEAL-O-RING | |
| 15. | 209-2659Y | [2] | ACCUMULATOR GP-HYDRAULIC(CHARGED) | |
| 16. | 142-3061 | [4] | CLAMP AS | |
| 17. | 118-4637I | [2] | HOSE AS | |
| 18. | 165-4931 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 19. | 148-4415 | [2] | COUPLING | |
| 20. | 7X-5308 | [2] | CAP-DUST | |
| 21. | 7C-4354 | [1] | CLIP | |
| 22. | 8T-4896 | [10] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 23. | 5S-7379 | [9] | BOLT(3/8-16X0.875-IN) | |
| 24. | 175-3244 | [2] | SWITCH AS-PRESSURE(TRACK TENSION) | |
| 25. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 26. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 27. | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 28. | 155-7321 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 29. | 148-8428 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8782 | [1] | TEE | |
| 30. | 150-4047 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8T-2353 | [1] | ADAPTER | |
| 31. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 32. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 33. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 34. | 8T-6776 | [2] | ADAPTER | |
| 35. | 8S-0948 | [1] | CLIP | |
| 36. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
