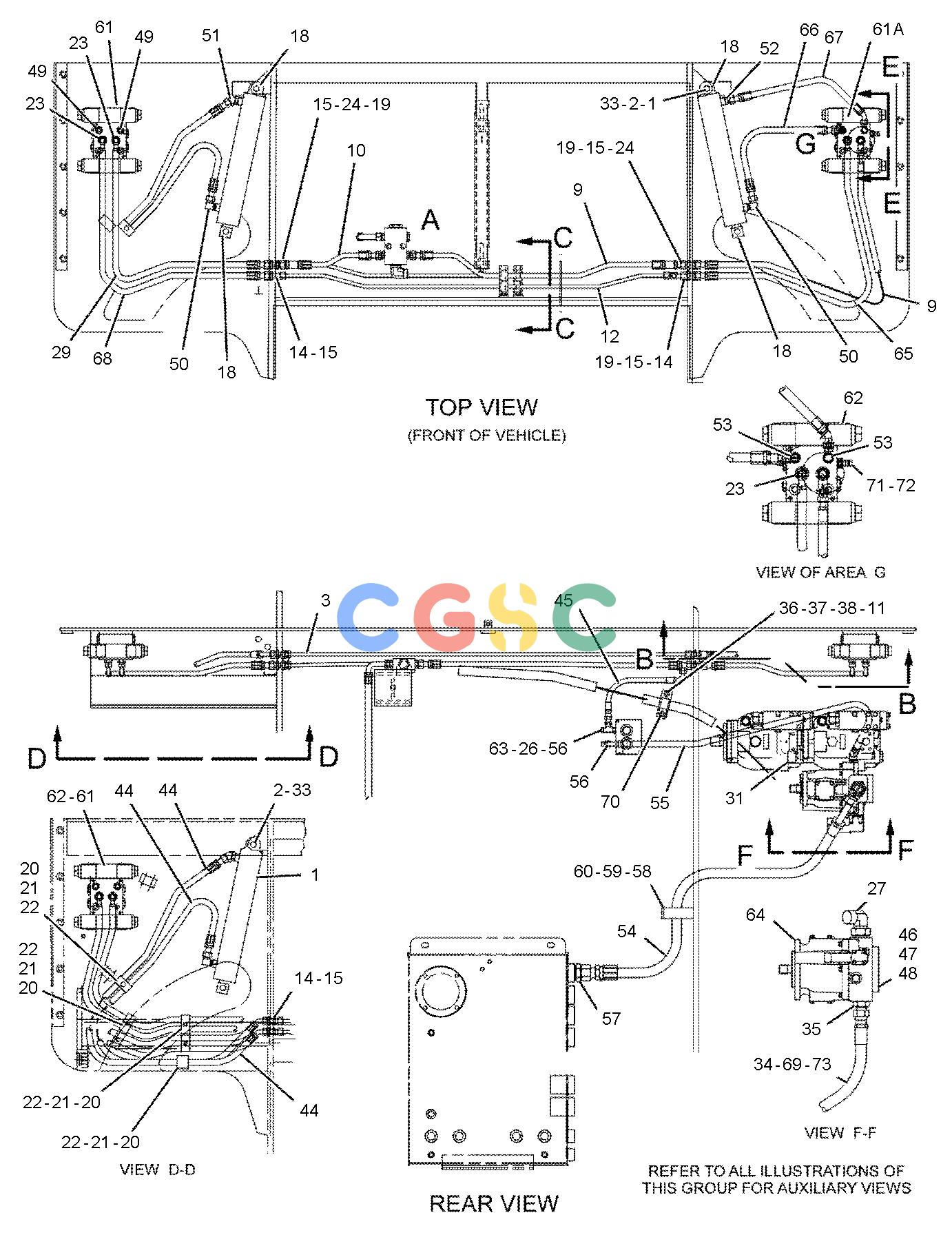

Pos.	Part No	Qty	Parts name
1.	135-0220Y	[2]	CYLINDER GP-HYDRAULIC(HOPPER)
2.	103-1501	[2]	PIN AS
3.	110-4555	[2]	TUBE AS
4.	7V-5626	[2]	CLAMP
5.	7V-5628	[1]	PLATE
6.	4M-5282	[2]	BOLT(1/4-20X1.5-IN)
7.	4L-6454	[2]	BOLT(3/8-16X1-IN)
8.	8T-4896	[2]	WASHER-HARD(10.2X18.5X2.5-MM THK)
9.	2U-9764I	[2]	HOSE AS
10.	154-2811I	[1]	HOSE AS
11.	8T-4205	[4]	WASHER-HARD(7.2X14.5X2-MM THK)
12.	110-7751	[1]	TUBE AS
13.	148-8366	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
14.	149-5452	[4]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8994	[1]	UNION(STRAIGHT)
15.	6V-9168	[8]	NUT(11/16-16-THD)
16.	7R-9144	[1]	MANIFOLD-RETURN
17.	5P-2675	[2]	BOLT(1/4-20X1.75-IN)
18.	3B-8489	[4]	FITTING-GREASE(1/8-27 PTF)
19.	148-8433	[3]	TEE AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-9836	[1]	TEE-SWIVEL
20.	4V-0612	[7]	PLATE
21.	4V-0611	[14]	CLAMP
22.	7X-0440	[7]	BOLT(5/16-18X1.75-IN)
23.	148-8318	[5]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
24.	213-2265	[2]	UNION AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	150-0128	[1]	UNION
25.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
26.	148-8415	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
27.	204-9815	[1]	ELBOW AS
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-1682	[1]	ELBOW
28.	7R-7891I	[2]	HOSE AS
29.	146-9042I	[1]	HOSE AS
30.	4S-4455	[1]	CLIP
31.	148-8358	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
32.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
33.	8M-3267	[2]	SCREW-HEX SOCKET(3/8-16X0.75-IN)
34.	268-6725I	[1]	HOSE AS
35.	148-8339	[1]	CONNECTOR AS
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
36.	7R-7940	[2]	CLAMP
37.	7R-7951	[1]	PLATE
38.	7X-0264	[2]	BOLT(1/4-20X2.5-IN)
39.	2T-1398	[6]	CLAMP
40.	086-8656	[7]	NUT
41.	2T-1394	[3]	PLATE-COVER
42.	7X-2501	[3]	BOLT(1/4-20X1.25-IN)
43.	111-7380	[2]	BRACKET AS
44.	101-7641I	[2]	HOSE AS
45.	111-4661I	[1]	HOSE AS
46.	8I-0836Y	[1]	PUMP GP-PISTON(AUXILIARY)
47.	8T-4223	[2]	WASHER-HARD(13.5X25.5X3-MM THK)
48.	8T-8917	[2]	BOLT(1/2-13X1.25-IN)
49.	148-8407	[2]	PLUG AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	9S-4181	[1]	PLUG(1-5/16-12-THD)
50.	205-7200	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	108-2144	[1]	ELBOW
51.	148-8353	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9001	[1]	ELBOW
52.	148-8336	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
53.	148-8435	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
54.	227-5089I	[1]	HOSE AS
55.	111-4457I	[1]	HOSE AS
56.	148-8428	[2]	TEE AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	6V-8782	[1]	TEE
57.	156-4283	[1]	CONNECTOR AS
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-7926	[1]	CONNECTOR
58.	6W-3110	[1]	PLATE
59.	7X-0318	[2]	BOLT(7/16-14X4-IN)
60.	115-7184	[2]	CLAMP
61.	191-6578Y	[1]	VALVE GP-CONTROL(LEFT GRADE, TRUCK HITCH)
61A.	191-6578Y	[1]	VALVE GP-CONTROL(RIGHT GRADE, HOPPER)
62.	2S-5818	[8]	BOLT-12 POINT HEAD
63.	6V-9830	[1]	CAP(ORFS)
64.	6V-1320	[1]	SEAL-O-RING
65.	100-2790I	[1]	HOSE AS
66.	111-6918I	[1]	HOSE AS
67.	117-3247I	[1]	HOSE AS
68.	137-4610I	[1]	HOSE AS
69.	160-2247BG		SLEEVE-ABRASION
70.	8J-1256	[1]	CLIP
71.	6V-0852	[1]	CAP-DUST
72.	110-6349	[1]	FITTING AS(QUICK DISCONNECT)
73.	3S-2093	[2]	STRAP-CABLE
74.	148-8307	[1]	ADAPTER AS
	3J-1907	[1]	SEAL-O-RING
	5P-8874	[1]	ADAPTER
75.	171-6718	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	105-7704	[1]	TEE
76.	6V-5320	[1]	CONNECTOR
77.	207-4843Y	[1]	ACCUMULATOR GP-HYDRAULIC(HOPPER)
	B		USE AS REQUIRED
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

卡特零件查询（AP-1055B） 227-5087: LINES GP-HOPPER
