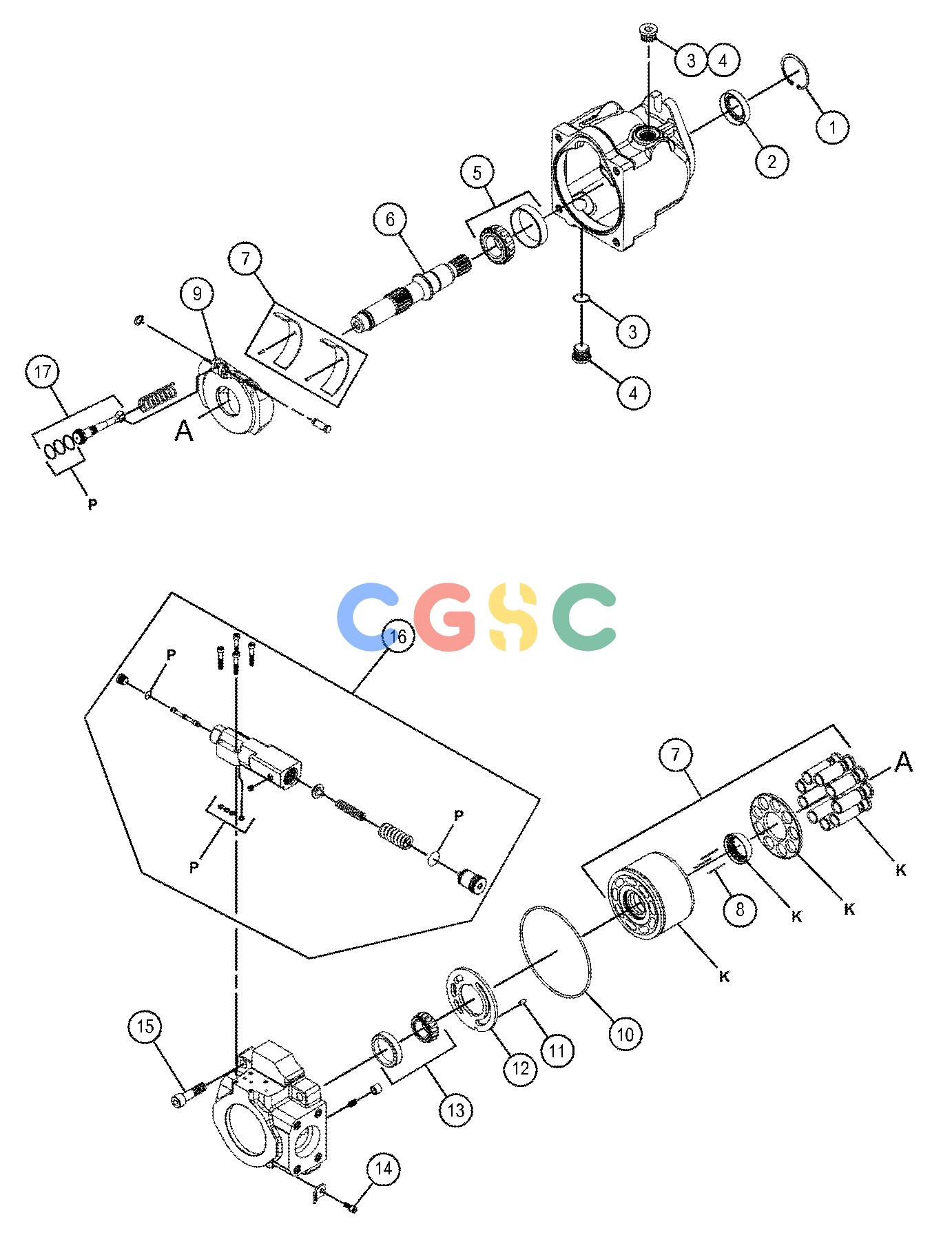

| 1. | 6J-7855 | [1] | RING-RETAINING | |
| 2. | 317-5891 | [1] | SEAL-LIP TYPE | |
| 3. | 2M-9780 | [2] | SEAL-O-RING | |
| 4. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 5. | 232-3587 | [1] | KIT-BEARING | |
| | | | (INCLUDES BEARING) |
| 6. | 351-6039 | [1] | SHAFT-PUMP(15-TEETH) | |
| 7. | 498-1507 | [1] | KIT-BEARING | |
| | | | (INCLUDES PINS & BEARINGS) |
| 8. | 165-9762J | [3] | PIN | |
| 9. | 498-1508 | [1] | SWASHPLATE | |
| 10. | 351-6018 | [1] | SEAL-O-RING | |
| 11. | 8J-8308 | [1] | PIN-ROLL | |
| 12. | 498-1506 | [1] | PLATE-VALVE | |
| 13. | 232-3586 | [1] | KIT-BEARING | |
| | | | (INCLUDES BEARING) |
| 14. | 149-4311M | [1] | BOLT-SOCKET HEAD(M6X1X16-MM) | |
| 15. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 16. | 260-3148S | [1] | KIT-CONTROL | |
| | | | (INCLUDES ADJUSTING PLUG,O-RINGS,OUTER SPRING,INNER SPRING,SPRING GUIDE,SCREWS,SEAL RINGS,CONTROL SPOOL & PLUG) |
| 17. | 498-1509 | [1] | ROD-PISTON | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 498-1510J | [1] | KIT-CYLINDER | |
| | | | (ALSO INCLUDES PARTS MARKED "K" IN GRAPHICS) |
| | 307-3043S | [1] | KIT-SEAL | |
| | | | (INCLUDES PARTS MARKED "P" IN GRAPHICS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
