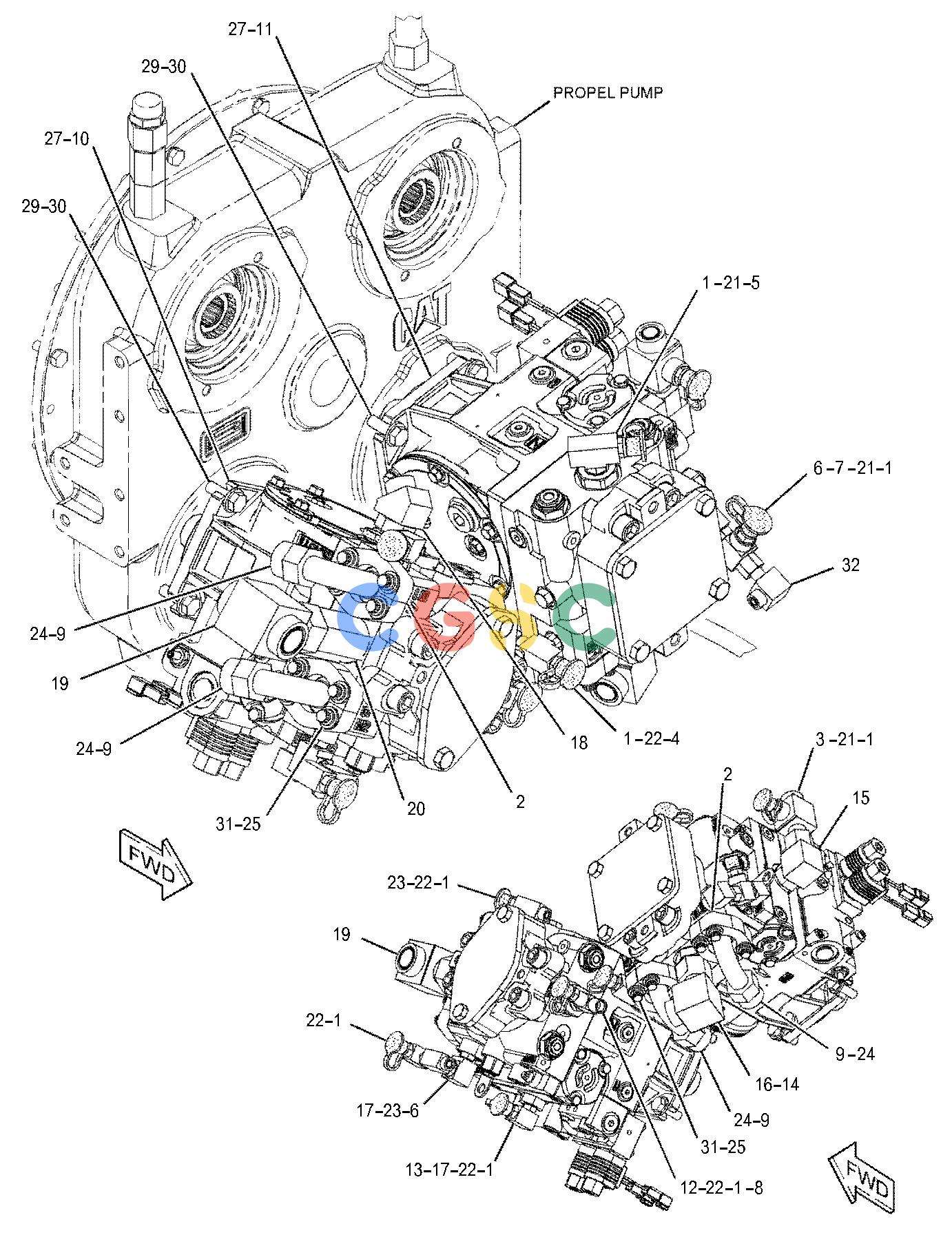

卡特零件查询（AP-1000E） 341-1041: PUMP & MTG GP-PROPEL

作者：广数供应链运营团队

浏览数：

时间：2025-01-24 23:53:49

Pos.	Part No	Qty	Parts name
1.	6V-0852	[8]	CAP-DUST
2.	124-4288	[8]	FLANGE-SPLIT
3.	148-8430	[1]	TEE AS
	6V-9746	[1]	SEAL-O-RING
	7X-0873	[1]	TEE
4.	148-8443	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	7X-2459	[1]	ADAPTER-TEE
5.	150-3058	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	8C-8431	[1]	TEE
6.	164-6874	[1]	FITTING AS-ELBOW(QUICK DISCONNECT, MALE)
	3J-1907	[1]	SEAL-O-RING
	085-7356	[1]	FITTING
7.	168-1968	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	126-6872	[1]	TEE
8.	171-6718	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	105-7704	[1]	TEE
9.	210-2041	[4]	FITTING AS
			(EACH INCLUDES)
	5K-9090	[1]	SEAL-O-RING
	7X-9733	[1]	FITTING
10.	339-3533Y	[1]	PUMP GP-PISTON(PROPEL, RH)
11.	339-3534Y	[1]	PUMP GP-PISTON(PROPEL, LH)
12.	148-8306	[1]	ADAPTER AS
	5P-5777	[1]	ADAPTER-O-RING
	7M-8485	[1]	SEAL-O-RING
13.	148-8309	[1]	ADAPTER AS
	2P-8421	[1]	ADAPTER-O-RING
	3D-2824	[1]	SEAL-O-RING
14.	148-8335	[1]	CONNECTOR AS
	5K-9090	[1]	SEAL-O-RING
	6V-8635	[1]	CONNECTOR
	7M-8485	[1]	SEAL-O-RING
15.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
16.	148-8352	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	6V-9854	[1]	ELBOW(SWIVEL)
17.	150-3065	[3]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-0484	[1]	ELBOW
18.	153-6237	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9004	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
19.	153-6264	[1]	TEE GP
	6V-8400	[2]	SEAL-O-RING
	9X-6653	[1]	TEE-SWIVEL
20.	371-7182	[1]	CONNECTOR AS
	6V-8400	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	161-8021	[1]	CONNECTOR(O-RING)
21.	164-5567	[4]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
22.	187-3547	[4]	COUPLER AS-QUICK DISCONNECT
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
23.	315-9853	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	201-5502	[1]	TEE
24.	4J-0520	[4]	SEAL-O-RING
25.	5P-7972	[16]	BOLT-12 POINT HEAD(7/16-14X1.75-IN)
27.	7J-6285	[2]	SEAL-O-RING
29.	8T-4223	[8]	WASHER-HARD(13.5X25.5X3-MM THK)
30.	8T-4956M	[8]	BOLT(M12X1.75X35-MM)
31.	8T-5360	[16]	WASHER(12X22.5X2.5-MM THK)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
