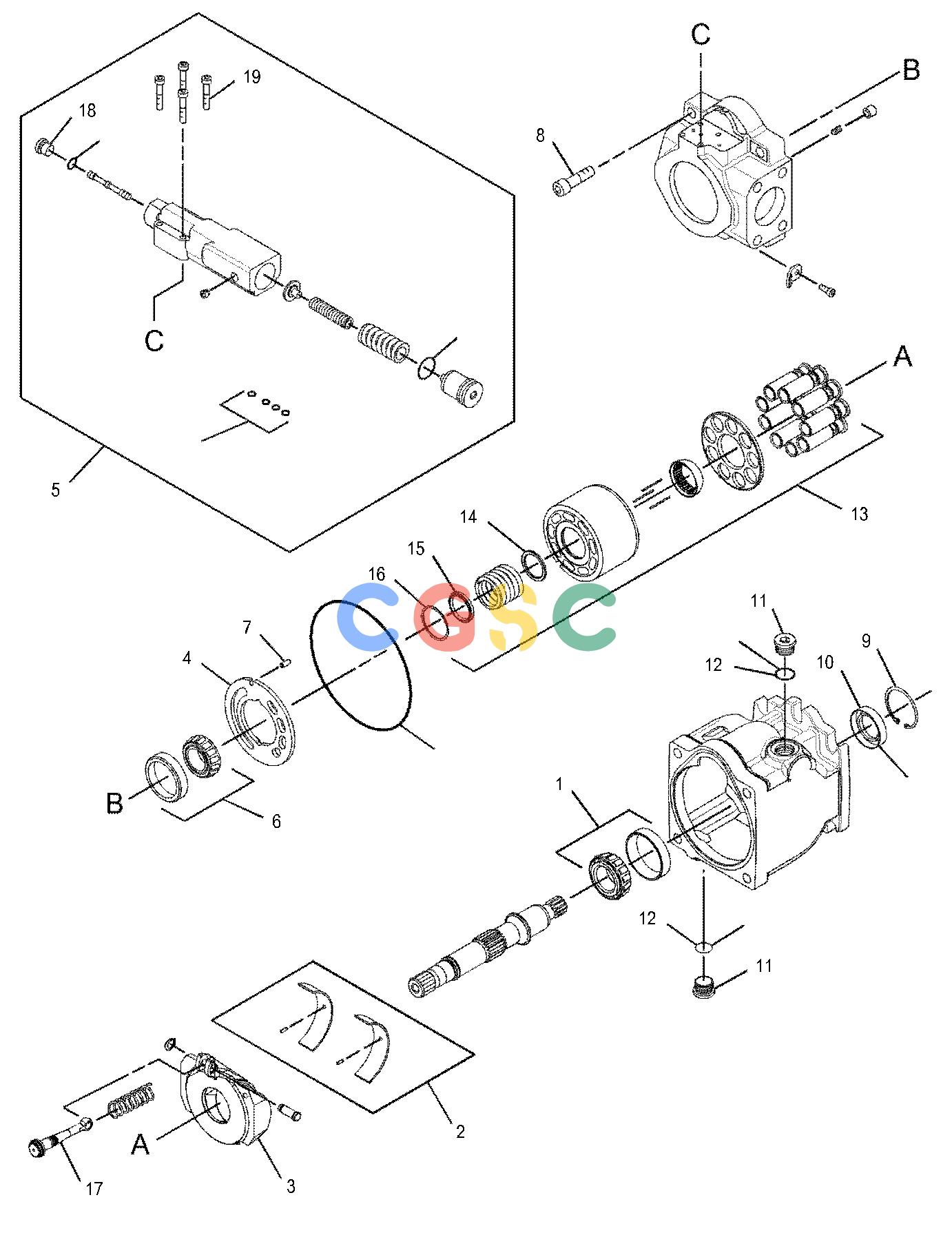

| 1. | 232-3587 | [1] | KIT-BEARING(FRONT) | |
| | | | (INCLUDES BEARING CUP & BEARING CONE) |
| 2. | 260-3145 | [1] | KIT-SWASHPLATE(AUXILIARY PUMP) | |
| | | | (INCLUDES PINS & BEARINGS) |
| 3. | 260-3146 | [1] | SWASHPLATE | |
| 4. | 260-6873 | [1] | PLATE-VALVE | |
| 5. | 260-3148 | [1] | KIT-CONTROL(AUXILIARY PUMP) | |
| | | | (INCLUDES PLUGS, O-RINGS, SPRINGS, SPRING GUIDE, SCREWS, SEAL RINGS & CONTROL SPOOL) |
| 6. | 232-3586 | [1] | KIT-BEARING(REAR) | |
| | | | (INCLUDES BEARING CUP & BEARING CONE) |
| 7. | 231-7260 | [1] | PIN-SLOTTED | |
| 8. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 9. | 6J-7855 | [1] | RING-RETAINING | |
| 10. | 317-5891 | [1] | SEAL-LIP TYPE | |
| 11. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 12. | 2M-9780 | [2] | SEAL-O-RING | |
| 13. | 260-3149 | [1] | KIT-CYLINDER(AUXILIARY PUMP) | |
| | | | (INCLUDES PISTON AS, SLIPPER RETAINER, GUIDE, PINS, CYLINDER BLOCK, SPRING SEATS, SPRING & RETAINING RING) |
| 14. | 7X-5472 | [1] | WASHER(31.2X40.3X2.7-MM THK) | |
| 15. | 7X-5470 | [1] | WASHER-SPECIAL | |
| 16. | 7X-5469 | [1] | RING-RETAINING | |
| 17. | 359-5232 | [1] | ROD-PISTON | |
| 18. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 19. | 9X-6615M | [4] | BOLT(M5X0.8X30-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 307-3043 | [1] | KIT-SEAL(AUXILIARY PUMP) | |
| | | | (INCLUDES PLUG, SEAL RINGS, O-RING SEALS & PARTS MARKED J IN THE GRAPHIC) |
| | M | | METRIC PART |
