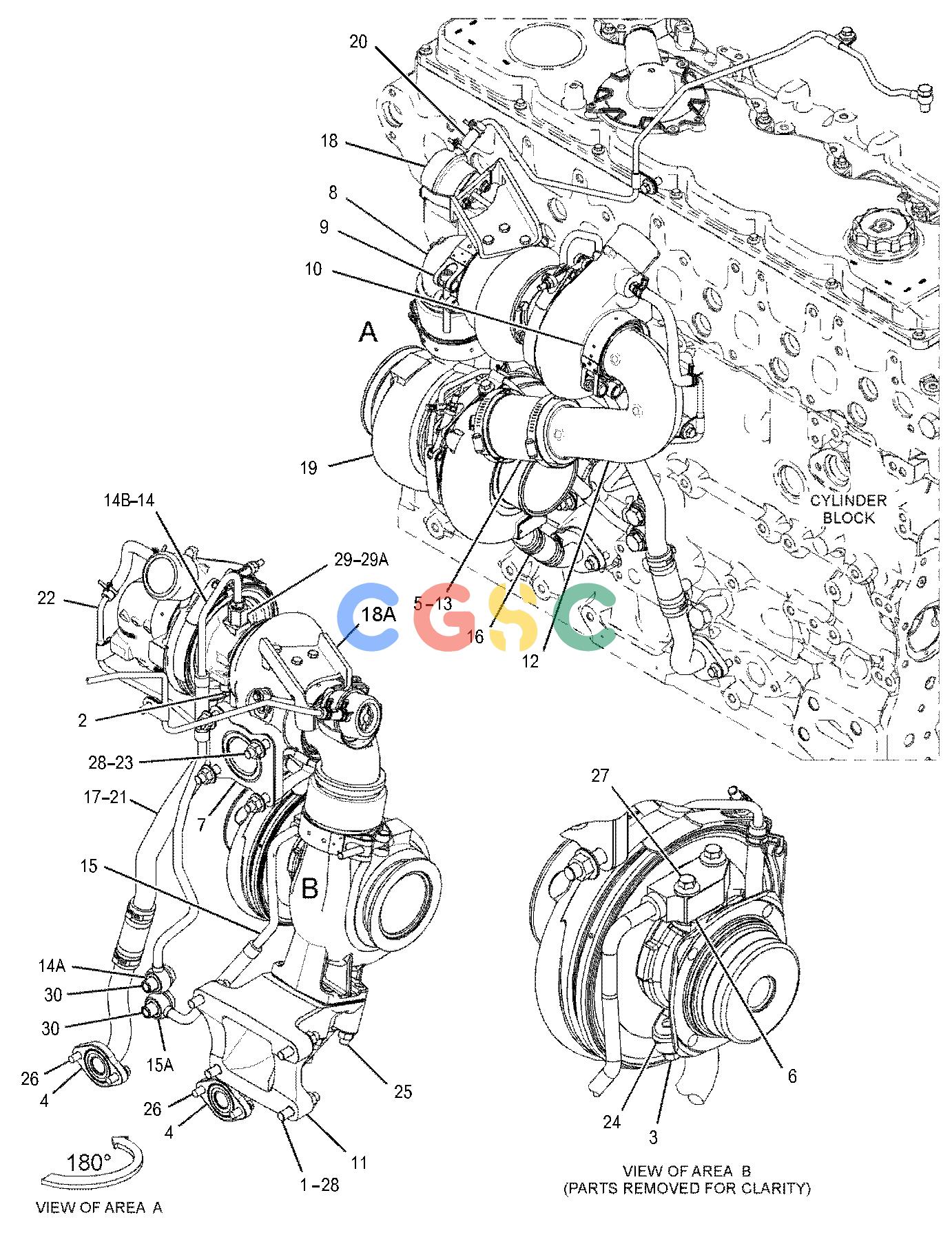

| 1. | 101-5115M | [4] | STUD(M10X1.5X40-MM) | |
| 2. | 106-8916M | [2] | BOLT(M6X16-MM) | |
| 3. | 124-3815M | [6] | BOLT(M8X1.25X16-MM) | |
| 4. | 278-0017 | [2] | GASKET | |
| 5. | 317-9229 | [2] | CLAMP-HOSE | |
| 6. | 197-8418 | [1] | GASKET | |
| 7. | 329-3723 | [1] | GASKET | |
| 8. | 342-6433 | [1] | DUCT | |
| 9. | 343-5908 | [2] | CLAMP-V BAND | |
| 10. | 343-5910 | [1] | CLAMP-V BAND | |
| 11. | 350-8541 | [1] | BRACKET | |
| 12. | 356-2122 | [1] | DUCT(COMPRESSOR) | |
| 13. | 356-5345 | [1] | HOSE | |
| 14. | 450-8002C | [1] | LINE AS(SUPPLY, HIGH PRESSURE TURBO) | |
| 14A. | 3P-0647 | [2] | SEAL-O-RING | |
| 14B. | 9N-1756 | [1] | SEAL-O-RING | |
| 15. | 450-8003C | [1] | LINES GP-TURBOCHARGER OIL(SUPPLY, LOW PRESSURE TURBO) | |
| 15A. | 3P-0647 | [2] | SEAL-O-RING | |
| 16. | 432-2374 | [1] | LINE AS(DRAIN, LOW PRESSURE TURBO) | |
| 17. | 357-0617 | [1] | GASKET | |
| 18. | 443-0317 | [1] | TURBOCHARGER AS | |
| 18A. | 508-1306 | [1] | ACTUATOR AS | |
| 19. | 359-0128 | [1] | TURBOCHARGER | |
| 20. | 360-1965Y | [1] | LINES GP-TURBOCHARGER AIR | |
| 21. | 432-2376 | [1] | LINE AS(DRAIN, HIGH PRESSURE TURBO) | |
| 22. | 365-9909Y | [1] | LINES GP-TURBOCHARGER AIR(EXHAUST BALANCE) | |
| 23. | 103-1912M | [4] | STUD(M10X1.5X30-MM) | |
| 24. | 197-8419 | [1] | GASKET(TURBOCHARGER) | |
| 25. | 348-4636 | [4] | STUD | |
| 26. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 27. | 6I-0254M | [2] | BOLT(M8X1.25X30-MM) | |
| 28. | 6I-0563M | [12] | NUT(M10X1.5-THD) | |
| 29. | 450-8004 | [1] | ADAPTER AS | |
| 29A. | 033-5879 | [1] | SEAL-O-RING | |
| 30. | 451-0548 | [2] | BOLT | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
