Pos.	Part No	Qty	Parts name
1.	4V-6981	[10]	SCREW-BUTTON HEAD(1/4-20X0.75-IN)
2.	164-7359Y	[1]	COVER GP-WIRING HARNESS
3.	130-9157	[1]	PLATE
4.	153-0451	[1]	PLATE
5.	8C-5607	[16]	MOUNT-ISOLATION
6.	8C-5608	[8]	SPACER(6.5X9.5X25.4-MM THK)
7.	117-2964	[8]	SPACER
8.	9G-0011	[1]	SWITCH AS-TOGGLE(FEEDER-CONTROL)
9.	9G-0011	[1]	SWITCH AS-TOGGLE(FEEDER-DISPLAY)
			(EACH SWITCH GP INCLUDES)
	3L-8187	[3]	LOCKWASHER(3.7X7.24X.48MM THK)
	6T-3631	[2]	NUT-HEX(15/32-32-THD)
	6T-3632	[1]	LOCKWASHER(11.96X15.08X.53MM THK)
	6T-3633	[1]	RING-LOCKING
	6V-8374	[3]	SCREW-MACHINE(6-32X0.25-IN)
10.	105-8035	[1]	WIRE AS
11.	141-0693	[2]	BRACKET AS
12.	121-7749	[1]	BRACKET AS
	7X-0264	[4]	BOLT(1/4-20X2.5-IN)
13.	172-6734	[1]	HARNESS AS
	102-8802	[1]	KIT-RECEPTACLE(2-PIN)
	102-8803	[1]	KIT-RECEPTACLE(3-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	155-2255	[16]	KIT-CONNECTING PLUG(12-PIN)
	155-2270	[1]	KIT-CONNECTING PLUG(2-PIN)
			(EACH PLUG KIT INCLUDE PLUG AS & WEDGE)
	8T-8737	[26]	PLUG-SEAL
14.	229-8400	[1]	HARNESS AS-CONTROL(PROPEL)
	155-2270	[2]	KIT-CONNECTING PLUG(2-PIN)
			(EACH INCLUDE PLUG AS & WEDGE)
	102-8802	[3]	KIT-RECEPTACLE(2-PIN)
	102-8805	[1]	KIT-RECEPTACLE(6-PIN)
	102-8806	[1]	KIT-RECEPTACLE(8-PIN)
	102-8801	[3]	KIT-RECEPTACLE(12-PIN)
			(EACH RECEPTACLE KIT INCLUDE RECEPTACLE AS & WEDGE)
	6R-0146	[8]	SEAL-TERMINAL
	8C-6354	[1]	CAP-RECEPTACLE(ET CONNECTOR)
	8T-8737	[18]	PLUG-SEAL
	8T-9834	[1]	PLUG AS-CONNECTOR(40-PIN)
	3E-4367	[1]	RING-RETAINING
	3E-8557M	[1]	BOLT(M5X0.8X39.37-MM)
	9X-3132	[2]	SEAL-CONNECTOR(40-PIN)
15.	121-4201	[1]	HARNESS AS-CONTROL(CONVEYOR)
	155-2265	[1]	KIT-CONNECTING PLUG(8-PIN)
	155-2260	[1]	KIT-CONNECTING PLUG(3-PIN)
	155-2270	[19]	KIT-CONNECTING PLUG(2-PIN)
			(EACH PLUG KIT INCLUDE PLUG AS & WEDGE)
	102-8802	[6]	KIT-RECEPTACLE(2-PIN)
	102-8804	[2]	KIT-RECEPTACLE(4-PIN)
	102-8801	[3]	KIT-RECEPTACLE(12-PIN)
			(EACH RECEPTACLE KIT INCLUDE RECEPTACLE AS & WEDGE)
	8T-8737	[16]	PLUG-SEAL
	8T-9834	[1]	PLUG AS-CONNECTOR(40-PIN)
	3E-4367	[1]	RING-RETAINING
	3E-8557M	[1]	BOLT(M5X0.8X39.37-MM)
	9X-3132	[2]	SEAL-CONNECTOR(40-PIN)
	9P-9057	[1]	DIODE-RECTIFIER
	9X-1054	[1]	PLUG AS-CONNECTOR(4-PIN)
16.	5S-7349	[2]	BOLT(1/4-20X0.5-IN)
17.	154-9598Y	[1]	PANEL GP-INSTRUMENT
18.	154-9599Y	[1]	BOX GP-JUNCTION
19.	217-4546	[1]	CONTROL GP-CONVEYOR ELECTRONIC
	116-6221	[1]	FILM-INFORMATION(CONVEYOR ECM)
20.	230-2442	[1]	CONTROL GP-PROPEL ELECTRONIC
21.	239-5250Y	[1]	WIRING GP-POWER TRAIN(PROPEL OVERRIDE)
22.	122-9309Y	[4]	BUFFER GP-SENSOR(5000-HZ PWM)
23.	119-3344	[1]	WIRE AS
24.	119-3263	[1]	WIRE AS
25.	119-3264	[2]	WIRE AS
26.	119-3265	[1]	WIRE AS
27.	119-3267	[1]	WIRE AS
28.	119-3268	[1]	WIRE AS
29.	102-8802	[1]	KIT-RECEPTACLE(2-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
30.	3E-3365	[1]	WEDGE-RECEPTACLE LOCK(2-PIN)
31.	186-3735	[2]	PIN-CONNECTOR(16-GA TO 18-GA)
32.	124-5929	[1]	PLATE-MOUNTING
33.	3E-5239	[1]	RELAY AS(24-VOLT)(HYD OIL LEVEL)
34.	3S-2093	[7]	STRAP-CABLE
35.	4M-5281	[1]	BOLT(1/4-20X0.75-IN)
36.	8T-4205	[21]	WASHER-HARD(7.2X14.5X2-MM THK)
37.	3E-9865	[1]	LOCKNUT(1/4-20-THD)
38.	134-1495	[1]	PLATE
39.	4L-6454	[10]	BOLT(3/8-16X1-IN)
40.	8T-4896	[17]	WASHER-HARD(10.2X18.5X2.5-MM THK)
41.	6V-8801	[10]	NUT(3/8-16-THD)
42.	8T-4224	[15]	WASHER-HARD(8.8X16X2-MM THK)
43.	6V-8189	[6]	NUT(5/16-18-THD)
44.	9X-1386E		SLEEVE(25CM)
45.	4M-6425	[7]	BOLT(5/16-18X1-IN)
46.	8T-8908	[2]	BOLT(1/4-20X1-IN)
47.	4S-4455	[5]	CLIP
48.	8T-4138M	[14]	BOLT(M6X1X20-MM)
49.	121-0386	[1]	MOUNT
50.	6V-2480	[4]	SCREW(4-40X0.5-IN)
51.	6B-4540	[4]	NUT(4-40-THD)
52.	9B-1117	[4]	LOCKWASHER
53.	7K-1181	[50]	STRAP-CABLE
54.	4P-7581	[3]	CLIP(LADDER)
55.	6T-1767	[1]	SWITCH GP-TOGGLE(PROPEL-CONTROL)
56.	6T-1767	[1]	SWITCH GP-TOGGLE(PROPEL DISPLAY)
			(EACH SWITCH GP INCLUDES)
	3L-8187	[6]	LOCKWASHER(3.7X7.24X.48MM THK)
	6T-3631	[2]	NUT-HEX(15/32-32-THD)
	6T-3632	[1]	LOCKWASHER(11.96X15.08X.53MM THK)
	6T-3633	[1]	RING-LOCKING
	6V-8374	[6]	SCREW-MACHINE(6-32X0.25-IN)
57.	4M-0061	[4]	BOLT(5/16-18X0.75-IN)
58.	4B-2047	[4]	NUT(10-24-THD)
59.	3B-4502	[4]	LOCKWASHER
60.	6V-8185	[10]	NUT(1/4-20-THD)
61.	9X-6165	[8]	WASHER(6.5X22X2.5-MM THK)
62.	4P-8134	[2]	CLIP(LADDER)
63.	7X-7877E		STRIP-EDGE(40CM)
64.	155-2651Y	[1]	DISTRIBUTOR GP-ELECTRONIC
65.	8T-9364	[2]	BOLT(1/4-20X0.625-IN)
66.	9B-7237	[3]	BOLT(3/8-16X1.25-IN)
67.	5P-4115	[2]	WASHER-HARD(7.2X19X2-MM THK)
68.	5P-1075	[1]	WASHER-HARD(10.2X22.5X3-MM THK)
69.	132-5789	[9]	CLIP
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

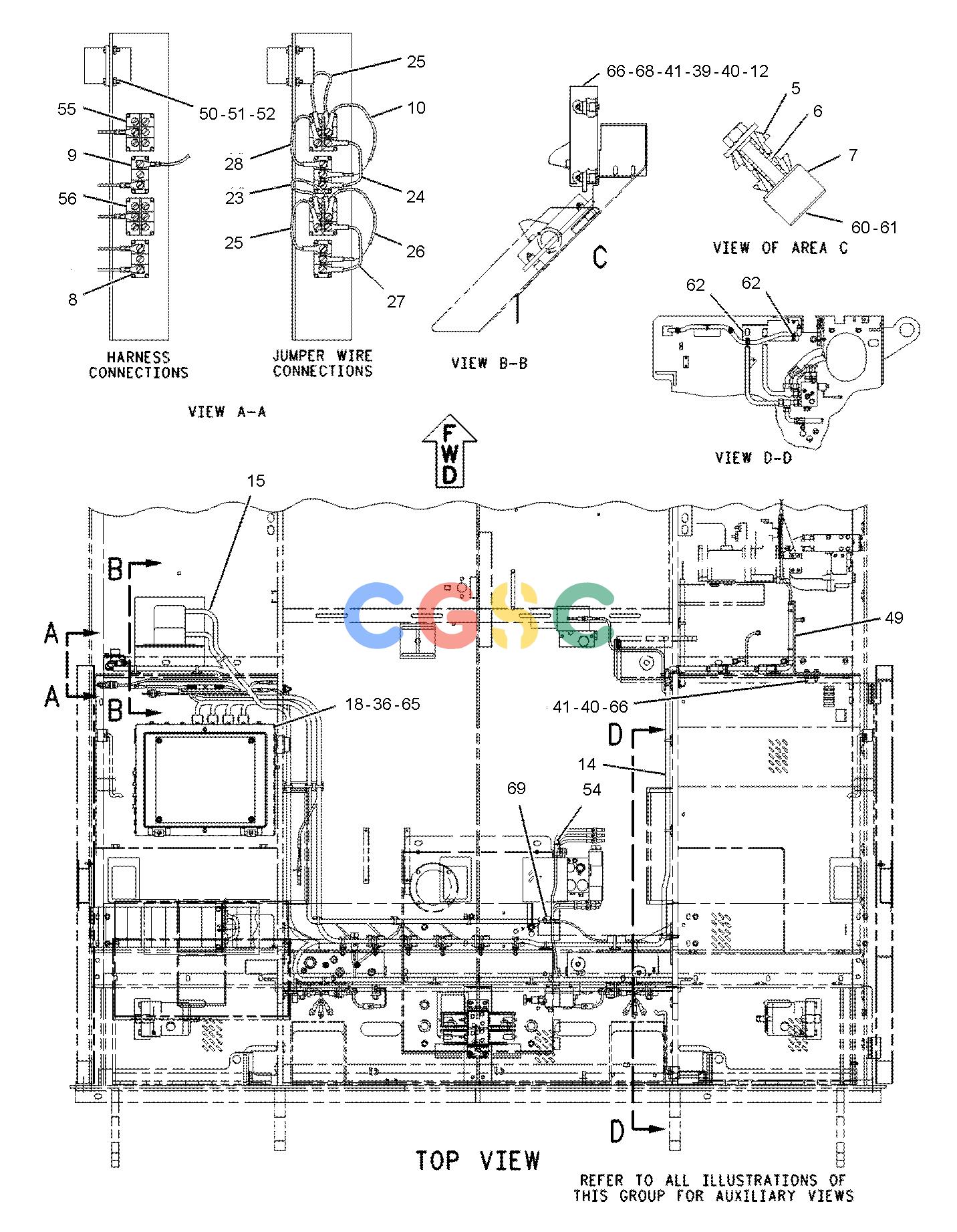

卡特零件查询（AP-1000B） 230-5405: INSTALLATION GP-CONTROLS
