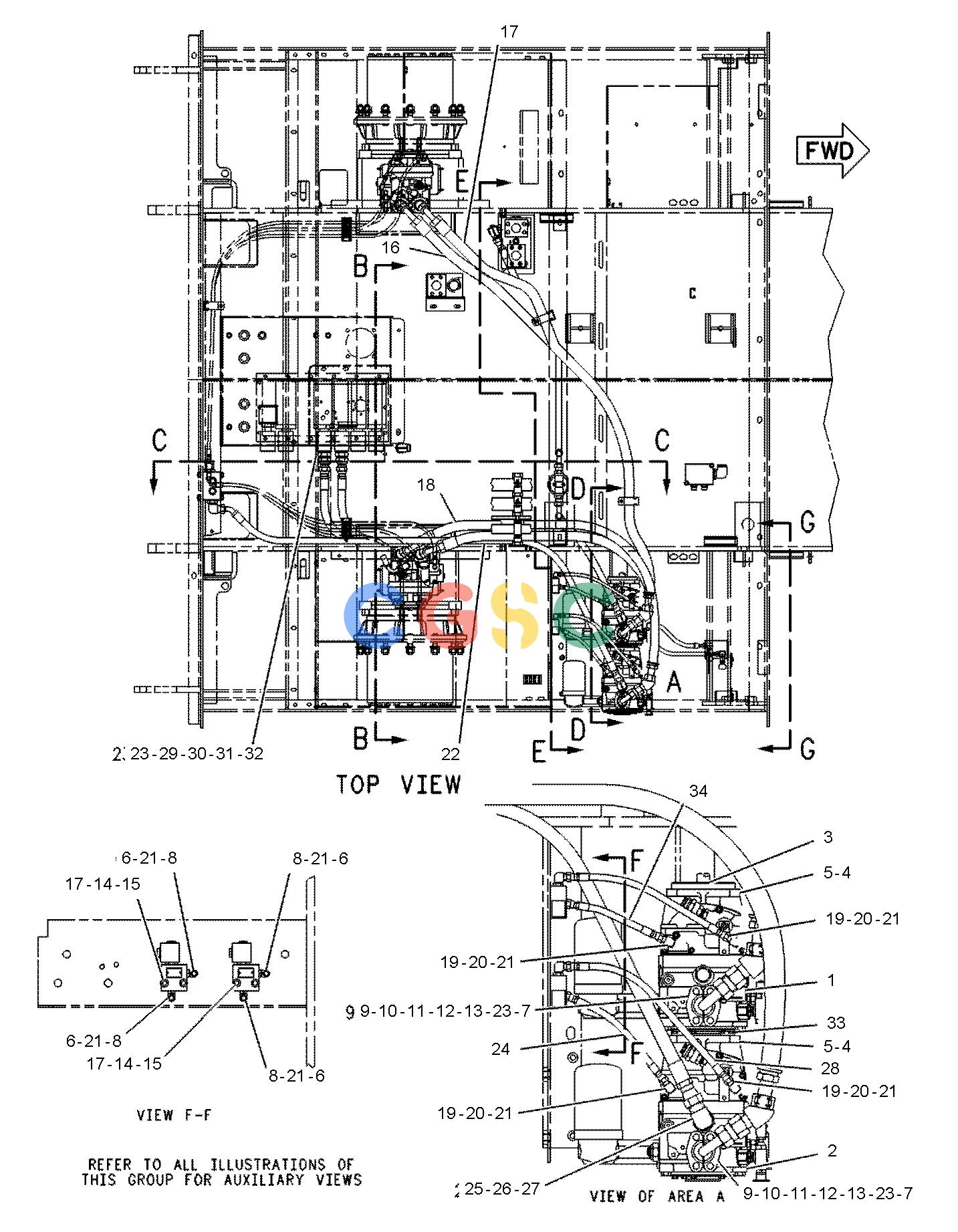

Pos.	Part No	Qty	Parts name
1.	105-8880Y	[1]	PUMP GP-PISTON
2.	105-8881Y	[1]	PUMP GP-PISTON
3.	031-4392	[1]	SEAL-O-RING
4.	8T-8917	[8]	BOLT(1/2-13X1.25-IN)
5.	8T-4223	[8]	WASHER-HARD(13.5X25.5X3-MM THK)
6.	6V-8627	[4]	ELBOW
7.	142-0038	[2]	ELBOW
8.	3J-1907	[4]	SEAL-O-RING
9.	7X-9733	[2]	FITTING
10.	5E-8841	[4]	FLANGE-SPLIT
11.	4F-7391	[2]	SEAL-O-RING
12.	8T-5360	[8]	WASHER(12X22.5X2.5-MM THK)
13.	8C-6877	[8]	BOLT(7/16-14X1.75-IN)
14.	7X-0265	[4]	BOLT(1/4-20X2.75-IN)
15.	5P-4115	[4]	WASHER-HARD(7.2X19X2-MM THK)
16.	149-0552I	[1]	HOSE AS
17.	149-0553	[1]	HOSE AS
18.	152-6855	[1]	HOSE AS
19.	6V-8628	[4]	ELBOW
20.	3J-7354	[4]	SEAL-O-RING
21.	4J-5477	[8]	SEAL-O-RING
22.	149-0555	[1]	HOSE AS
23.	5K-9090	[6]	SEAL-O-RING
24.	130-3913I	[1]	HOSE AS
25.	6V-9007	[1]	ELBOW
26.	6V-9746	[1]	SEAL-O-RING
27.	3D-2824	[1]	SEAL-O-RING
28.	130-3914I	[1]	HOSE AS
29.	109-3657	[2]	CONNECTOR
30.	6V-8948	[2]	REDUCER
31.	6K-6307	[2]	SEAL-O-RING
32.	6V-8400	[2]	SEAL-O-RING
33.	7J-6285	[1]	SEAL-O-RING
34.	6Y-0536I	[1]	HOSE AS
35.	138-7796	[4]	ELBOW
36.	4J-0520	[4]	SEAL-O-RING
37.	5P-8244	[16]	WASHER-HARD(12X22.5X2.5-MM THK)
38.	5P-7972	[16]	BOLT-12 POINT HEAD(7/16-14X1.75-IN)
39.	8T-4223	[8]	WASHER-HARD(13.5X25.5X3-MM THK)
40.	120-8692Y	[2]	MOTOR GP-PISTON
41.	7J-6285	[2]	SEAL-O-RING
42.	6V-8638	[1]	CONNECTOR
43.	6V-8721	[1]	ELBOW
44.	5E-8841	[8]	FLANGE-SPLIT
45.	6V-8398	[3]	SEAL-O-RING
46.	7M-8485	[1]	SEAL-O-RING
47.	6V-9746	[1]	SEAL-O-RING
48.	6V-9851	[1]	ELBOW
49.	5P-2566	[8]	BOLT(1/2-13X1.5-IN)
50.	2M-9780	[2]	SEAL-O-RING
51.	5K-9090	[4]	SEAL-O-RING
52.	6V-9182	[1]	ELBOW
53.	8C-1020	[8]	CLAMP-TUBE
54.	132-2453	[1]	UNION
55.	6V-8397	[1]	SEAL-O-RING
56.	6V-9001	[1]	ELBOW
57.	142-0038	[1]	ELBOW
58.	8T-5429	[1]	ELBOW
59.	6V-3965	[2]	FITTING(QUICK DISCONNECT)
60.	6V-0852	[2]	CAP-DUST
61.	3J-1907	[3]	SEAL-O-RING
62.	7X-9733	[1]	FITTING
63.	5E-8841	[4]	FLANGE-SPLIT
64.	4F-7391	[1]	SEAL-O-RING
65.	8T-5360	[4]	WASHER(12X22.5X2.5-MM THK)
66.	8C-6877	[4]	BOLT(7/16-14X1.75-IN)
67.	6V-8637	[2]	CONNECTOR
68.	6V-9854	[1]	ELBOW(SWIVEL)
69.	128-2482Y	[1]	FILTER GP-OIL
70.	4M-5281	[2]	BOLT(1/4-20X0.75-IN)
71.	6V-8398	[1]	SEAL-O-RING
72.	8T-4205	[2]	WASHER-HARD(7.2X14.5X2-MM THK)
73.	138-7796	[1]	ELBOW
74.	6V-3378	[1]	CLIP
75.	144-0895	[2]	ELBOW
76.	5K-9090	[6]	SEAL-O-RING
77.	7M-8485	[3]	SEAL-O-RING
78.	6V-9007	[1]	ELBOW
79.	6V-9746	[5]	SEAL-O-RING
80.	3D-2824	[5]	SEAL-O-RING
81.	6V-9182	[1]	ELBOW
82.	6V-8801	[2]	NUT(3/8-16-THD)
83.	7D-7233	[2]	CLIP
84.	130-5832I	[1]	HOSE AS
85.	130-6373I	[1]	HOSE AS
86.	4S-4455	[2]	CLIP
87.	5P-7972	[4]	BOLT-12 POINT HEAD(7/16-14X1.75-IN)
88.	5P-8244	[4]	WASHER-HARD(12X22.5X2.5-MM THK)
89.	4J-0520	[1]	SEAL-O-RING
90.	8V-0408	[2]	CLAMP
91.	7V-6234	[1]	PLATE
92.	5P-2955	[1]	BOLT(5/16-18X2.5-IN)
93.	153-9665I	[1]	HOSE AS
94.	131-7993I	[1]	HOSE AS
95.	130-5833I	[1]	HOSE AS
96.	130-0080	[1]	BRACKET AS
97.	5E-9375	[2]	CLAMP
98.	8C-1020	[6]	CLAMP-TUBE
99.	5M-3062	[1]	BOLT(3/8-16X0.75-IN)
100.	6V-9004	[1]	ELBOW
101.	130-5839I	[1]	HOSE AS
102.	131-3168I	[1]	HOSE AS
103.	8T-4896	[1]	WASHER-HARD(10.2X18.5X2.5-MM THK)
104.	6R-3744	[1]	CLAMP AS
105.	143-0378I	[1]	HOSE AS
106.	143-0379I	[1]	HOSE AS
107.	6V-8627	[2]	ELBOW
108.	8T-3311	[2]	TEE
109.	113-0782	[2]	FITTING-ORIFICE
110.	6V-3965	[4]	FITTING(QUICK DISCONNECT)
111.	6V-0852	[4]	CAP-DUST
112.	3J-1907	[10]	SEAL-O-RING
113.	6V-8980	[2]	ELBOW
114.	6V-8397	[6]	SEAL-O-RING
115.	143-0376I	[1]	HOSE AS
116.	143-0377I	[1]	HOSE AS
117.	8C-8988	[2]	ELBOW
118.	132-2453	[2]	UNION
119.	6V-9168	[2]	NUT(11/16-16-THD)
120.	7D-7233	[1]	CLIP
121.	109-3655Y	[2]	VALVE GP-SOLENOID
122.	5E-9375	[1]	CLAMP
123.	4J-5477	[6]	SEAL-O-RING
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

卡特零件查询（AP-1000B） 115-8334: LINES GP-PROPEL
