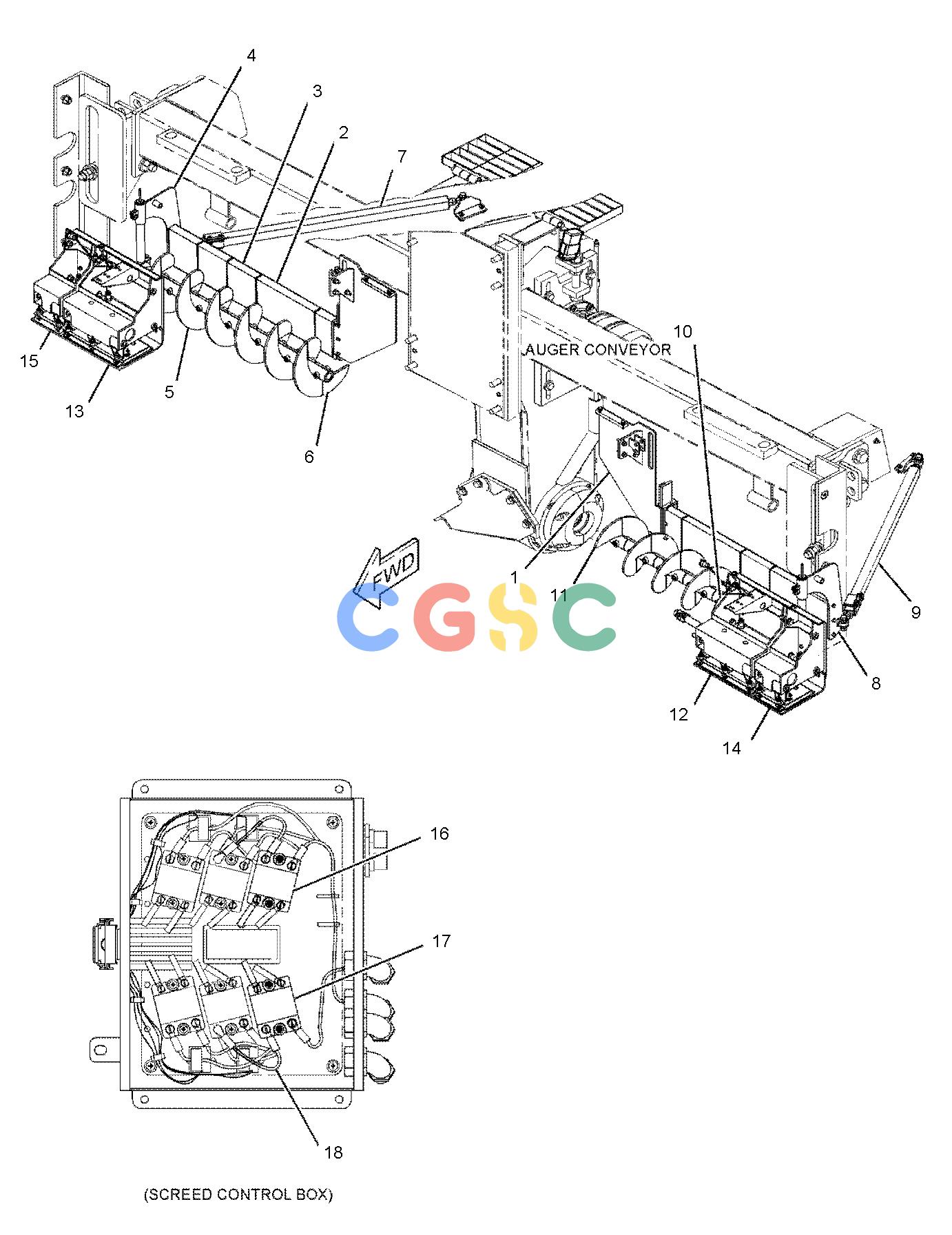

| 1. | 177-6816Y | [1] | EXTENSION GP-SCREED | |
| 2. | 106-9715Y | [2] | EXTENSION GP-MAIN FRAME(2-FT) | |
| 3. | 106-9714Y | [6] | EXTENSION GP-MAIN FRAME(1-FT) | |
| 4. | 116-9509Y | [1] | BEARING GP-AUGER(LH) | |
| 5. | 5E-9808Y | [2] | EXTENSION GP-AUGER(1-FT, LH) | |
| 6. | 5E-9825Y | [2] | EXTENSION GP-AUGER(2-FT, LH) | |
| 7. | 169-5471Y | [1] | SUPPORT GP-FRAME(LH) | |
| 8. | 116-9509Y | [1] | BEARING GP-AUGER(RH) | |
| 9. | 169-5471Y | [1] | SUPPORT GP-FRAME(RH) | |
| 10. | 5E-9809Y | [2] | EXTENSION GP-AUGER(1-FT, RH) | |
| 11. | 5E-9826Y | [2] | EXTENSION GP-AUGER(2-FT, RH) | |
| 12. | 245-9084Y | [1] | EXTENSION GP-SCREED(ELECTRIC HEAT, W/VIB, 24-IN)(RH) | |
| 13. | 245-9084Y | [1] | EXTENSION GP-SCREED(ELECTRIC HEAT, W/VIB, 24-IN)(LH) | |
| 14. | 245-9083Y | [1] | EXTENSION GP-SCREED(ELECTRIC HEAT, 12-IN)(RH) | |
| 15. | 245-9083Y | [1] | EXTENSION GP-SCREED(ELECTRIC HEAT, 12-IN)(LH) | |
| 16. | 255-5011 | [1] | RELAY AS(24-VOLT)(EXTENDER, LH) | |
| 17. | 255-5011 | [1] | RELAY AS(24-VOLT)(EXTENDER, RH) | |
| 18. | 256-1131 | [2] | WIRE AS | |
| | | | |
| | 246-3318F | [1] | TUBE AS | |
| | 9U-3672F | [2] | PLUG AS | |
| | 3S-2093F | [4] | STRAP-CABLE | |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
