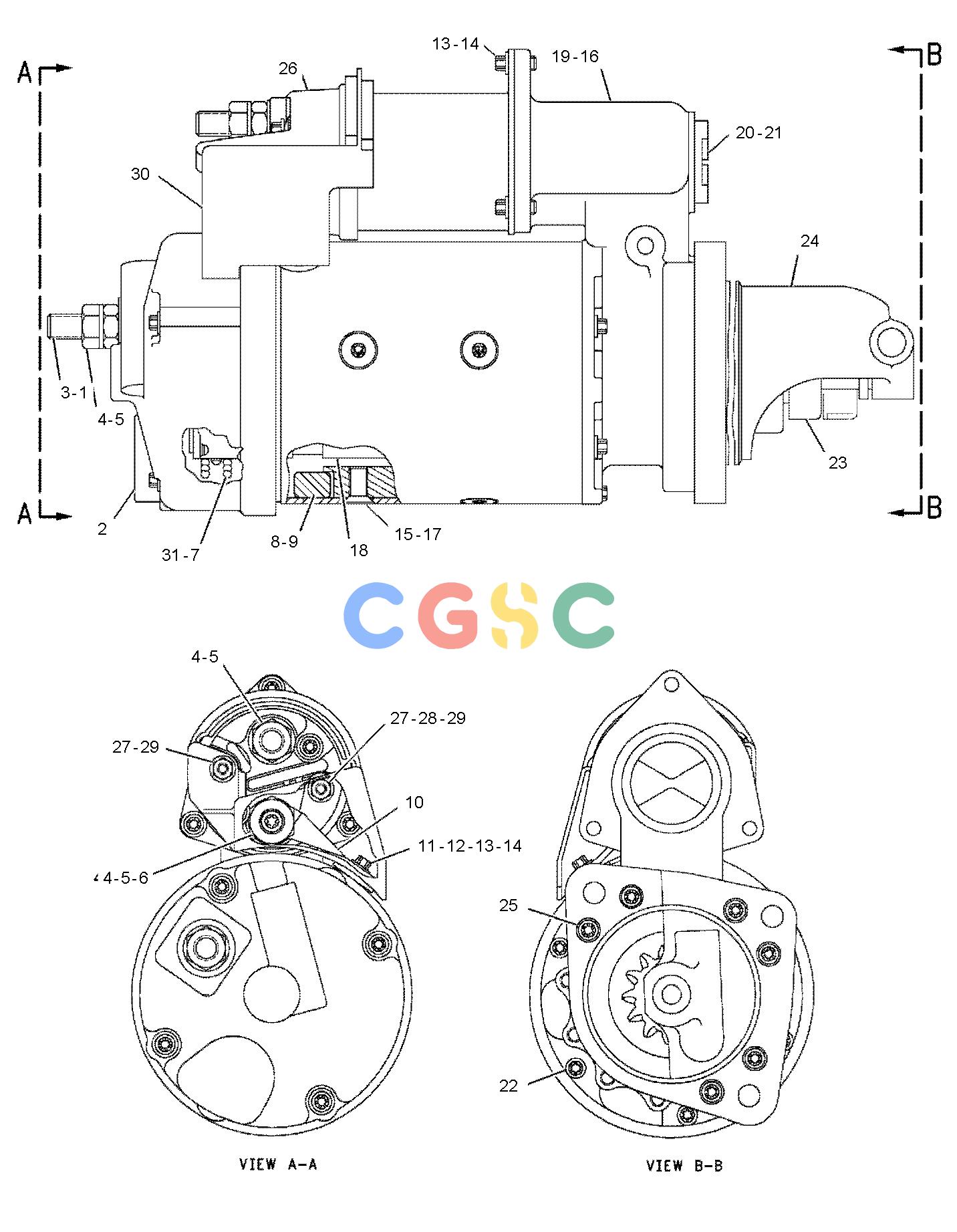

| 1. | 8T-9884 | [1] | KIT-INSULATOR(STARTING MOTOR) | |
| | | | (INCLUDES INSULATORS & BUSHING) |
| 2. | 106-7149 | [1] | HOUSING AS | |
| 3. | 102-9863 | [1] | TERMINAL AS | |
| 4. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 5. | 7X-0562 | [4] | WASHER-HARD(13.5X19X0.8-MM THK) | |
| 6. | 3E-7853 | [1] | TERMINAL | |
| 7. | 9X-4821 | [1] | PLATE AS | |
| 8. | 9X-4822 | [1] | COIL AS | |
| 9. | 7T-3454 | [1] | INSULATOR | |
| 10. | 9X-4271 | [1] | CONNECTOR | |
| 11. | 7T-3451 | [1] | KIT-INSULATOR(STARTING MOTOR) | |
| 12. | 8T-8569 | [1] | INSULATOR-TERMINAL | |
| 13. | 5S-7349 | [4] | BOLT(1/4-20X0.5-IN) | |
| 14. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 15. | 7X-1950 | [4] | SHOE-POLE | |
| 16. | 7X-1958 | [1] | KIT-LEVER(STARTING MOTOR) | |
| | | | (INCLUDES LEVER AS, SHAFT AS, GASKET, SEALS, RINGS, STOP & NUT) |
| 17. | 3R-8797 | [8] | SCREW & WASHER AS(3/8-24X0.72-IN) | |
| 18. | 7X-1951 | [1] | ARMATURE AS(24-VOLT) | |
| 19. | 7X-1952 | [1] | HOUSING AS-LEVER | |
| 20. | 4M-1831 | [1] | PLUG-LEVER HOUSING | |
| 21. | 7L-2894 | [1] | GASKET | |
| 22. | 0S-1597 | [5] | BOLT(1/4-28X1-IN) | |
| 23. | 7X-1953 | [1] | DRIVE AS-MOTOR | |
| 24. | 7X-1954 | [1] | HOUSING AS-DRIVE | |
| 25. | 7X-3373 | [6] | BOLT(5/16-18X0.88-IN) | |
| 26. | | [1] | KIT-SOLENOID(24-VOLT, STARTING MOTOR) |
| 27. | 6V-8378 | [2] | NUT(10-32-THD) | |
| 28. | 8F-1434 | [1] | LOCKWASHER | |
| 29. | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 30. | 9X-4824 | [1] | COVER-STARTING MOTOR | |
| 31. | 9X-4825 | [1] | KIT-BRUSH(24-VOLT) | |
| | | | (INCLUDES BRUSHES, SEAL, SCREWS & SPRINGS) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 9X-4270 | [1] | KIT-BUSHING(STARTING MOTOR) | |
| | | | (INCLUDES BUSHINGS, SEALS, CUPS, SPACER, STOP, PLUGS, GASKET, WASHERS, RING & SCREW AS) |
